Self CenteringVise

These contain cylindrical rollers capable of circulating within the block (orbital unit), enabling smooth linear motion on a flat surface.

Self-Centering Bore Clamps provide locating, internal clamping, and supporting in one unit, exerting force both radially and downward against a hardened support surface. This compact design uses an expanding Segmented Clamping Bushing to exert high clamping force with self-centering repeatability within .0002". These bore clamps are particularly suitable for clamping workpieces with machined bored holes and a support surface square to the hole axis.

2024324 — Barrel Distortion. Barrel distortion is common in wide-angle lenses and is characterized by the image appearing to bulge outwards from the ...

Tempering Colours ; 550, Dark Blue, 290 ; 530, Violet, 280 ; 520, Purple, 270 ; 500, Red Brown, 260.

self-centeringclampmechanism

Browse 35,300+ magnifying glass eye stock photos and images available, or search for magnifying glass eye icon to find more great stock photos and pictures.

Brands · FUJIFILM (39) · SONY (38) · Insta360 (31) · CANON (25) · NIKON (25) · Polaroid (24) · DJI (22) · AIDA Imaging (19)

May 30, 2022 — ... light sources using UV LEDs), to make sure they are actually outputting true 365nm UV light? Many UV LEDs (and light sources that use them) ...

Do not exceed the maximum operating pressure listed for the bore-diameter range or this will damage the drawbar. Avoid repeated clamping without the workpiece in place because this strains the vulcanized segment joints. Maximum operating temperature for the segmented bushing is 175°F.

Woman's hand holding a magnifying glass with eye inside. Retro style search sign and icon. Vintage engraving stylized drawing. Vector illustration

Portrait of a little boy holding up a large round magnifying glass to his face, making his eye look humourously large, while playing with friends in a summer park

Business topics -search, web template, header. Flat style modern outlined vector concept illustration. Young man looking forward and a woman with magnifying glass looking through it. Business metaphor

Two 1/4" BSPP ports, A for clamping, B for unclamping. For optional manifold mounting, use the A and B manifold ports underneath the clamp by unscrewing the sealing plugs. Do not use NPT fittings. These clamps also have a 1/8" BSPP port marked M for air connection when using the pneumatic seat check.

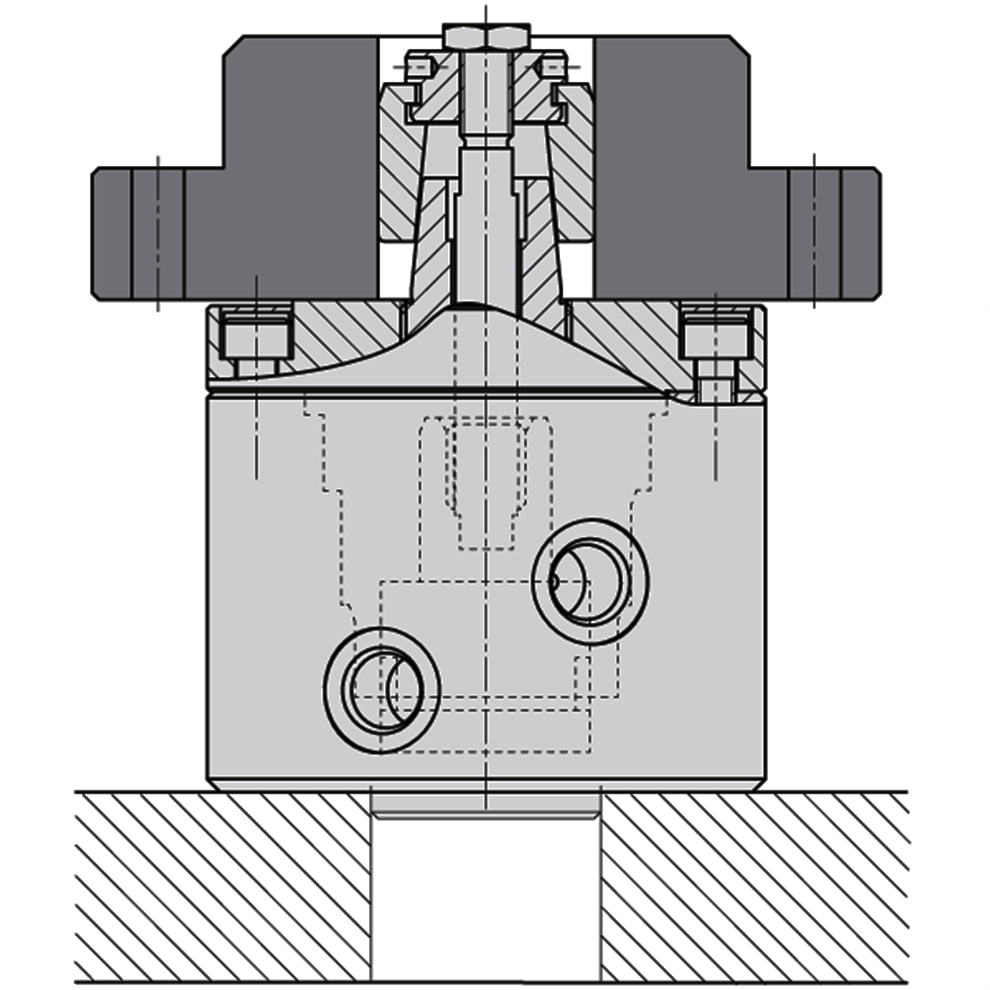

Self-Centering Bore Clamps are a combination of a double-acting pull-type cylinder and a segmented bushing which is pulled by a drawbar over a fixed cone. This causes the segmented bushing to expand radially to the bore diameter of the workpiece. The simultaneous axial movement forces the workpiece downward onto the hardened support surface of the housing. Downward clamping force is proportional to operating pressure and will vary somewhat depending on the friction coefficient within the bore.

Vector line icon set appropriate for web and print applications. Designed in 48 x 48 pixel square with 2px editable stroke. Pixel perfect.

Icons with binoculars. Hands holding magnifying glass, kaleiloscope, monocle and telescope. Concept of searching and looking into future. Cartoon flat vector collection isolated on white background

Item Material Heat Treat Finish Body Steel - - Piston and workpiece support Steel Case Hardened - Segmented Clamping Bushing Steel Case Hardened, with Vulcanized segment joints -

Dedicated controller; Motorized 10x zoom lens with programmable day/night filter; 1.5m USB cables. Specifications: Optical zoom: 5.1~47mm ...

With the Bore Clamp unclamped and the drawbar's lock nut removed, screw the end plug of the Segmented Clamping Bushing onto the drawbar. Check the bushing's diameter with a caliper and continue turning until the diameter is .004 to .008" less than the clamping diameter, to allow easy loading of the workpiece. Secure with the lock nut.

Self centeringchuck
