AOI Light
Product Details of AOI Light for Sale
-
Features:
-
1.Adopted high luminance straight -through LED, equally distribution.
2.With multiple angle, can control the luminance independently. Used in various applications.
3.Can customized different installation method and lamp beads angle.
-
Applications:
-
1.Mobile glass screen scratch inspection.
2.Silicon seal defect inspection.
3.PCB tin soldering inspection.
4.Battery tin soldering point inspection.
Illumination property diagram Uniformity (Relative irradiance)
Model：LTS-AOI160-RGB

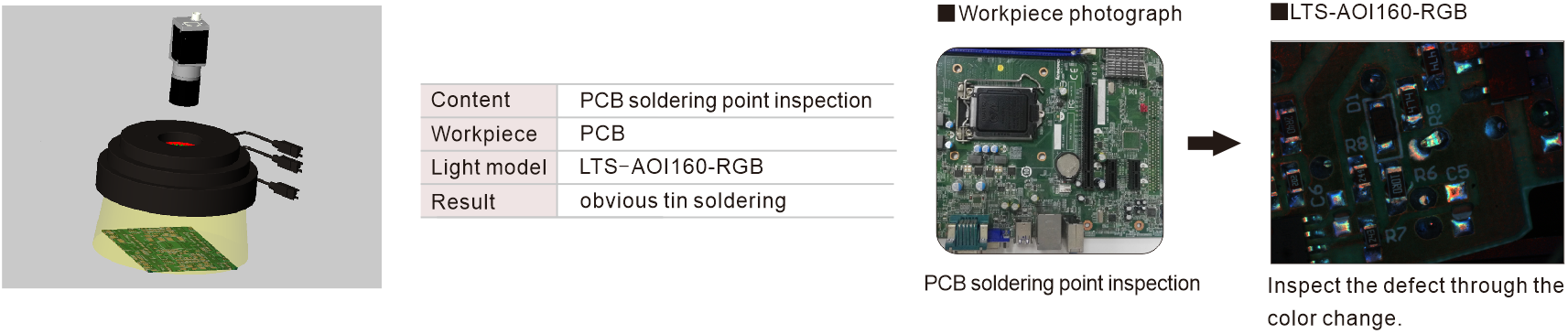

Imaging instance: PCB soldering point inspection
Coding rule
|
|
|
|
|
| LTS-AOI80-UV/W | .png) .png) |
Out dia. φ80,Inner Dia. φ24,Height 22mm | 24V | 5.1W |
| LTS-AOI92-W | |
Out dia. φ92,Inner Dia. φ35,Height 24mm | 24V | 4.4W |
| LTS-AOI100-RW |  |
Out dia. φ100,Inner Dia. φ20,Height 33mm | 24V | 6.2W |
| LTS-AOI122-RGB |   |
Out dia. φ122,Inner Dia. φ43,Height 55mm | 24V | 28.4W |
| LTS-AOI160-RGB | |
Out dia. φ160,Inner Dia. φ45,Height 55mm | 24V | 30.9W |
| LTS-AOI180-W | |
Out dia. φ180,Inner Dia. φ60,Height 90mm | 24V | 29.2W |
| LTS-AOI275-W | |
Out dia. φ275,Inner Dia. φ160,Height 60mm | 24V | 69.2W |
| * UV & IR light can be customized as required. | ||||
*If you need drawings, please contact the sales staff.
