High Power Ring Light (RNH)
Product Details of High Power Ring Light (RNH) for Sale
High Power Ring Light Industrial Machine Lighting
-
Features:
-
1.High power LED used, uniform arraying.
2.Triple luminance than common ring light.
3.Good thermal design, steady emitting, long life-span.
4.Dimension can be customized.
-
Applications:
-
1.Long distance Illumination.
2.High speed assembly line illumination.
3.Large area illumination.

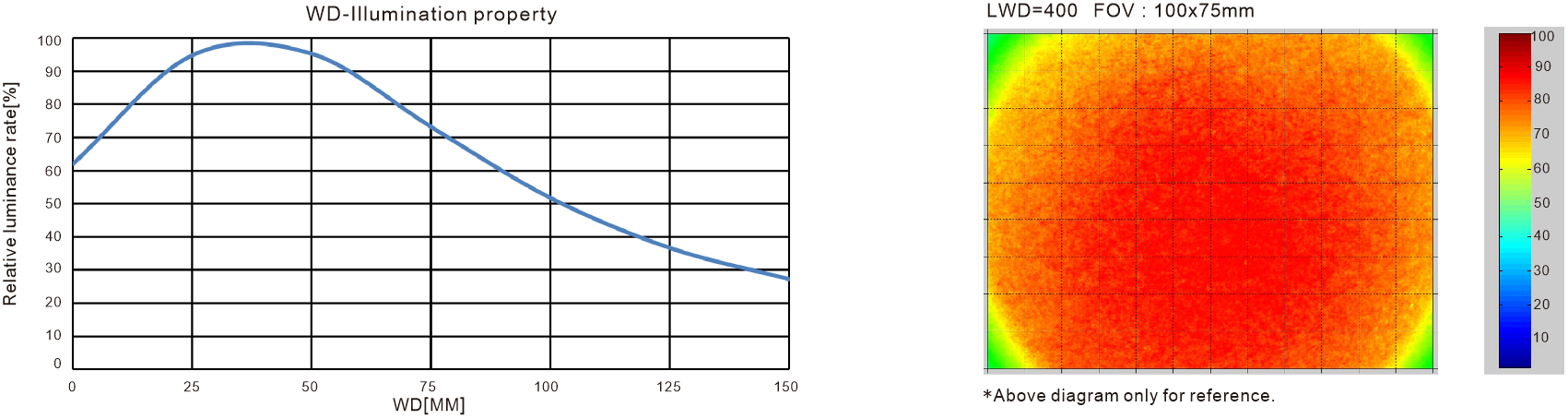

Illumination property diagram
Uniformity (Relative irradiance)
Model：LTS-RNH4590-W
Effect contrast photograph
High power ring light:LTS-RNH4590-W Ring light:LTS-RN5590-W
Imaging instance：PIN inspection
Coding rule
|
|
|
|
|
| LTS-RNH4590-BGW |   .png) |
Outer dia. φ45mm,Inner dia. φ13mm,Height 22mm | 24V | 3.2W |
| LTS-RNH8490-R/BGW |  / |
Outer dia. φ84mm,Inner dia. φ47mm,Height 23.5mm | 24V | 3.2W/6.3W |
| LTS-RNH10090-R/BGW | / |
Outer dia. φ100mm,Inner dia. φ60mm,Height 24mm | 24V | 6.3W/9.4W |
| LTS-RNH11090-R/BGW | / |
Outer dia. φ110mm,Inner dia. φ70mm,Height 24mm | 24V | 6.3W/9.4W |
| LTS-RNH12090-R/BGW | / |
Outer dia. φ120mm,Inner dia. φ70mm,Height 33mm | 24V | 6.3W/9.4W |
| LTS-RNH15090-R/BGW | / |
Outer dia. φ150mm,Inner dia. φ100mm,Height 33mm | 24V | 6.3W/12.5W |
| LTS-RNH22090-R/BGW | / |
Outer dia. φ220mm,Inner dia. φ172mm,Height 24mm | 24V | 12.5W/18.8W |
| LTS-RNH30090-R/BGW | / |
Outer dia. φ300mm,Inner dia. φ252mm,Height 24mm | 24V | 15.6W/25.0W |
| * UV & IR light can be customized as required. | ||||
*If you need drawings, please contact the sales staff.
