Multi-angle Ring Light
Product Details of Multi-angle Ring Light for Sale
-
Features:
-
1.Multiple angle can be controlled independently, compact structure.
2.Can customized that multiple color can be controlled independently.
-
Applications:
-
1.Glass surface scratch inspection, multiple characteristics of the microscope inspection

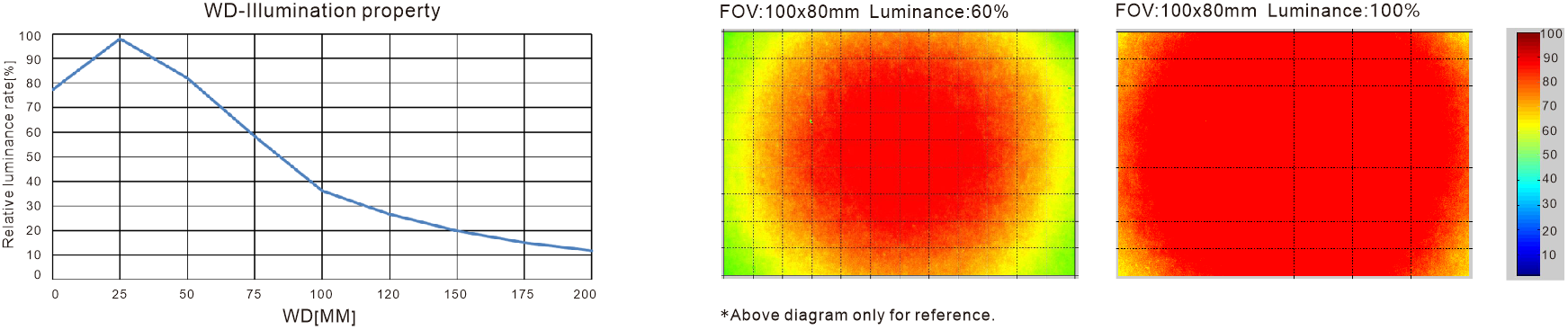

Illumination property diagram Uniformity (Relative irradiance)
Model：LTS-RNMU225-W

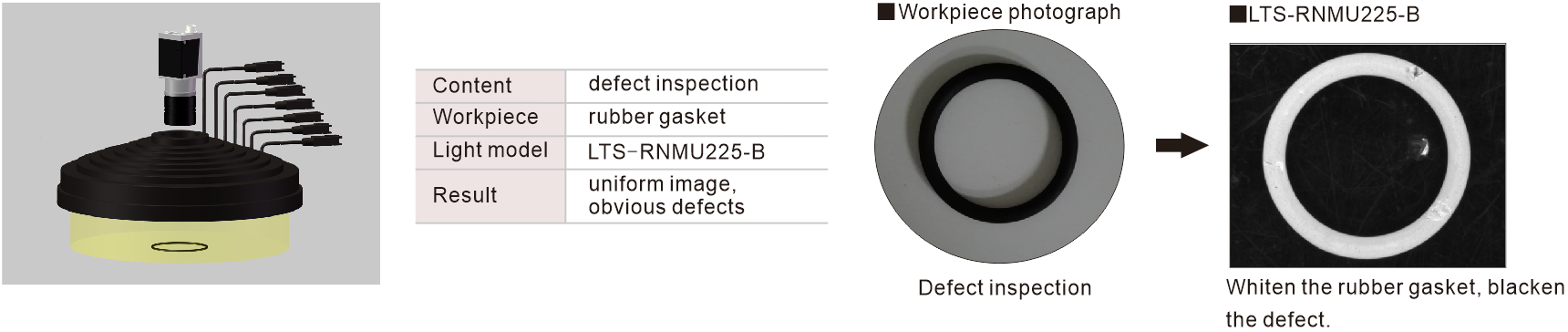

Imaging instance: defect inspection
Coding rule
Model |
Color |
Dimension |
Voltage |
Power |
| LTS-RNMU50-B |  |
Out dia. φ49,Inner Dia. φ22,Height 50mm | 24V | 3.1W |
| LTS-RNMU60-W | .png) |
Out dia. φ60,Inner Dia. φ16,Height 26mm | 24V | 3.6W |
| LTS-RNMU75-RGBB |   |
Out dia. φ80,Inner Dia. φ25,Height 38.5mm | 24V | 7.1W |
| LTS-RNMU80-RRBB | |
Out dia. φ203.2,Inner Dia. φ95.25,Height 40mm | 24V | 5.2W |
| LTS-RNMU120-W | |
Out dia. φ120,Inner Dia. φ40,Height 45mm | 24V | 10.5W |
| LTS-RNMU150-W | |
Out dia. φ150,Inner Dia. φ60,Height 53mm | 24V | 32.1W |
| LTS-RNMU180-W | |
Out dia. φ180,Inner Dia. φ116,Height 50mm | 24V | 36.8W |
| LTS-RNMU203-W | |
Out dia. φ203.2,Inner Dia. φ95.25,Height 40mm | 24V | 18.8W |
| LTS-RNMU225-W | |
Out dia. φ225,Inner Dia. φ35,Height 64mm | 24V | 31.4W |
| * UV & IR light can be customized as required. | ||||
*If you need drawings, please contact the sales staff.
