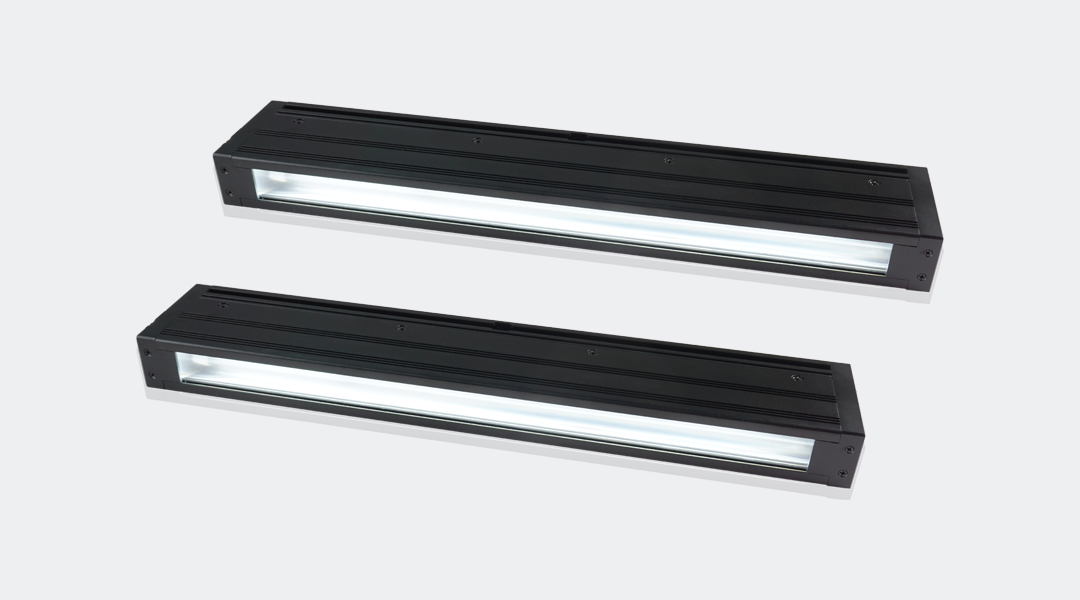

4LINL is a small-sized, high-brightness line scan light newly developed by LOTS. Illuminance: 500,000 Lx. Volume: Width only 30mm, height 60mm.

Features：
1.High-brightness and uniform, with excellent parallelism.
2.Compact in size, with a width of only 30mm and a height of 60mm
3.The dust removal detection effect is relatively good, natural cooling.
4.High cost performance and can be customized to different lengths.
5.Suitable for use in narrow Spaces.

Applications：
1.Fabric pattern lines inspection
2.Dust inspection on the surface of glass panels
3.Contour edge inspection
4.Dust-free environment inspection

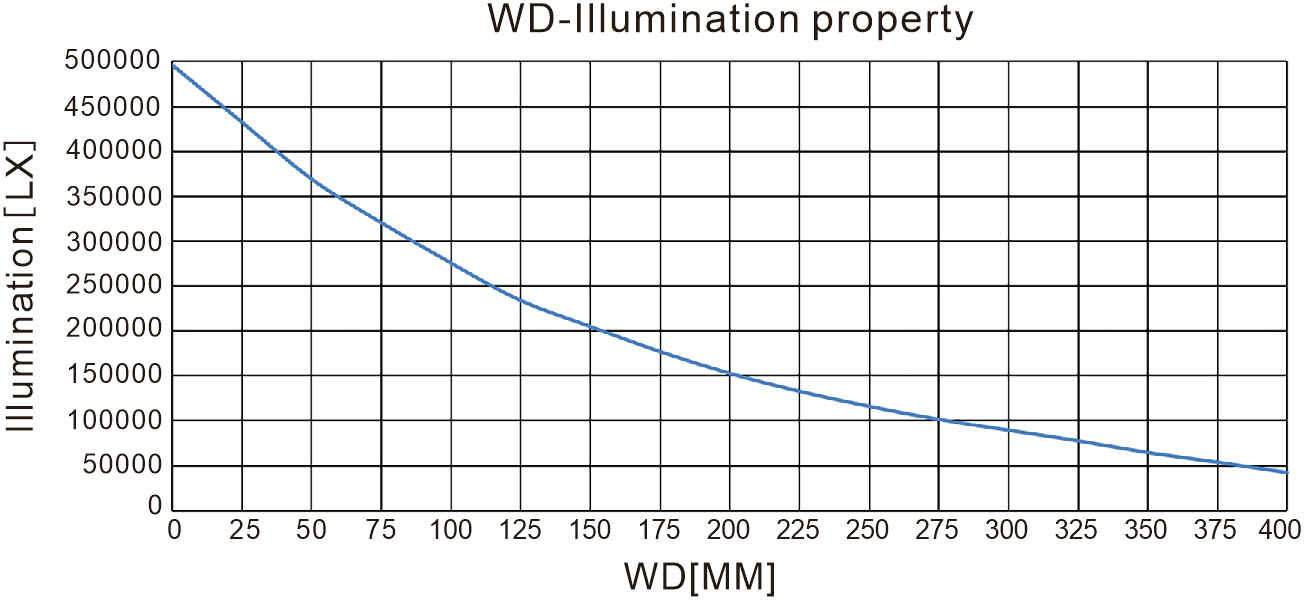

Illumination property diagram
Model：LTS-4LINL300-W

*Above diagram only for reference.

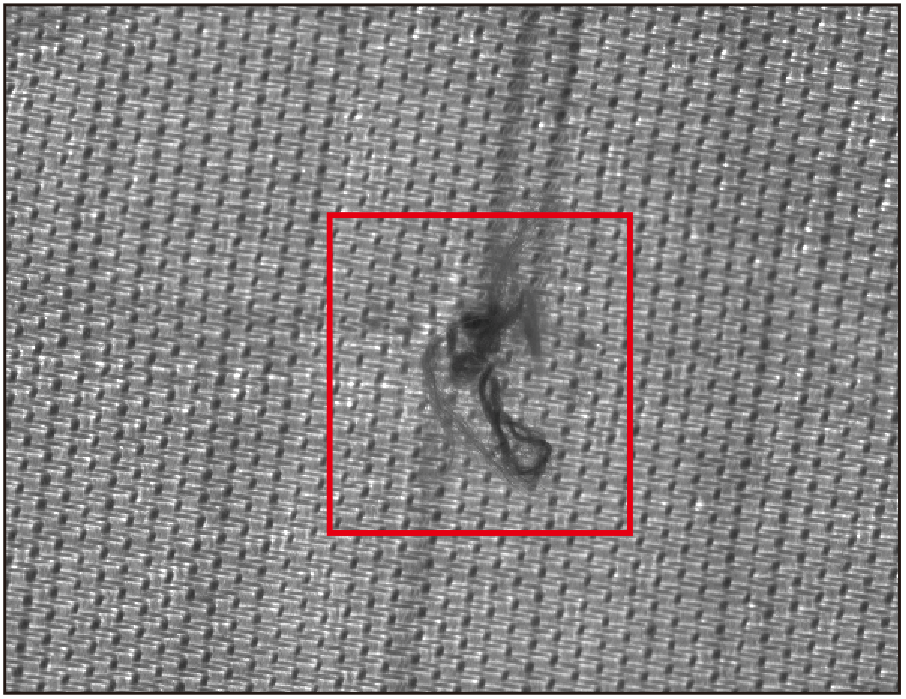

Imaging instance:inspection of surface defects in fabrics

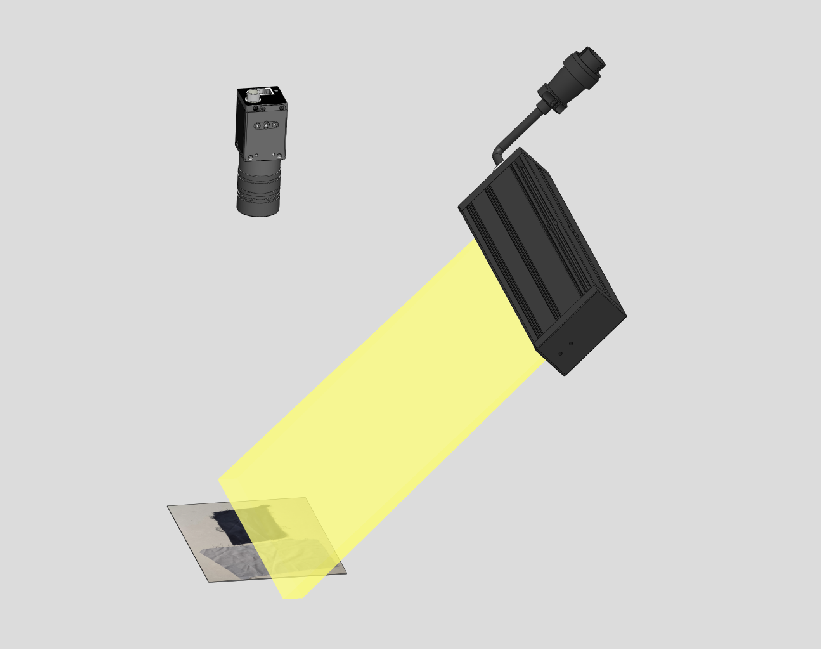

                                                   Inspection diagram

Light model：LTS-4LINL300-W
The light is tilted and illuminated, ensuring uniform illumination on the product surface, with obvious surface burrs and a distinct contrast.

Object

Sample

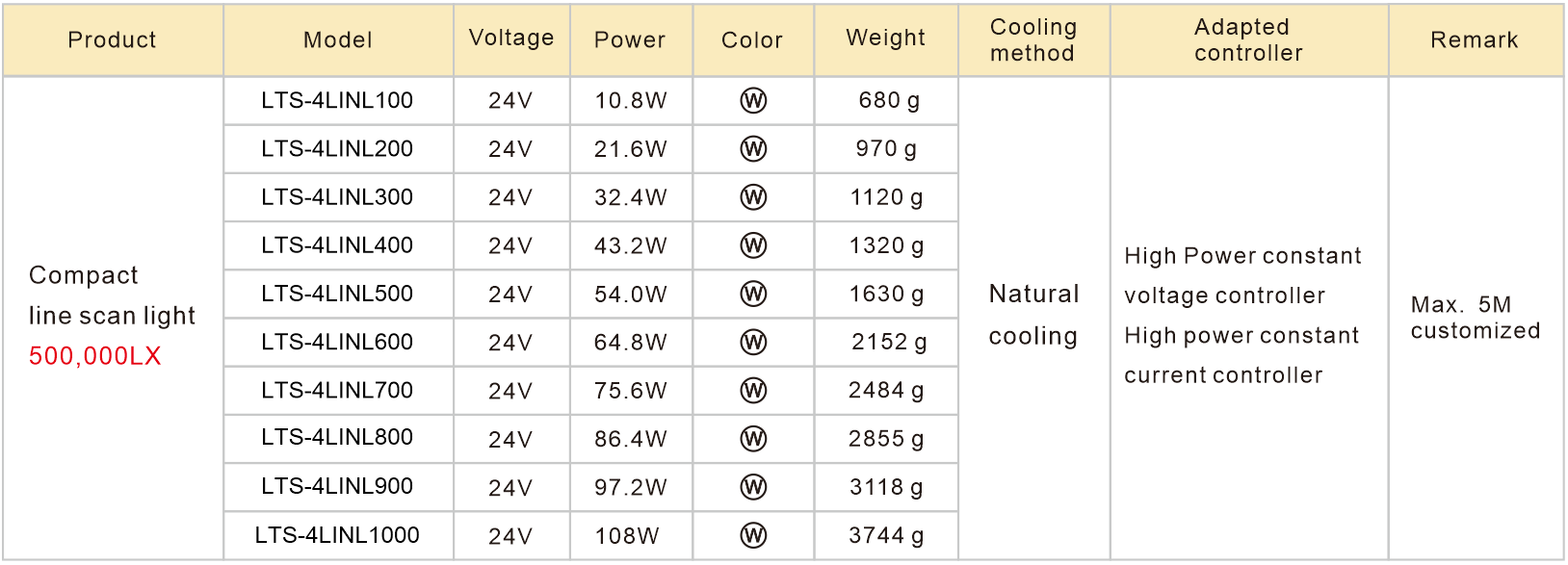

Light Parameters

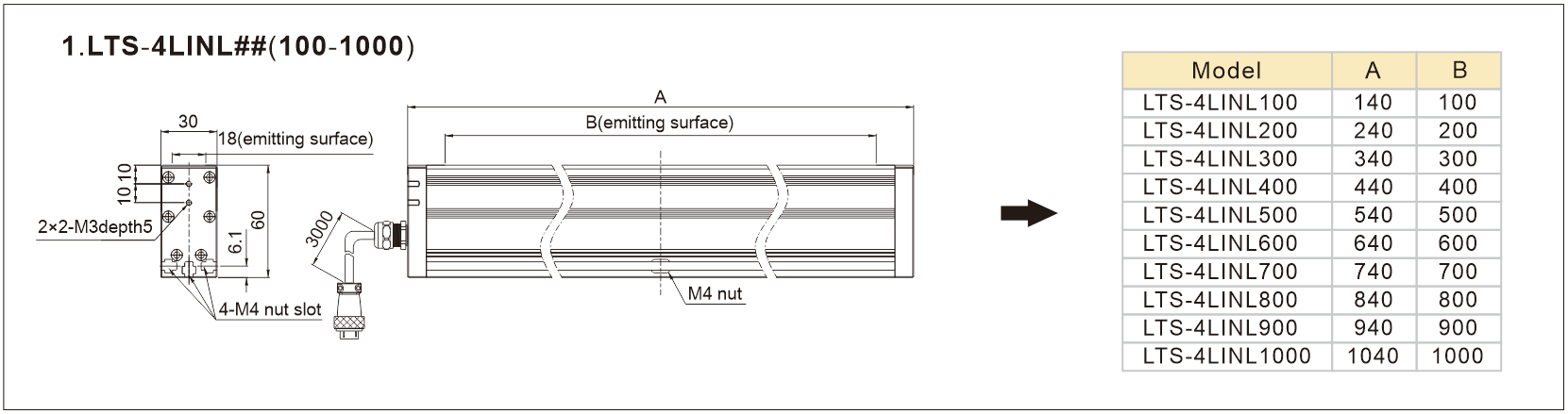

Boundary dimension (mm)
