The images below, (Image 8A) and (Image 8B), were used for an application that requires counting the pins of a connector. As you can see, the bright field lighting on the left does not produce a clear image, but the dark field lighting on the right does.

202078 — The green colour is due to a layer of something called 'solder mask'. Solder mask is used to cover up all the exposed copper tracks and ground ...

20W LED Black Case Bulkhead Backlite Security Wall Mounted Outdoor IP65 Light UK ; LED Lighting Ltd ( ; Approx. $12.72. + $21.28 shipping ; People want this. 70 ...

LEDillumination

Structured-light systems are simple and effective tools to acquire 3D models. Built with off-the-shelf components, a data projector and a camera, they are easy to deploy and compare in precision with expensive laser scanners. But such a high precision is only possible if camera and projector are both accurately calibrated. Robust calibration methods are well established for cameras but, while cameras and projectors can both be described with the same mathematical model, it is not clear how to adapt these methods to projectors. In consequence, many of the proposed projector calibration techniques make use of a simplified model, neglecting lens distortion, resulting in loss of precision. In this paper, we present a novel method to estimate the image coordinates of 3D points in the projector image plane. The method relies on an uncalibrated camera and makes use of local homographies to reach sub-pixel precision. As a result, any camera model can be used to describe the projector, including the extended pinhole model with radial and tangential distortion coefficients, or even those with more complex lens distortion models.

Enhance visibility with our 17 Inch Identification Red LED Light Bar. Perfect for safety and identification, this durable light bar ensures you're seen.

Backlighting works by having the camera pointed directly at the backlight in a perpendicular mount. The object you are inspecting is positioned between the camera and the backlight (Image 4A). This lighting technique is the most robust because it creates a black target on a white background (Image 4B).

Dome LightMachine Vision

Bandpass filters are more effective at frequency selectivity and can provide sharper roll-off characteristics compared to low-pass filters. On the other hand, ...

Smart cameras and industrial cameras and the two distinct approaches in machine vision that vary in solutions and price ranges

Machine visionBacklight

Dark field lighting is required to be very close to the part, usually within an inch. The mounting angle of the dark field LEDs needs to be at least 45 degrees or more to create the desired effect (Image 3A).  In short, it has the opposite effect of Bright Field lighting, meaning the surface or field is dark, and the indentations or bumps will be much brighter (Image 3B).

This example (Image 10A), (Image 10B), and (Image 10C) highlight different lighting techniques on the same object. In the (Image 10A) image, backlighting is used to measure the smaller hole diameter. In the image (Image 10B), dome lighting is used to inspect the upper hole's taper in reference to the lower hole. In (Image 10C) dark field lighting is used for optical character recognition “OCR” on the object. Each of these could be viewed as positive or negative, depending on your goal.

PureEdge Lighting develops and manufactures contemporary, specification grade architectural lighting which is energy efficient.

Dark field lighting

In order to add a free sample product to the cart we will need to remove all the normal products from the cart. Are you sure you want to continue

Diffused dome lighting, aka the salad bowl light, works by having a hole at the top of the salad bowl where the camera is mounted and the LEDs are mounted down at the rim of the salad bowl, pointing straight up, which causes the light to reflect off of the curved surface of the salad bowl. It creates a very uniform reflection (Image 5A).  Diffused dome lighting is used when the object you are inspecting is curved or non-uniform (Image 5B). After applying this lighting technique to an uneven surface or texture, hotspots, and other sharp details are deemphasized, creating a matte finish to the image (Image 5C).

This next example (Image 9A) and (Image 9B) was for an application requiring a bar code read through a cellophane wrapper. The unclear image (Image 9A) was acquired using an on-axis ring light, while dome lighting (Image 9B) resulted in a clear, easy-to-read image of the bar code.

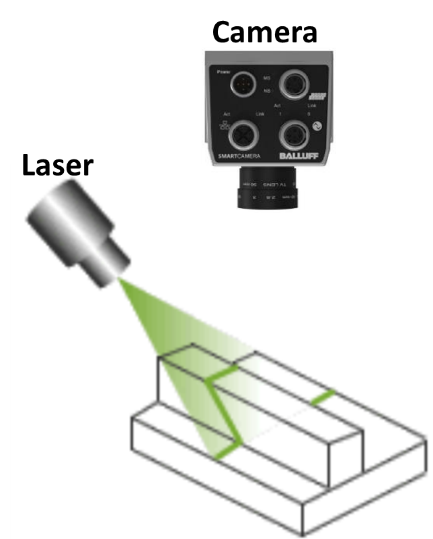

Structured laser line lighting works by projecting a laser line onto a three-dimensional object (Image 7A), resulting in an image that gives information on the object's height. Depending on the mounting angle of the camera and laser line transmitter, the resulting laser line shift will be larger or smaller as you change the angle of the devices (Image 7B). When there is no object, the laser line will be flat (Image 7C).

Advancedillumination

Computer Cable Store D-Sub Connector Pins - Crimp - Male - 100 pack. These D-Subminiature pins are used to construct Male D-Sub connectors such as DB9, ...

Lateralillumination

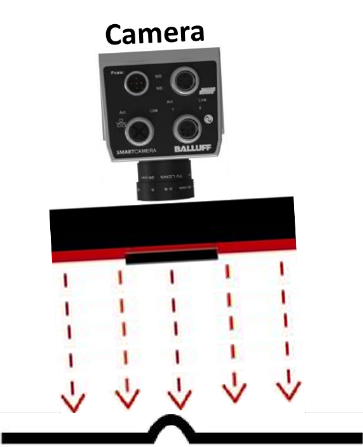

On-axis ring lighting is the most common type of lighting because, in many cases, it is integrated on the camera and available as one part number. When using this type of lighting, you almost always want to be a few degrees off perpendicular (Image 1A).  If you are perpendicular to the object, you will get hot spots in the image (Image 1B), which is undesirable. When the camera with its ring light is tilted slightly off perpendicular you achieve the desired image (Image 1C).

80/20 T-slot mounting brackets - panel mount brackets, roll-in panel mount brackets, table top fastening kits & adjustable panel mount brackets.

Off-axis bright field lighting works by having a separate LED source mounted at about 15 degrees off perpendicular and having the camera mounted perpendicular to the surface (Image 2A). This lighting technique works best on mostly flat surfaces. The main surface or field will be bright, and the holes or indentations will be dark (Image 2B).

backlighted - Translation to Spanish, pronunciation, and forum discussions.

The key to deploying a robust machine vision application in a factory automation setting is ensuring you create the environment for a stable image. The three areas you must focus on to ensure image stability are lighting, lensing, and material handling. For this blog, I will focus on the seven main lighting techniques used in machine vision applications.

Illuminationtechniques in slit lamp

Analytics and diagnostics are crucial for predictive maintenance, enhancing equipment effectiveness, and monitoring machine condition

Brightfield microscopy shows clear magnification while the dark field image shows minute details. Fluorescence microscopy. Fluorescence microscopy is done with ...

Diffused on-axis lighting, or DOAL, works by having a LED light source pointed at a beam splitter. The reflected light is then parallel with the direction in which the camera is mounted (Image 6A). DOAL lighting should only be used on flat surfaces where you are trying to diminish very shiny parts of the surface to create a uniform image. Applications like DVD, CD, or silicon wafer inspection are some of the most common uses for this type of lighting.
