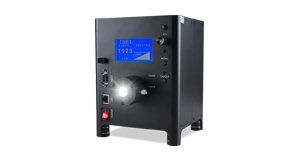

Laser Fiber Light (light box) (2SLG)
Laser Fiber Light (light box)
-
Features:
-
1.The LCD display screen shows the status and set actions.
2.It can be manually adjusted or externally controlled through software.
3.Constant current dimming, with adjustable dimming levels of 256/1024.
4.Support RS232 communication and Ethernet communication.
5.It is equipped with overcurrent protection, over-temperature protection and power-off preservation functions.
6.The maximum white brightness is approximately 30 million Lx, and the frequency can reach 8KHZ.
-
Applications:
-
1.Electron endoscope
2.Automotive endoscope
3.Industrial endoscope
4.Optical fiber
Optional 4 light-collecting lenses
Fiber connector(mm)
Fiber optic size(mm)
Fiber optic size(mm)
.png)

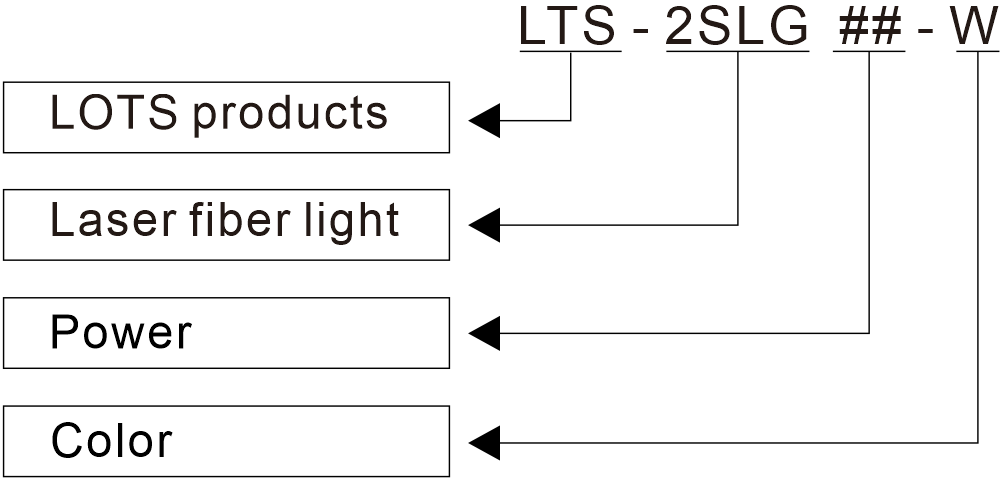

Coding rule
Light Parameters
|
|
|
|
|
| LTS-2SLG350-W | 350W | .png) |
L193.5xW155xH203(mm) | Strobe / constant on using External trigger voltage 5-24V |
Parameters
|
|
||
| Color temp. | 7000K | ||
| CRI | 70 | ||
| Emitting angle | 50° | ||
| luminance value | Approximately 30 million Lx(8mm optical fiber beam) | ||
| Compatible fiber diameter(mm) | The core diameter of the high-temperature resistant optical fiber is 6-14mm | ||
| Color | White | ||
| Average life span | 15,000 hours (stabilization time of 70% of the maximum light quantity) | ||
| Drive mode | Constant Current Driving | ||
| Input voltage | 100-240V AC | ||
| Number of channels | 1 way | ||
| Baud rate | 19200bps | ||
| Input frequency range | 50/60Hz | ||
| Luminance control method | Manual encoder knob adjustment, remote adjustment on PC | ||
| Luminance control level | 256/1024 level | ||
| Protection functions | The set brightness parameters will be automatically saved upon power failure | ||
| External trigger voltage | Pulse width trigger, high level 5-24V is effective | ||
| External trigger frequency | It is determined by the external trigger signal mode. If the duty cycle of the external trigger signal is 50%. The maximum external effective trigger frequency is 8KHZ |
||
| External trigger respond time | 20us | ||
| Startup response time | ≦6S | ||
| Protection functions | Overcurrent protection, power-off preservation, temperature protection | ||
| Communication mode | RS232/LAN | ||
| Service environment | Temperature : 0 to 40ºC,humidity : 20 to 85%RH(Non-condensing) | ||
| Storage environment | Temperature : 0 to50ºC,humidity : 20 to 85%RH(Non-condensing) | ||
| Constant on/constant off mode switching | This model has two modes: constantly on and constantly off, which can be switched through the initial state function inside the MANU |
||
*If you need drawings, please contact the sales staff.
