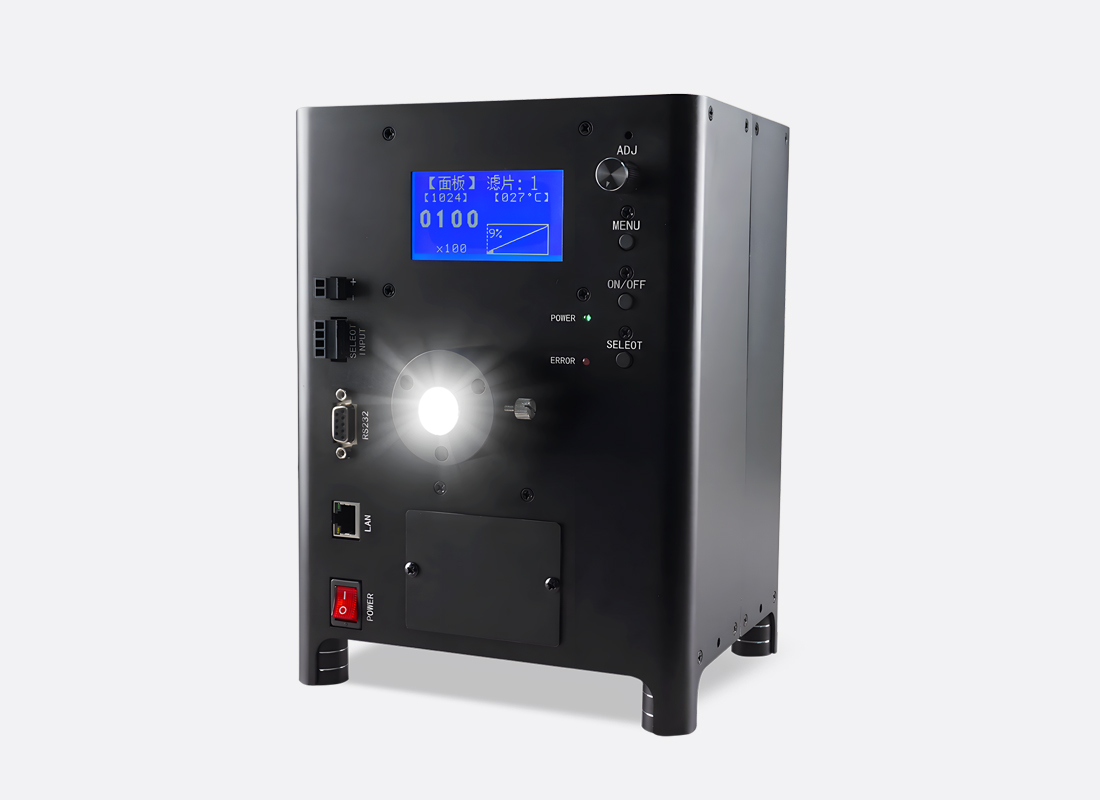

The fiber optic light(with filter wheel) enables multi-band and multi-color light emission by changing the filter, and can well meet the multi-color detection requirements of different processes and manufacturing procedures.Remove front cover for fast lens replacement. Comes with 5 standard color filters; custom wavelengths available. Easy & efficient operation.

Features:
◆ Switch filters to output multi-band colors.
◆ Fast color switch supports various processes and inspections.
◆ Filters are replaced once the front cover is removed.
◆ Filter switching is realized via the front panel, RS232, LAN or external trigger signals.
◆5 color filters included (Custom wavelengths available upon inquiry.)

Applications:
◆ Wafer Inspection: Surface particles, scratches, contaminants and photoresist residues are inspected.
◆ Chip Packaging Inspection: Detect gold wire defects, pad contaminants and packaging bubbles.
◆ OLED Panel Inspection: Screen dots, scratches, and dirt on the polarizing filter.

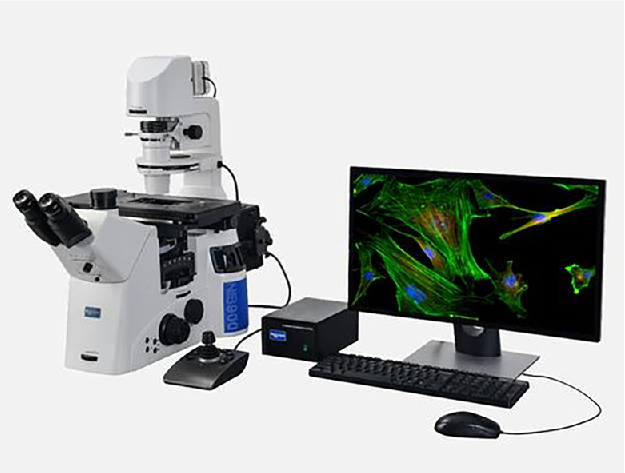

◆ Microscopic Optical Imaging Inspection:Metallographic observation & material multi-spectral micro inspection.

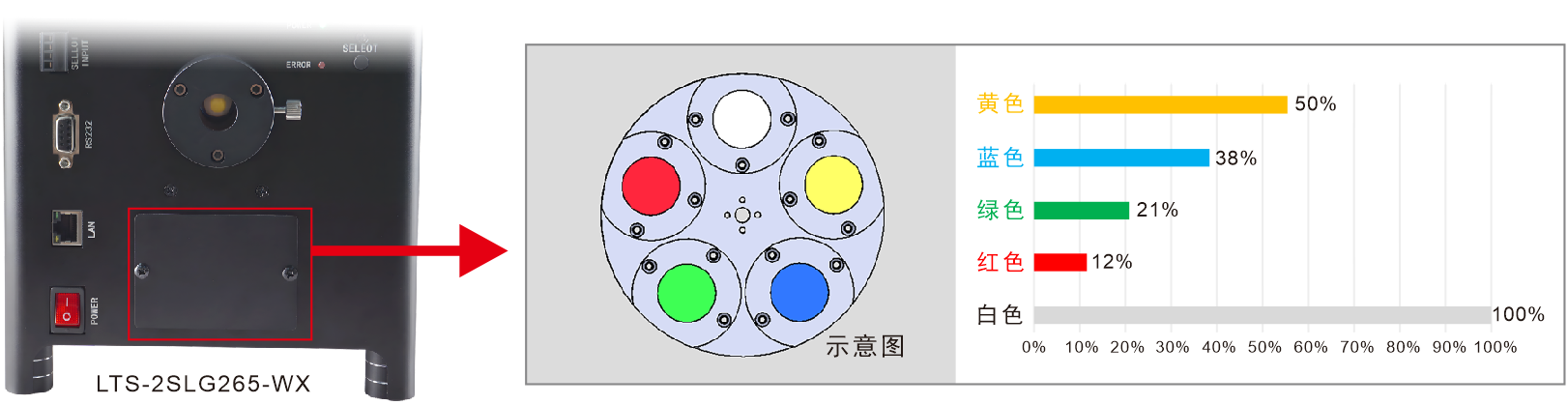

Model LTS-2SLG265-W (RGBWY) is fitted with a filter wheel converter.


*Above are brightness percentages of different filters (grayscale imaging test data) for reference.

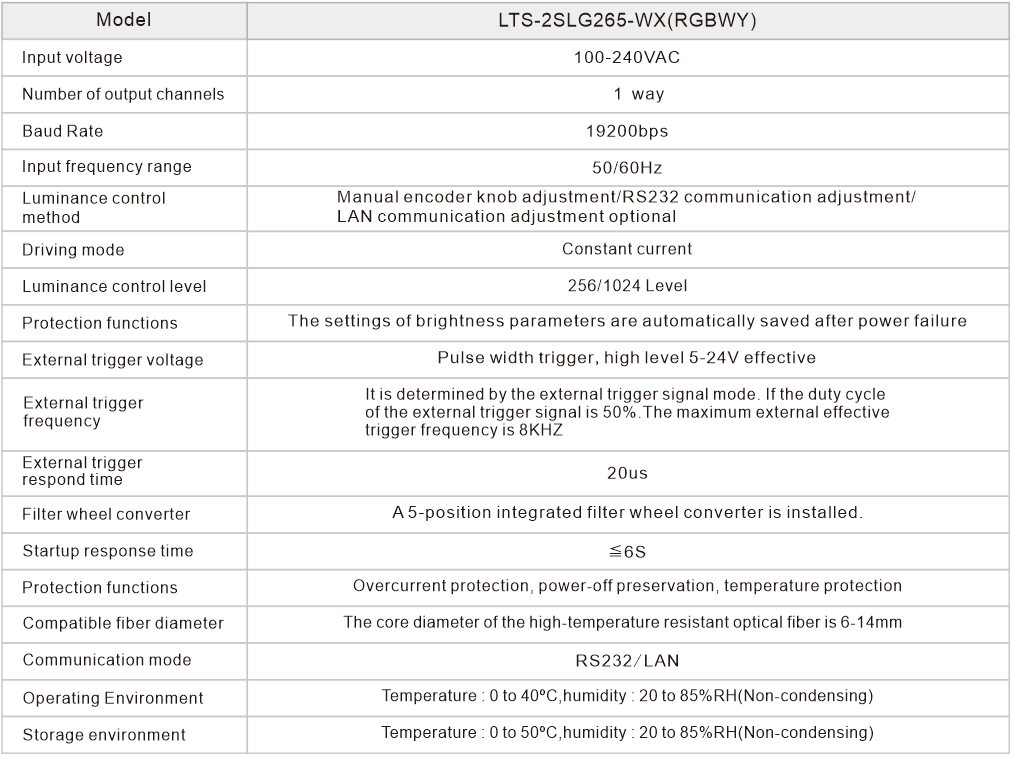

Parameters

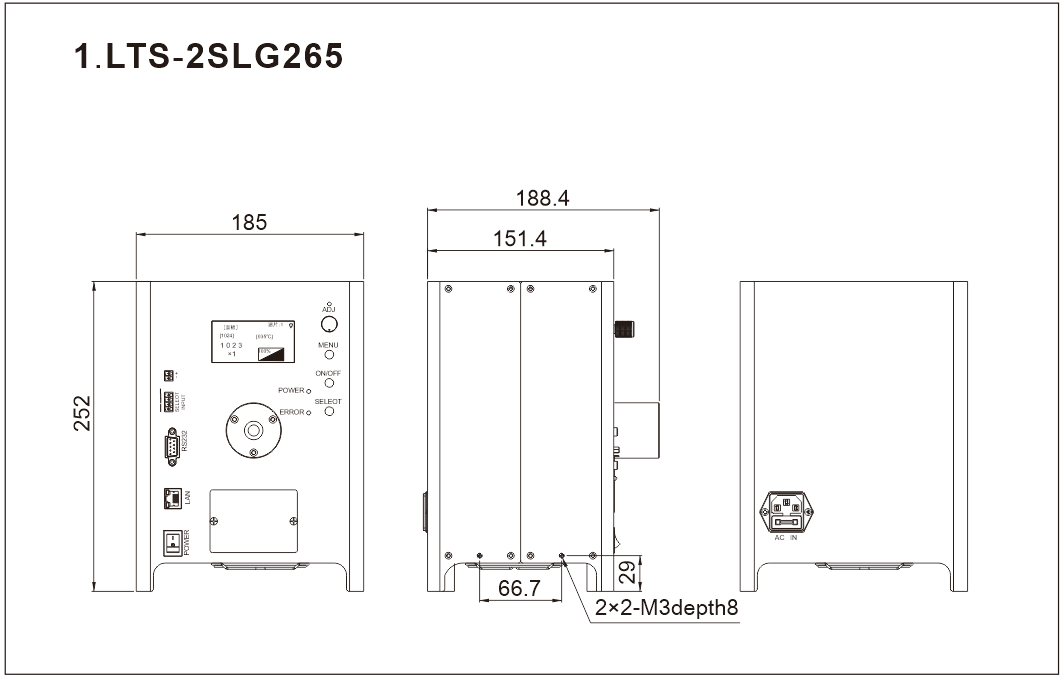

Boundary dimension(mm)
