4STU Brighten Strobe Controller
Features:
1.12us fast trigger response.
2.Setting up internal trigger frequency.
3.Brighten 2-10 times instantly, pulse width 0-999us adjustable.
4.Delay time adjustment function, 0-999us adjustable.
5.Filter time adjustment function, 0-999us adjustable.
6.Support RS-232 serial and Ethernet communication.
7.The light outputs a 12V pulse signal for triggering the camera synchronously.
Working system

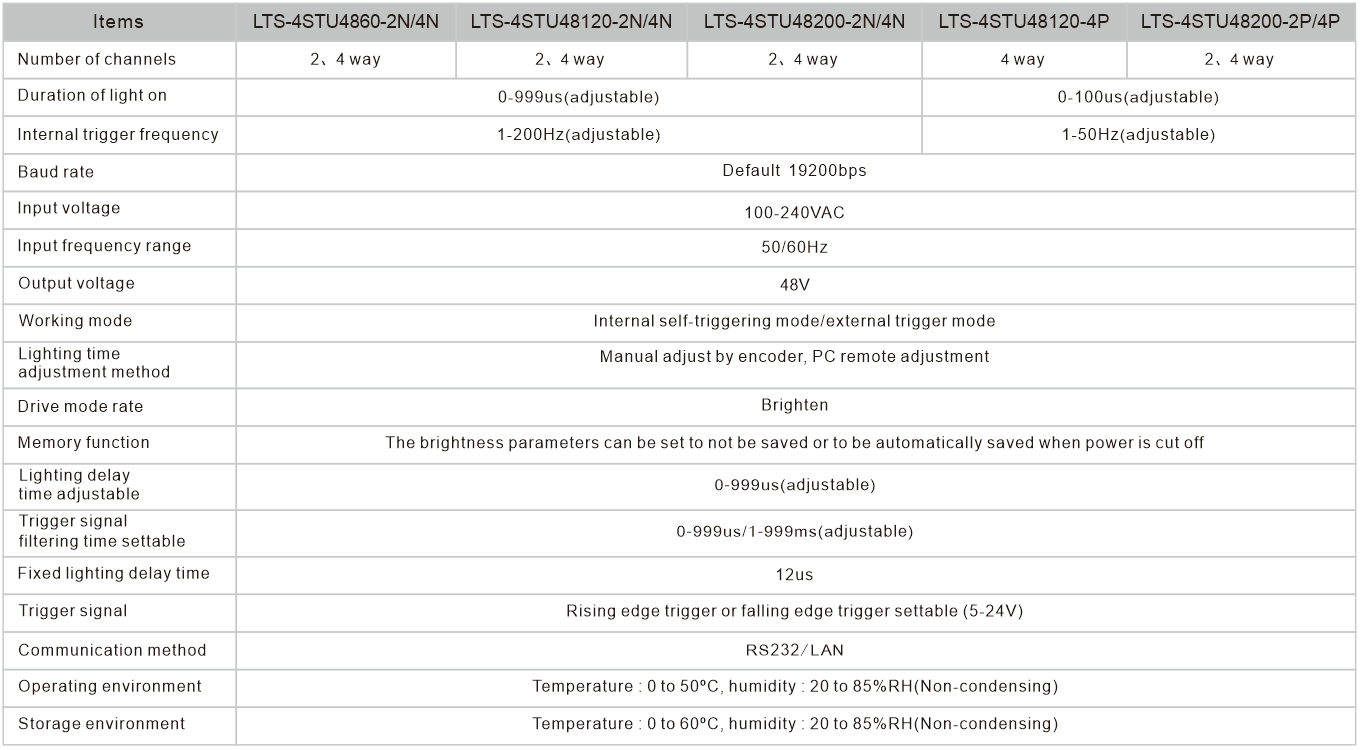

Parameters

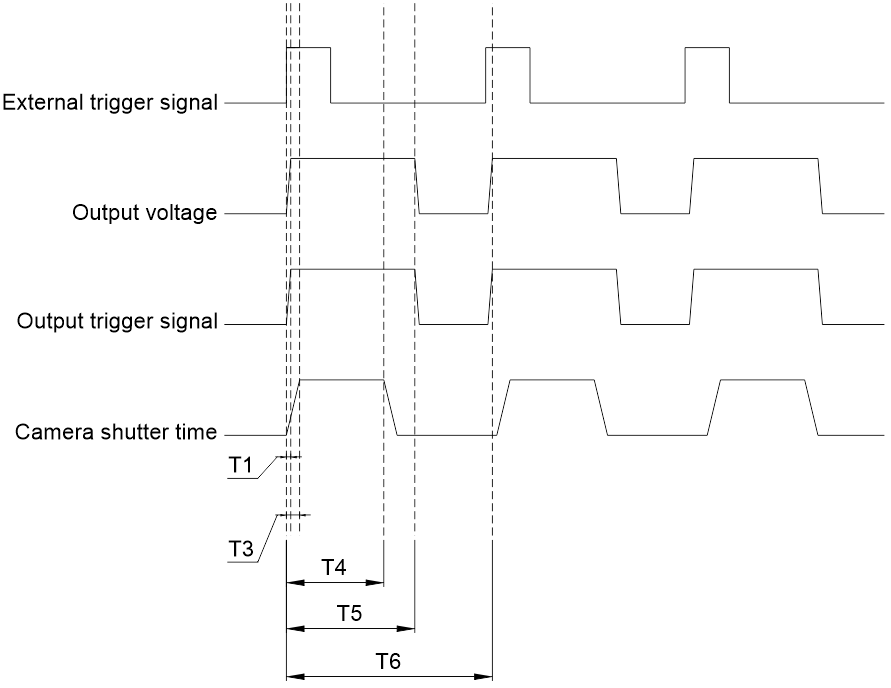

Sequence chart
Specification: The controller receives the external trigger signal, and delay time T1≤12us, then light on. The lighting time is the set-up time on the controller panel, T5 on the sequence chart, T5≤999us. To send a signal to trigger the camera or external device when light on. The camera can delay T3≤30us to shoot,the photos is brightest at this moment. Lighting time is T5, the one working period was accomplished after camera shooting and light off. The light will be turn on till next effective trigger signal received.

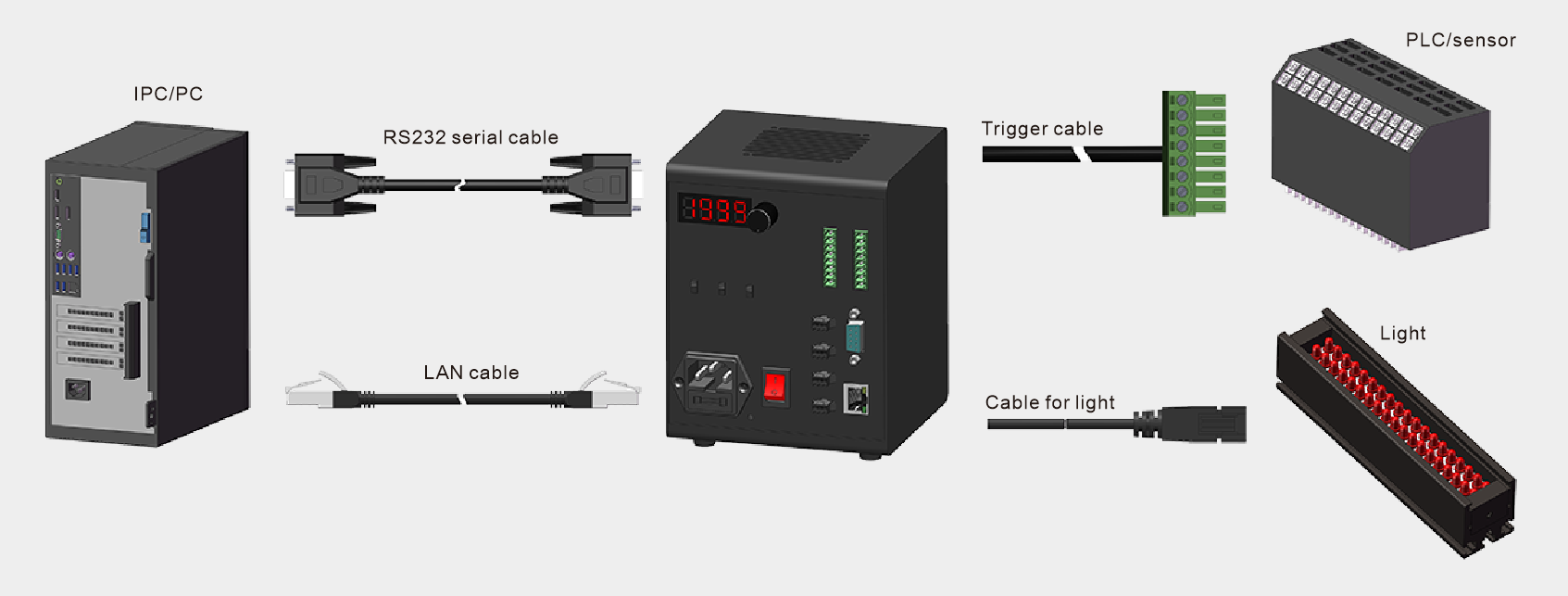

External trigger wiring diagram
Coding rule
| Product | Model | Output voltage | Number of channels | The time of lighting on | Support trigger frequency F= External trigger frequency |
Extenal trigger voltage |
|---|---|---|---|---|---|---|
| N Series Brighten strobe controller |
LTS-4STU4860-2N | 48V | 2 | 0-999us(adjustable) | F≤200HZ | 5-24V rising edge trigger or falling edge trigger |
| LTS-4STU4860-4N | 48V | 4 | ||||
| LTS-4STU48120-2N | 48V | 2 | ||||
| LTS-4STU48120-4N | 48V | 4 | ||||
| LTS-4STU48200-2N | 48V | 2 | ||||
| LTS-4STU48200-4N | 48V | 4 | ||||
| P Series Brighten strobe controller |
LTS-4STU48120-4P | 48V | 4 | 0-100us(adjustable) | F≤50HZ | |
| LTS-4STU48200-2P | 48V | 2 | ||||
| LTS-4STU48200-4P | 48V | 4 |
