Mini Line Scan Light (3LINR)
-
Features:
-
1.Use high power surface-mount lamp, high luminance.
2.Compact volume, width only 30mm, natural cooling.
3.Standard model add the optical film to improve the uniformity.
-
Applications:
-
1.Displayer surface dusty inspection.
2.Paste label surface defect inspection.
3.Packaging carton location inspection.

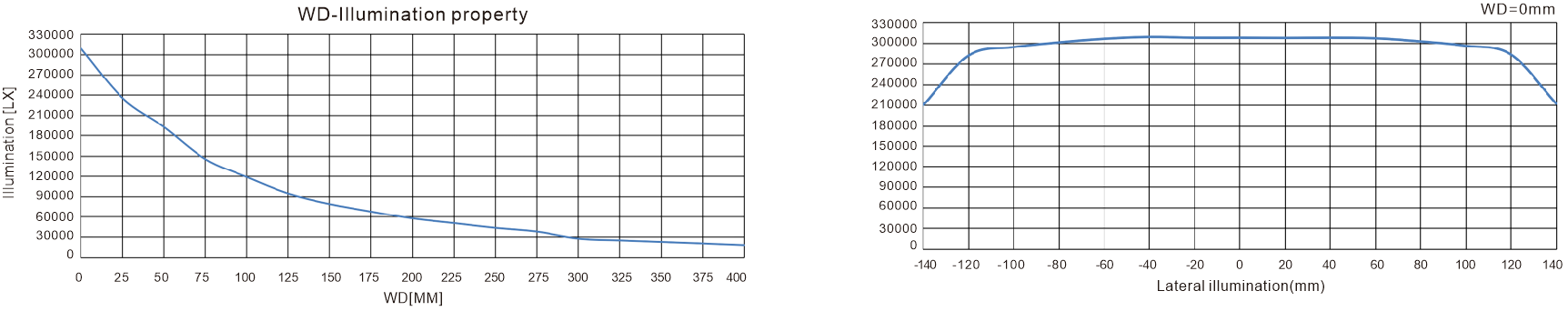

Illumination property diagram
Lateral characteristic diagram
Model：LTS-3LINR220-W
Distribution of relative luminance
Imaging instance：QR code inspection
Inspection application
Effect of visual test
Installation method Customized
Coding rule
|
|
|
|
|
| LTS-3LINR120-RGB/W |    /.png) |
L120xW20xH30(mm) | 24V | 7.2W/6.5W |
| LTS-3LINR220-RGB/W | / |
L220xW20xH30(mm) | 24V | 14.4W/13.0W |
| LTS-3LINR320-RGB/W | / |
L320xW20xH30(mm) | 24V | 21.6W/19.5W |
| LTS-3LINR420-RGB/W | / |
L420xW20xH30(mm) | 24V | 28.8W/26.0W |
| LTS-3LINR520-RGB/W | / |
L520xW20xH30(mm) | 24V | 36.0W/32.4W |
| * UV & IR light can be customized as required. | ||||
*If you need drawings, please contact the sales staff.
