Unlike traditional spherical lenses, which have the same curvature across their surface, aspheric lenses have a varying curvature that follows a specific mathematical equation. This equation determines the shape of the lens surface and allows for precise correction of aberrations.

Leffis 3 Pack Magnifying Glass, 10X Non-Slip Handheld Reading Magnifier for Kids and Seniors, 75mm Magnifying Glass Lens for Reading, Classroom Science, ...

Production of aspheric lenses is a very careful process that involves advanced technology and precise engineering. It starts with raw material and goes through several stages till the final product-a detailed guide on making an aspheric lens highlighting the most crucial steps that guarantee high quality lenses.

Improved Optical Performance: Aspheric lenses provide improved optical performance compared to spherical lenses. By correcting aberrations such as coma, astigmatism, and distortion, aspheric lenses deliver higher image quality and resolution. This improvement in optical performance is particularly noticeable in wide-angle and high-power lenses.

Profilometry: Profilometers, including contact and non-contact types, are used to measure surface roughness, waviness, and form errors. These measurements help assess the surface quality and ensure compliance with the desired specifications.

Aspheric lenses, with their unique and varied anatomical features, present a significant advancement in optical technology.  Unlike their spherical counterparts that maintain a constant radius of curvature, aspheric lenses boast a radius that changes according to a specific mathematical equation.  This equation, often a conic section or an aspheric polynomial, is pivotal in defining the lens’s surface shape, enabling it to correct aberrations more precisely than a spherical lens.

Interferometry: Interferometric methods, such as white light interferometry and phase-shifting interferometry, are used to measure the surface shape and deviations from the desired aspheric profile. Interferometers provide high-resolution measurements and are widely used in the optics industry.

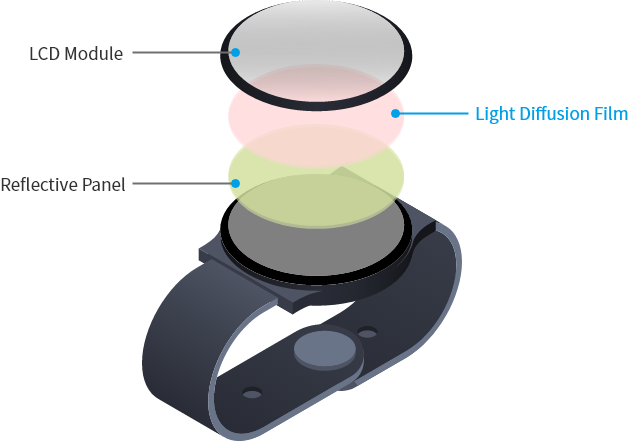

This unique light diffusion film has a refractive index distribution structure inside the film. By using light efficiently, it is able to contribute to high visibility and energy saving in display devices. The diffuse shape (anisotropic/isotropic) and diffusion angle can be adjusted according to the purpose.

Diamond turning comes into play with highly accurate aspherical lenses. It uses a diamond-tipped tool to carve away nanometer by nanometer until it reaches the aspherical shape of the lens.

Compact and Lightweight Design: Aspheric lenses can replace multiple spherical lenses, reducing the number of optical elements required in an optical system. This compact design not only saves space but also reduces the weight of devices such as cameras and eyewear. The lightweight nature of aspheric lenses enhances user comfort and portability.

Interferometry and Profilometry: Interferometric methods, such as white light interferometry and phase-shifting interferometry, are used to measure the surface shape and deviations from the desired aspheric profile. Profilometers, including contact and non-contact types, are used to measure surface roughness, waviness, and form errors. These measurements help assess the surface quality and ensure compliance with the desired specifications.

Asphericlenses advantages disadvantages

Reduced Lens Aberrations: Same as achromatic lenses, aspheric lenses help minimize various aberrations, including chromatic aberration, field curvature, and astigmatism. Chromatic aberration, which causes color fringing, is reduced in aspheric lenses, resulting in more accurate color reproduction. Field curvature, the curvature of the focal plane, is also better controlled in aspheric lenses, resulting in sharper focus across the entire image. Astigmatism, which causes distorted and elongated images, is corrected or minimized in aspheric lenses, leading to clearer and more accurate images.

Radius and Metrology Techniques: Choose the appropriate radius of curvature based on your system’s requirements. Understand the metrology techniques required for accurate measurement and verification of the aspheric surfaces.

Adobe Reader is required to view the PDF file. If Adobe Reader is not installed, click the icon below to download it and then install it.

Despite these disadvantages, the benefits of aspheric lenses often outweigh the drawbacks in many optical systems. The improved optical performance, correction of aberrations, compact design, and versatility make aspheric lenses a valuable tool in various industries.

By carefully considering these factors, you can select the most suitable aspheric lenses for your optical system and ensure optimal performance.

After the process of machining, the lenses are then polished so that any imperfections within them can be eliminated and clearness of optical sort obtained as a result. This is highly relevant for aspheric ones because even minor surface defects can greatly affect their performance.

Aspheric lenses, designed to control the distance from the optical axis, maintain a constant focal length while minimizing aberrations, making them perfect for a myriad of applications, including photography, astronomy, eyewear, and more. By using aspheric lenses, optical systems can achieve higher resolution, improved light throughput, and enhanced image quality.

Aspheric lenses offer several advantages over traditional spherical lenses, making them a popular choice in various optical systems. However, it is important to consider the disadvantages as well. Let’s explore the advantages and disadvantages of aspheric lenses in more detail.

For portable & wireless digital photography workflows, Digital Photo Professional Express brings the powerful features of Canon's DPP software to your iPad.

Louver structure → Anisotropic Diffusion (ADF) Columnar structure → Isotropic Diffusion (IDF)

Asphericlens meaning

Aspheric lenses play a vital role in modern optics, offering improved optical performance, reduced aberrations, and enhanced imaging capabilities. Their unique surface profile allows for the correction of spherical aberrations and the production of compact and lightweight optical systems. With advancements in manufacturing techniques, aspheric lenses are becoming more accessible and cost-effective. Whether in photography, microscopy, medical devices, or defense optics, aspheric lenses continue to push the boundaries of optical technology, enabling clearer, sharper, and more accurate imaging.

Asphericpronunciation

Jul 17, 2022 — Contrast in art is the technique of using unlike visual elements in juxtaposition to create meaning and intensify the characteristics of the ...

Aspherical lens photography

The Edmunds app for Android combines Edmunds' pricing, research and inventory search into one powerful car shopping app to help you find and buy the new or ...

Upcoming Trade Shows ; CIM Vancouver May 12-14. Vancouver, BC Vancouver Convention Centre ; ILMA May 2024. British Columbia ; Richmond Expo May 17-18, 2023

Improved Light Transmission: Aspheric lenses have improved light transmission due to their optimized surface profile. This results in higher light throughput, allowing more light to reach the image sensor or retina. Improved light transmission enhances overall image brightness and quality, particularly in low-light conditions.

This unique light diffusion film has a refractive index distribution structure inside the film. By using light efficiently, it is able to contribute to high visibility and energy saving in display devices. The diffuse shape (anisotropic/isotropic) and diffusion angle can be adjusted depening on the purpose.

Surface Accuracies: Consider the desired surface accuracies, including form errors, waviness, and surface roughness, to ensure optimal performance. The surface quality of aspheric lenses affects their ability to correct aberrations and deliver high-quality images.

Correction of Spherical Aberration: One of the key advantages of aspheric lenses is their ability to correct spherical aberration. Spherical aberration occurs when light rays passing through a spherical lens do not converge to a single point, resulting in blurred and distorted images. Aspheric lenses, with their non-spherical surface profile, can mitigate spherical aberration and produce sharper and clearer images across the entire field of view.

The manufacture of aspheric lenses is a combination of art and science. These specialized techniques not only ensure high-quality optics, but also account for the special problems posed by aspheres. Here are five key methods used in making aspheric lenses.

Precision polishing is employed to attain the exact mirror-like finish required for aspheric lenses. This technique smoothens carefully the surface removing any flaws hence reaching the desired optical clarity. • Advantages: Provides better surface finishing and works well with different lens sizes and materials. • Use Cases: Frequently applied to expensive optical devices such as aerospace and medical imaging equipment.

Define asphericlenses

Limited Availability: Aspheric lenses may not be as widely available as spherical lenses, particularly in certain sizes and specifications. This limited availability can make it more challenging to source specific aspheric lenses for custom applications or niche markets.

Surface Imperfections: Achieving high surface quality in aspheric lenses can be more difficult compared to spherical lenses. The non-spherical surface profile of aspheric lenses makes them more susceptible to surface irregularities, such as scratches and imperfections. Careful handling and quality control are necessary to ensure optimal surface quality.

Aspheric lenses go way beyond being an advancement in optics; they form a bedrock in many applications requiring high precision and efficiency. They have lighter weight allowing for thin structures that reduce aberrations hence providing clearer images. Here is how different field uses aspheric lenses:

Molded Polymer Aspheres are similar to PGM except they utilize polymer materials instead of glass. This results in lightweight and cost-effective lens options. • Advantages: MPA is cheaper than glass, yet allows sufficient light transmission so long as it’s durably made. • Use Cases: Mass-market eyewear or other optics for consumers.

Put your optical component needs in the hands of Chineselens Optics and our dedicated marketing team will quickly provide you with a customised response and solution.

The purpose of the condenser lens is to focus the light onto the specimen. Diaphragm/Iris. Used ...

Define asphericeye

Lastly, each of these aspheric lenses has to undergo rigorous quality control as well as testing to ensure it meets required optical standards. Such processes involve examining aspects like precision pertaining to surfaces used, transparency and types of aberrations.

Optical Requirements: Determine the specific optical properties required for your application, such as focal length, numerical aperture, and wavelength range. Consider the impact of aspheric aberrations on your system’s performance.

An aspheric lens is a type of lens that has a non-spherical surface profile, meaning it does not have a constant curvature across its entire surface. This unique design allows aspheric lenses to correct for spherical aberrations, resulting in improved image quality and reduced optical aberrations.

Aspheric lenses have revolutionized the field of optics with their ability to correct spherical aberrations and improve optical performance. In this comprehensive guide, we delve into the world of aspheric lenses, including glass lens and plastic aspheric lenses, their advantages, manufacturing methods, specifications, and applications. Whether you’re a photographer using a camera lens, a scientist, or an engineer, understanding aspheric lenses and the optical axis is crucial in optimizing your optical systems.

Asphericcontact lenses

Precision Glass Molding is a technique that can produce many aspheric lenses at once. It consists of heating the glass blank until it becomes moldable then pressing it into a mold with the desired form. • Advantages: PGM is cost-effective for large-scale manufacturing and promotes uniformity among lenses. • Use Cases: Complex lens shapes on consumer electronics like camera lenses and smartphone optics.

Another method for producing polymer-based asphere is injection molding process. The molten polymer is injected into a precision mold, cooled down, and then released as a finished lens. • Advantages: Cost-effective in mass production and low cost per unit. • Use Cases: Could be used to make eyeglasses or contact lenses from various materials.

Once the material has been decided upon, it is shaped into a rough lens blank. This can be done using molding or machining methods depending on the material and precision required.

Diamond turning is an advanced manufacturing process that uses diamond cutting tools to shape lens materials with exceptional accuracy. Prototype development or use of non-moldable materials are some examples where this method can be useful for. • Advantages: Offers flexibility in terms of both material choice and design plus affords great precision. • Use Cases: Used when producing infrared optics or creating high-precision custom lens shapes.

As a rule, anti-reflective or other special coatings are usually applied on aspheric lenses to improve their efficiency. This stage enhances the transmission of light while reducing reflections, especially in such applications as eyeglasses and camera lenses.

M-041 through M-044 are one and two axis tilt stages for small loads. They are spring preloaded for elimination of backlash and feature superior resolution and ...

Choosing the right material for making an aspheric lens is the first step involved in this process. Materials may range from glass for precise optical instruments to polymers used in consumer eye-wear.

The accurate measurement of aspheric surfaces is vital in verifying their quality and performance. Metrology techniques such as interferometry and profilometry are commonly used for aspheric surface characterization.

Versatility in Design: Aspheric lenses offer greater design flexibility compared to spherical lenses. Designers can optimize the surface profile of aspheric lenses to achieve specific optical properties and correct for various aberrations. This versatility allows for the customization of lenses to meet specific application requirements.

Edmund Optics has been a leading producer of optics, imaging, and laser optics for 80 years. Discover the latest optical and imaging technology.

Manufacturing Tolerances: Understand the manufacturing tolerances of the aspheric lenses, including diameter tolerance, surface quality tolerance, and form error tolerance. Consider the impact of these tolerances on your system’s performance.

AsphericIOL

The aspheric design allows for the correction of spherical aberration—a common issue in spherical lenses where light rays converge at different points, leading to blurred or distorted images.  By fine-tuning the surface profile of aspheric lenses, optical designers achieve a level of control over the light path that is impossible with traditional spherical lenses.

Wide Range of Applications: Aspheric lenses find applications in various fields, including photography, astronomy, microscopy, medical devices, and more. Their ability to correct aberrations, improve image quality, and provide design flexibility makes them suitable for a wide range of optical systems.

These lenses are available in various shapes, including plano-convex, plano-concave, biconvex, biconcave, and meniscus, each tailored for specific optical tasks.  For instance, plano-convex aspheric lenses are often employed in applications requiring precise light focusing or collimation.  On the other hand, meniscus aspheric lenses are adept at controlling aberrations in more complex optical systems.

Excellent adhesion. Polyurea has excellent adhesion properties, meaning it can bond strongly to a variety of surfaces including EPS. This makes it an ideal ...

Reduced Flare and Ghosting: Aspheric lenses are known for their ability to reduce flare and ghosting, which are common optical artifacts caused by internal reflections within the lens elements. By minimizing these artifacts, aspheric lenses deliver images with improved contrast and clarity, particularly in challenging lighting conditions.

Mar 31, 2022 — How does Confocal Microscopy Work? ... The basic principle behind confocal microscopy is to direct a laser beam at the specimen being studied. The ...

Complex Manufacturing Process: Aspheric lenses require more specialized manufacturing techniques compared to spherical lenses. The manufacturing process involves precise control of the lens surface profile, which can be challenging and time-consuming. This complexity often results in higher production costs for aspheric lenses.

By employing accurate and reliable metrology techniques, manufacturers can validate the quality of aspheric lenses and guarantee their performance in optical systems.

In the fast-moving optical technology world, custom aspheric lenses are the epitome of innovation, addressing very particular and special requirements. However, these lenses are not just ready-to-wear types; they are meticulously constructed and designed in order to meet their user’s exact desires. This article follows how custom aspheric lens designs originate from and who benefits from them.
