PARALLAX: Before we meet the Pentaprism, let’s look at a straight forward problem in photography: lining up the shot. To do this, most cameras have a VIEWFINDER, but as this image shows, viewfinders can lead to “parallax” problems. A simple demonstration of parallax is to hold up one finger about an inch in front of your nose; now close each eye in turn and watch as your finger appears to move side to side against the background. Voila: parallax! The same problem occurs with a camera as the viewfinder lies to the side of the camera lens: in this example, a photographer has lined up a shot beautifully through the viewfinder, only to discover that in the actual photo, Fred has a tree coming out of his head. Oh dear!

Get support from others and learn how to manage or prevent common diabetes-related side effects, including compromised vision.

LET’S FOLLOW THE LIGHT RAYS CAREFULLY: the lens REFLECTS the image, leaving it both upside down and back to front; the single mirror then REFLECTS it vertically, it’s now the right way up but is still back-to front; the Pentaprism now ROTATES the light beams through 90° while REFLECTING it vertically twice: these two reflections cancel each other out. We now have an image that just requires one horizontal flip to correct the back-to-front writing (technically called the “handedness” as in right or left handedness). To achieve this, maths came up with a cunning solution: replace one of the pentaprism’s reflecting surfaces with TWO surfaces meeting at 90° – and the ROOF PENTAPRISM was born!

Our two-mirror arrangement does nothing to fix this upside-down-back-to-front-ness: AND THIS IS WHERE THE MATHS SAVES THE DAY in the form of: the PENTAPRISM!!

Pentaprismphotography

After receiving cancer treatment at Sutter Health, a Vacaville man shares his positive outlook on life with fellow cancer patients.

Nancy’s cataracts were so advanced that she couldn’t even drive. Through a free program, she received the surgery she needed to see.

Pentaprismclothes

Let’s replace the upper mirror with a glass prism. Its cross-section is a pentagon with one angle of 90° and the other four angles at 122.5° (since the angle sum in any pentagon is 540°).

By clicking 'Accept', you agree to the collection of data and use of these tracking technologies as described in our Privacy PolicyOpens new window. Select 'Decline' for essential cookies only.

Pentaprismin a camera

Our first goal is to care for you in the best way possible using preventative and medical treatments. Should you need surgery, an ophthalmologist within the Sutter Health network can offer leading-edge, sight-saving surgery technologies and treatments, including:

Pentaprismdevice

You may encounter vision problems at any time of life, from birth through advanced age. Whether you're nearsighted or need care for cataracts, expert centers with ophthalmologists and optometrists across the Sutter Health network offer the latest in vision care. We provide precision diagnostics, advanced treatments and a strong commitment to research to improve and maintain your sight.

Pentaprismand eyepiece

REFLEX MIRRORS: To get both viewfinder and lens to see the exact same image, we can simply place a mirror at the back of the camera lens at 45°angle to reflect the light away from the camera, and then a second mirror to redirect the light through the viewfinder, like this.

We now have: The Single Lens Reflex (SLR) camera, although most SLR’s are now Digital: hence the DSLR camera, beloved of all pro and serious amateur photographers.

I love the ingenuity with which maths solved the parallax problem for photography, and the way it ties in with so much of the geometry (“shape”) that we learn at school. House Of Maths salutes the mighty Pentaprism!

To improve your website experience, we use cookies and other tracking technologies and may share data with service providers.

Pentaprismfor sale

The Frank Stein and Paul S. May Center for Low Vision Rehabilitation at California Pacific Medical Center, a Sutter Health affiliate, offers specialty services for low vision.

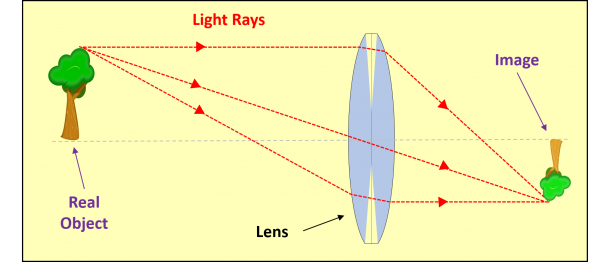

The mirrors are called “reflex” because they reflect (nothing to do with angles larger than 180°). Now the real fun begins, because a focussing camera lens shrinks the image and REFLECTS it upside-down and back-to-front – something we can do in one go at GCSE using an ENLARGEMENT WITH NEGATIVE SCALE-FACTOR:

Vision issues occur more commonly after age 40, so we strive to help you preserve your eyesight through regular checkups and management of risk factors, such as diabetes and thyroid problems. If your sight becomes impaired, we can help you maximize your vision and maintain independence.

Eye specialists treat the entire family, providing therapies and procedures to correct many common and rare problems, including:

The Munnerlyn Eye Institute at the Palo Alto Medical Foundation offers a full range of ophthalmology and optometry services, including specialty services, for people of all ages. This beautiful, new institute was made possible in part by a gift from Charles Munnerlyn, Ph.D., and Judith Munnerlyn. Charles Munnerlyn is one of the founding fathers of laser vision correction.

Pentaprismmeaning

Copyright © 2024 Sutter Health. All rights reserved. Sutter Health is a registered trademark of Sutter Health ®, Reg. U.S. Patent & Trademark office.

WARM-UP: write a word and look at it in a mirror. You’ll see that the word is now backwards: it has been REFLECTED HORIZONTALLY (like a reflection “in the y-axis”). Now place the mirror in different positions: on the floor, near the ceiling, on a wall – and look at your writing through the mirror. What happens to the writing each time? Can you guess what will happen if you look at it through 2 or more mirrors? You should find that a vertical mirror flips the word horizontally and vice versa; with two or more mirrors almost anything is possible!
