The spatial filter assembly consists of a microscope objective, a pinhole aperture, and a positioning mechanism. This is comparable to the first lens of a Keplerian telescope design with the microscope objective serving as the first lens, and a positioning mechanism used to place the aperture at the point of focus. This setup is often paired with a collimating lens and used as a beam expander (Figure 2).

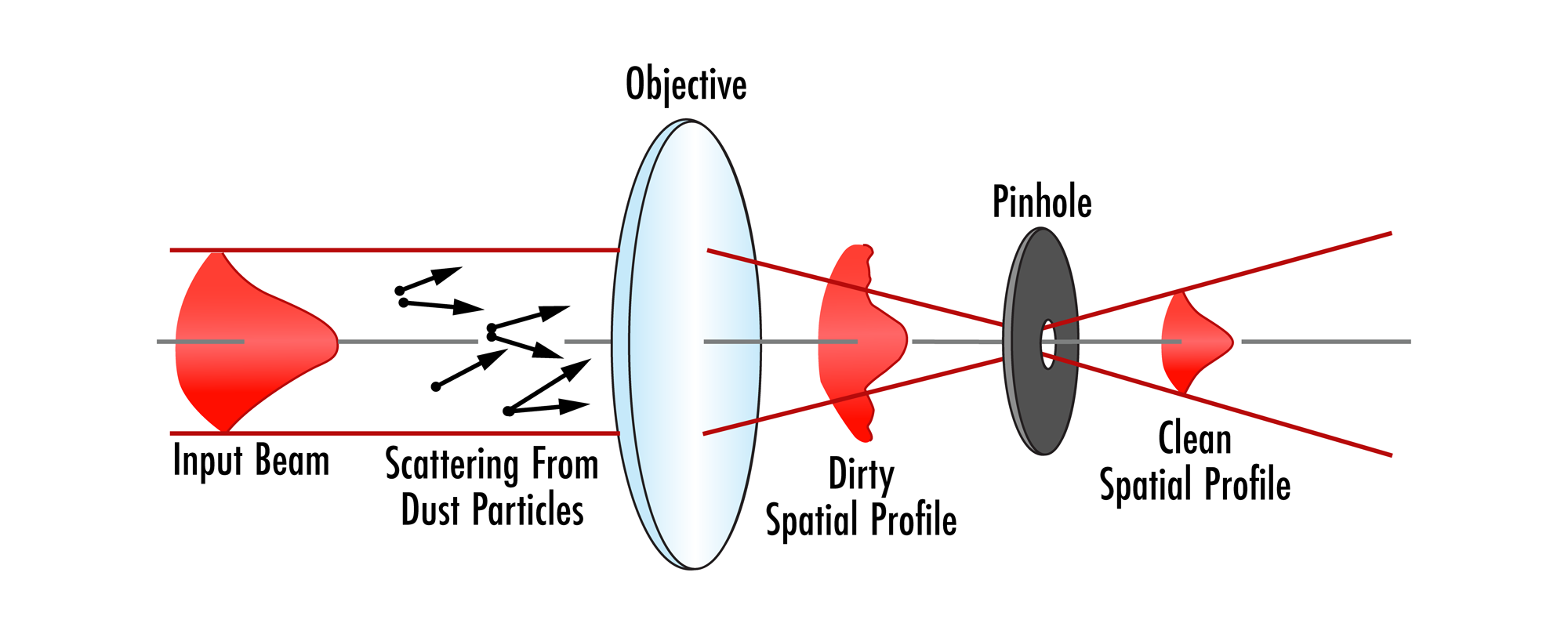

Spatial filters are designed for use with lasers to "clean up" the beam. Oftentimes, a laser system does not produce a beam with a smooth intensity profile. In order to produce a clean Gaussian beam, a spatial filter is used to remove the unwanted multiple-order energy peaks and pass only the central maximum of the diffraction pattern (Figure 1). In addition, when a laser beam passes through an optical path, dust in the air or on optical components can disrupt the beam and create scattered light. This scattered light can leave unwanted ring patterns in the beam profile. The spatial filter removes this additional spatial noise from the system.

Amphenol RF’s SMA quick-connect adapter is a precision-machined 50 ohm straight jack to straight plug configuration which offers excellent electrical performance through 18 GHz. This adapter dramatically reduces the time necessary for mating and un-mating by eliminating the need to fully thread onto the interface but maintains the same high-quality coupling that users expect from a threaded interface. The unique push-turn thread on, pull-off style of coupling does not require any tooling. The SMA quick-connect adapter easily converts any standard SMA plug test cable into a quick-connect cable without compromising the electrical integrity of the assembly and is compatible with all threaded SMA jack and plug connectors. Utilizing this quick-connect adapter with SMA plug test cables will reduce the time and effort involved in the testing process and extend the life of the test cables.

The difficult part of constructing a spatial filter is deciding what size pinhole is sufficient to block enough light to clean the beam while staying above the point at which the laser beam starts to diffract. Equation 1 shows the percentage of power (p) transmitted through a spatial filter with a pinhole diameter of D, using a microscope objective with a focal length of f.
