The broadband LED illumination bar can be configured via a PC using PWM modulation, thereby generating uniform illumination over the entire illumination area. It is configured and supplied with power via an industrial plug.



HAIP Solutions BlackBright VNIR LED Bar is a line light illumination bar designed for hyperspectral imaging, integrating special Broadband-LED technology.

Unsure if spectral imaging solves your application? Get in touch with us and send your sample to HAIP Solutions for a measurement in our lab.


The BlackBright VNIR LED Bar presents a compact and modular design with an arrangement of individual elements each 150 mm long. Consequently, there are variable line lengths from 300 to 1350 mm available on request.

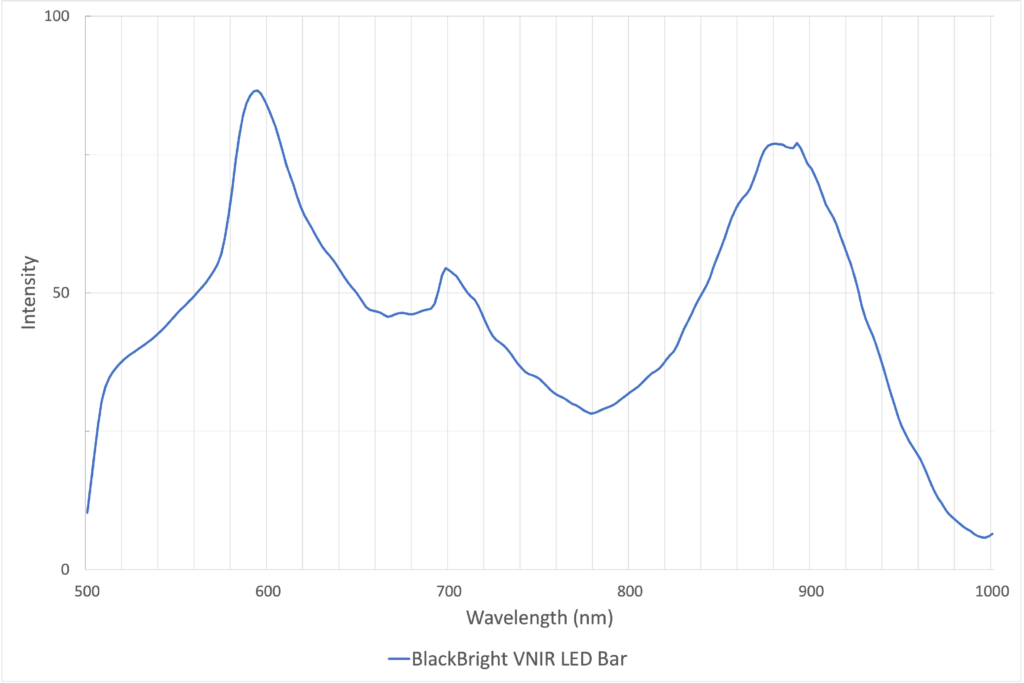

The light intensity can be dimmed segment by segment via a software controller interface. This dimmable light intensity and the homogeneous light distribution enable very precise imaging in the spectral range 430 – 1050 nm.

BlackBright Bar is a broadband illumination bar with all the needed components, designed for the BlackIndustry VNIR V2 camera.

The lenses developed for use with a C-mount are designed for image sensors up to a size of 4/3” and offer exceptional image quality in a compact, lightweight and rugged aluminum housing. The ZEISS Dimension family consists of six focal lengths ranging from 8 to 50 millimeters.

ZEISS lenses for technical applications are key components in complex production processes (Machine Vision) as well as in optical metrology, medical applications, traffic enforcement, quality assurance, sports and many other applications. Here they prove their outstanding image performance and reliability. Due to the precise manual adjustment of the helical focusing mount our partners will gain much better results than with comparable lenses.

The use of LED technology enables a long service life and the elimination of thermal light sources, which are more susceptible to faults and have a shorter service life. As an external lighting source, the BlackBright Bar is ideal for hyperspectral sorting and inspection applications.
