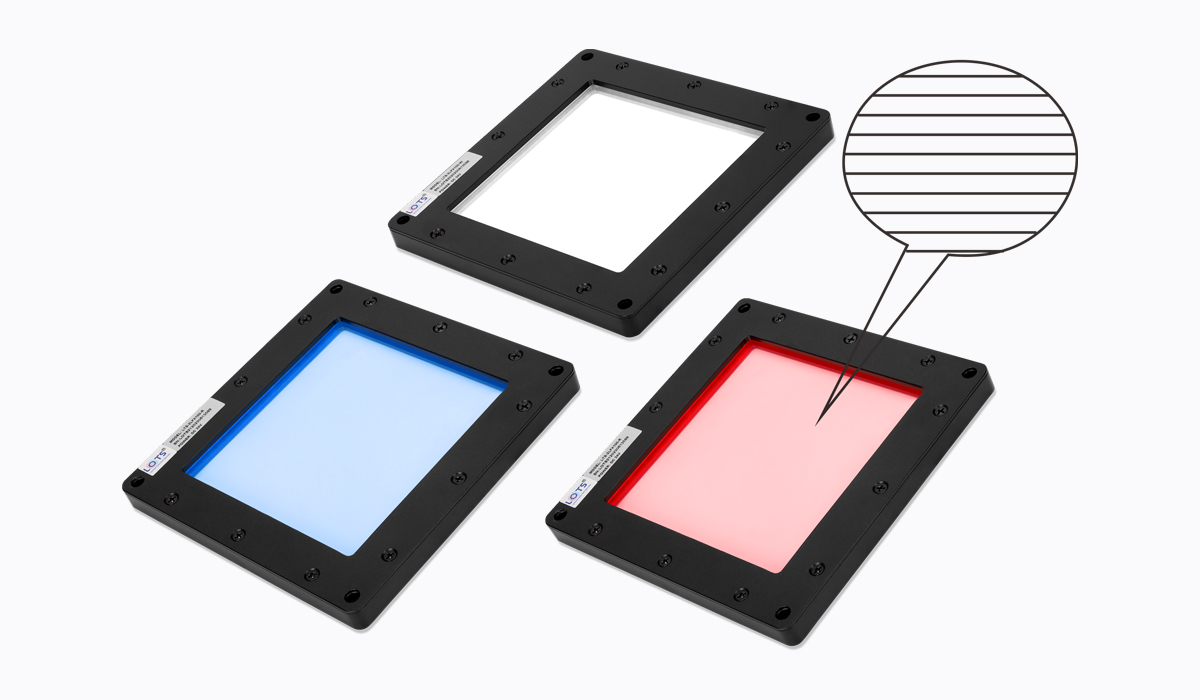

The newly upgraded 2LFM series has a brightness increase of over 30% compared to the first-generation LFM, with no diffraction shadows and better uniformity. The stripes are finer and sharper, and the detection accuracy has been further improved.

Features：
1.The brightness has increased by more than 30%.
2.There are no diffraction shadows, and the uniformity is better.
3. The stripes are finer and sharper, meeting the requirements of higher detection accuracy.
4.Suitable for concave and convex/crease defects on smooth product surfaces.

Applications:
1.The concave & convex and crease defects on reflective glass, mirror, glass, mobile phone film or other reflective surface inspection.

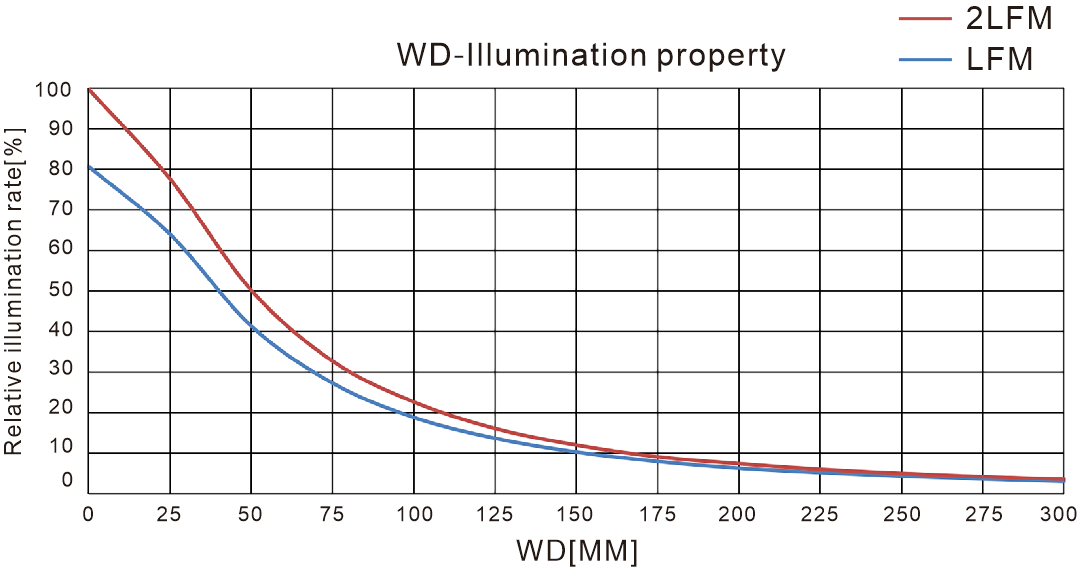

Illumination property diagram
Model:LTS-2LFM100-W/LFM100-W

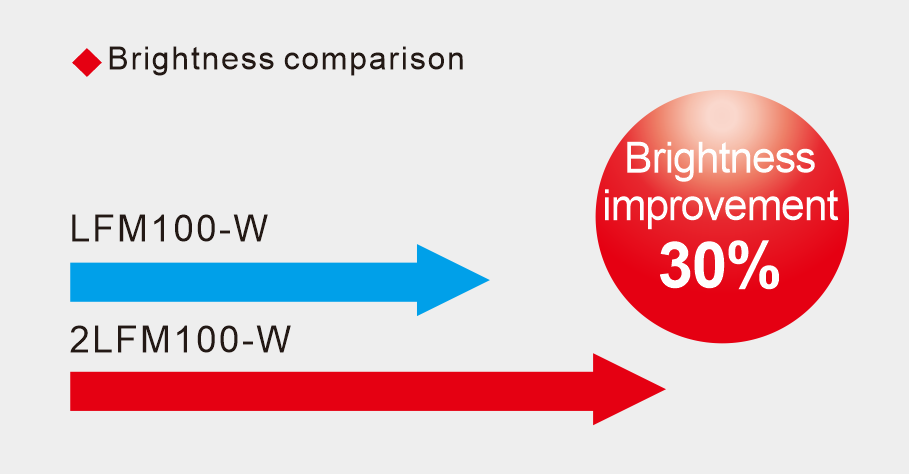

Brightness comparison chart

*Above diagram only for reference.

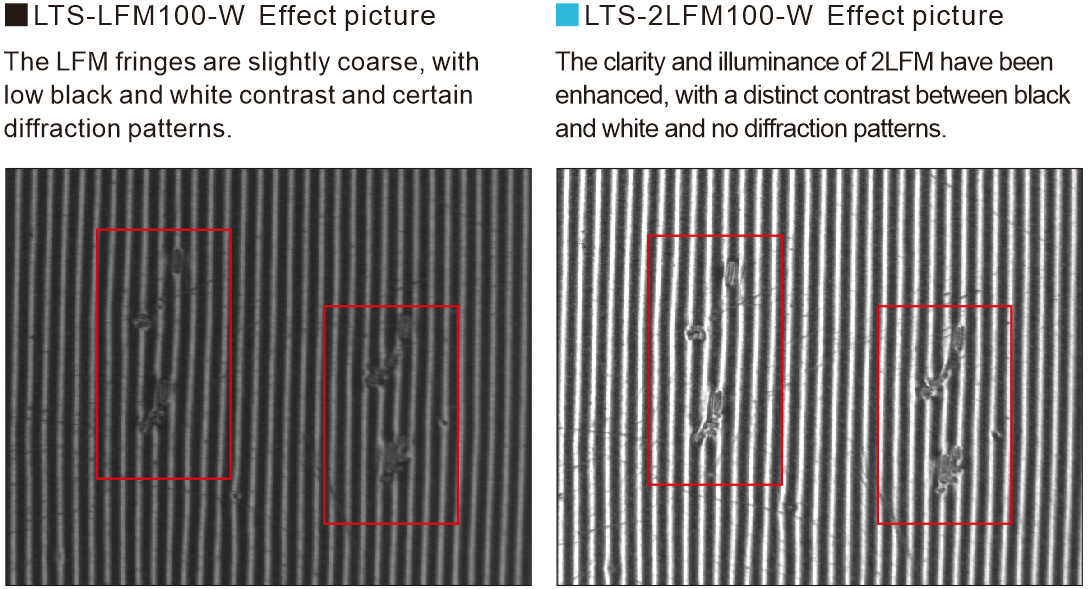

Inspection case

Imaging case: Inspection of surface defects in polarizing films
WD(The distance from the light to the object)：100mm
Exposure time:8000us

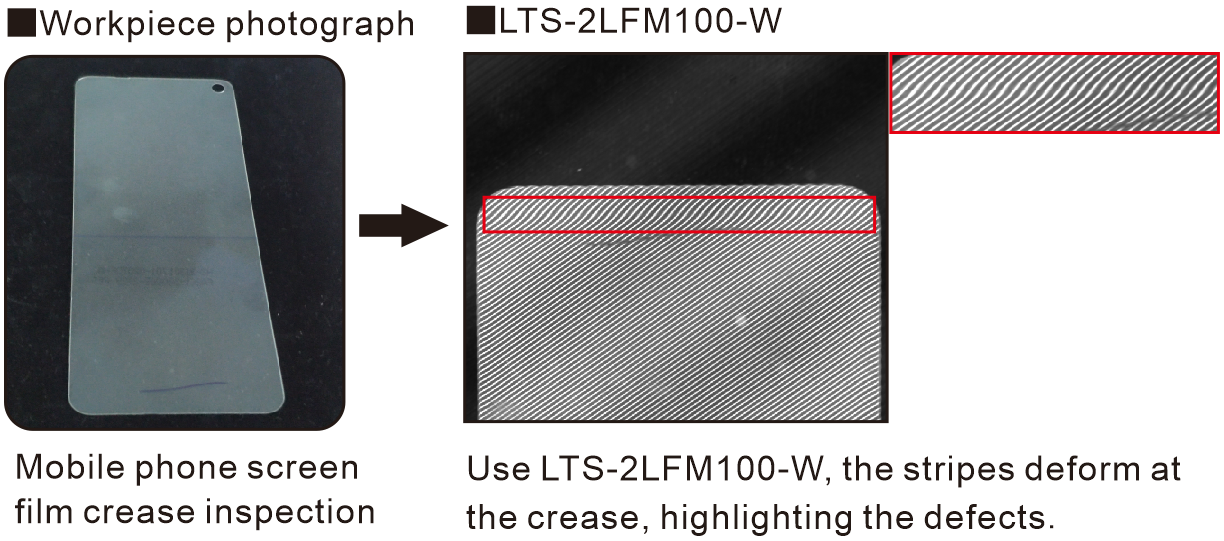

Imaging instance:mobile phone screen film crease inspection
Light model:LTS-2LFM100-W
Result:The stripes are deformed and the defects are obvious

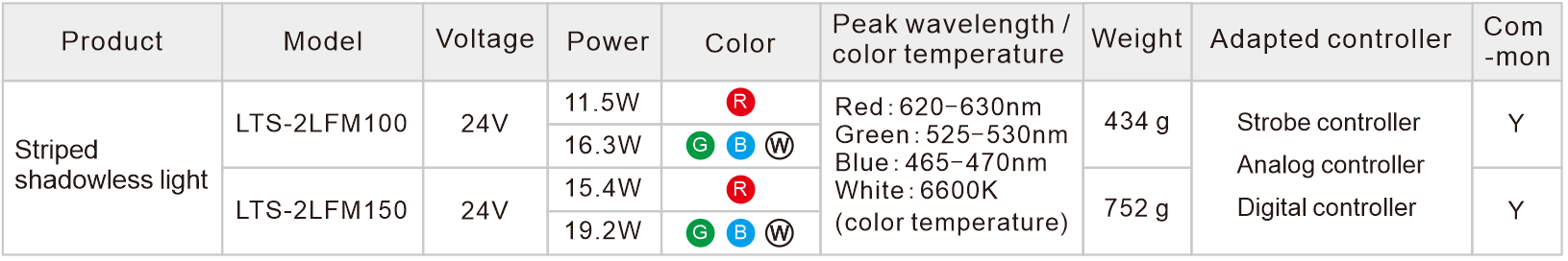

Light parameters
