The ATX adapter with spliced in 555 timer has solved the issue with the system halting due to a detected power supply fan failure, however in comparison to using the Dell PSU, there is another error: Alert! Previous voltage failure.

I had ordered the black cable shown on the right from eBay, for which the listing said it was for Dell, but it wasn't obvious from the photos on eBay that the male ATX-24 was of a mini size. I've shown it next to a standard ATX-24 for size comparison. I'm guessing I need the full version of this cable. Does anybody have any positive experience finding the correct cable for these DELL ATX-24 connectors?

At any rate, the pinout as supplied in the Dell Precision Workstation 410 and 610 Service Manual is incorrect. Not one, but three assignments are wrong. I was shocked and a little applauded that Dell never bothered to fix this in their electronic version PDF file. It is a good thing that I have an actual Dell PSU that came with a Precision Workstation 410 to verify this mistake. The mistakes are shown below:

Thanks for your input. I agree, the crummy wire quality is probably the issue. The wire appears to be pure copper at least. I didn't think the motherboard would measure the transient voltages, but rather the steady-state ones. I guess it measures transient as well. The simplest remedy would be to get a higher quality ATX20-ATX24 adapter cable and mod it. I do have one, but I want a 2nd for the modification. This adapter is intended for the testbed, not to go into a system.

Using the Aopen PSU, I powered on the Dell 610 motherboard, but received a halt error at POST; and it won't let me into the BIOS. The Dell PSU worked fine, so the motherboard works. The error was:

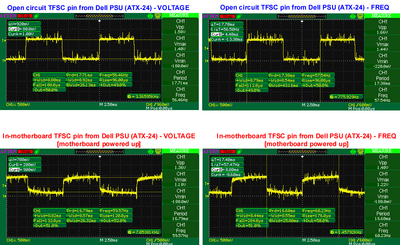

Below are images from the oscilloscope. The top row of images show the waveform with just the PSU powered solo (no motherboard), while the bottom row shows it with the motherboard connected and powered up. The in-board 555 timer waveform is running at 57 Hz, just as was the case with the Dell PSU. The waveform voltage from the Dell PSU in-board has about 60 mV more of a DC offset compared to the 555 timer in-board. The Dell PSU's in-board waveform has a peak of about 900 mV while that of the 555 timer in-board has 700 mV. This difference did not effect operation. To ensure a sufficient safety margin, I swapped Rb for 1 Kohm instead of 2 Kohm, which brought the peak voltage down to 400 mV and it still did not affect operation, thus I left it at 2 Kohm.

The AOPEN power supply doesn't have a pin assignment called TFSC, which stands for "thermal fan-speed control", so I figured that this must be the cause of the system halt. Since my Dell PSU comes from my cased Dell Precision Workstation 410, I wanted to have a benchtop CPU for this Dell 610 Xeon motherboard and not have to remove the PSU from my case. So I started investigating ways to trick the Dell 610 motherboard into seeing the signal it wants to see so that the motherboard would boot.

12VHPWRpinout

Insert tool first all the way in, then push the wire and tool together into plastic connector this will be felt when wire move into little further and that helps tool to seat fully, by few wiggles, then tug wire out.

Atx 24pin

Good info. I just tried using staples on one of my ATX extenders, the micro clips were slightly different and could only get one very small staple in due to lack of space inside the male end. I think it would be easier on the female side though have not tried yet.

Measurements on the scope identify the waveform as a square wave having a 50% duty cycle, with frequency of around 57 Hz, and a peak Vpp of 900 mV. I decided I would use a common 555 timer IC in astable mode to mimic this waveform. While there are dozens of ways to create simple oscillators, I wanted to pick the method which required the least soldering, least head cracking, and to use only components I had on hand.

I don't think the quality of cable matters that much for such a short wire run. I am not sure its measurable when we are talking about a couple inches.

2023523 — Manufacturers use computer vision to sort and count items, such as parts or components. Automatic sorting helps to improve accuracy, ...

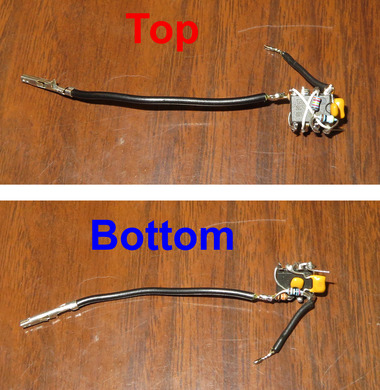

Attached is my simple schematic, to be spliced into the ATX20-ATX24 adapter cable. Values for R1, R2, and C1 affect the duty cycle and free running frequency and were selecting accordingly. There are several ways to play with these values, even using entirely different values to reach the same waveform, but since I wanted to use what was on-hand, this is how I arrived at my starting point. From the theoretical calculation shown on my diagram, values of R1 = 499 ohms, R2 = 32.4 Kohms, and C1 = 0.33 uF should result in a 5V square wave with a frequency of 67 Hz and a 50% duty cycle. To drop the waveform's voltage from 5 V to around 900 mV, I am using a simple voltage divider circuit with Ra = 10 Kohm and Rb = 2 Kohm.

Optische Scanner (Fotometrie); Maschine zur Dimensionskontrolle mit Messtaster (CMM); Gelenkarm zur Dimensionskontrolle mit Messtaster. Kontrolle der Gussteile.

PCIepinout

ATX power supplypinout

Hard disk thermal probe, it couldn't possibly know that, only thing that I can think of is there is a header for that too. Or it had a card that had that on it that the bios could read.

Experience tells me it is best to have a properly made tool. I had to carefully file down my spare tweezers just right and tips (strong and thick, lightly beveled to slide into between metal connector easier and push over the hooks without digging in, shaped just right then things works properly. Tricky if you are using home made extractor.

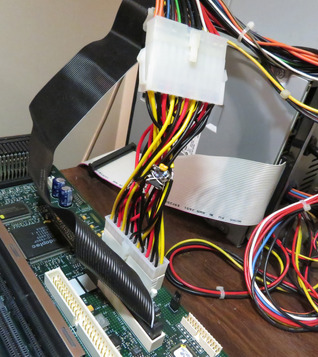

After figuring out the location of the motherboard's header for speaker and power_on, I installed a Xeon PII 450, a terminator card, the CPU case fan, single stick of 256 MB ECC REG PC100 memory, floppy drive, and an AGP Diamond Fire Pro 1K (came with the Dell 410 Workstation). I am using a 300W AOPEN PSU attached to the re-wired ATX adapter, attached to the Dell MB.
