Features:
1.High light transmittance and good uniformity.
2.Light weight, compact, easy to install.
3.The stripe gap can be customized.
Applications:
1.The concave & convex and crease defects on reflective glass,
mirror, glass, mobile phone film or other reflective surface inspection.

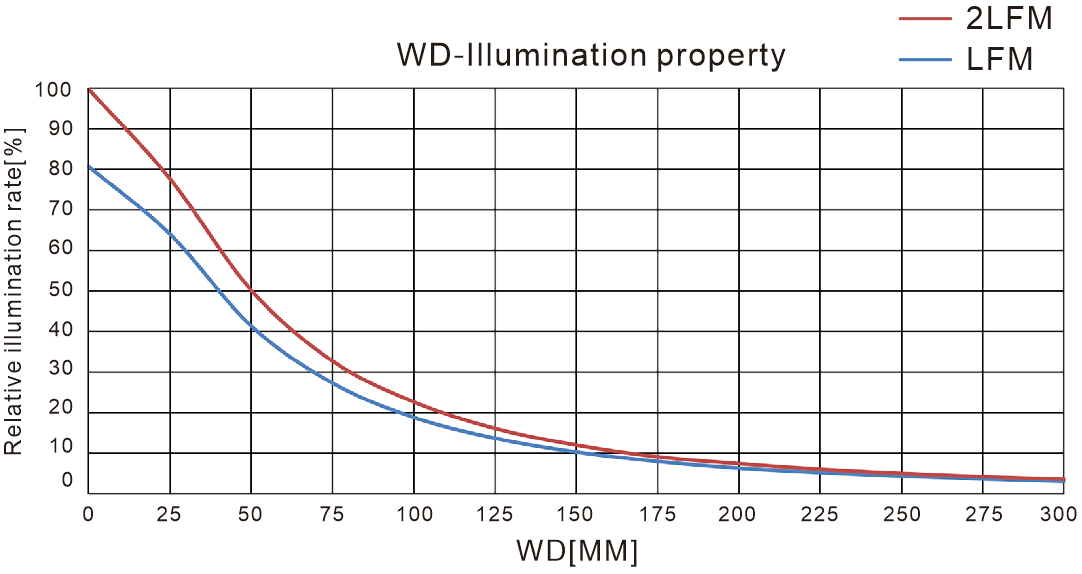

Illumination property diagram
Model:LTS-LFM100-W

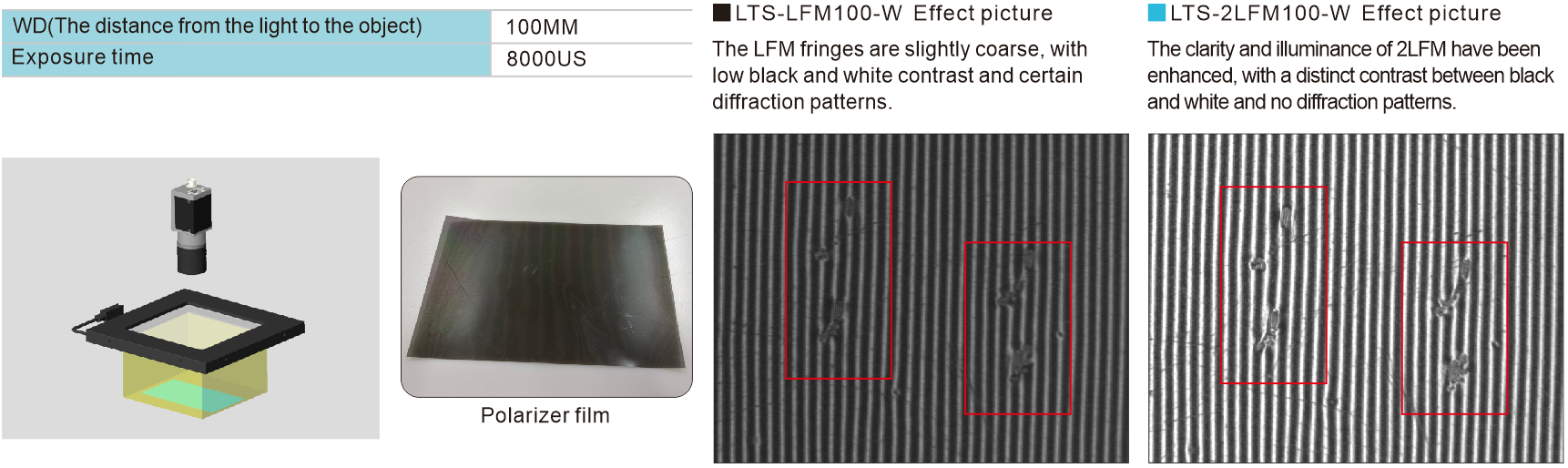

Imaging instance: concave & convex on plastic film inspection

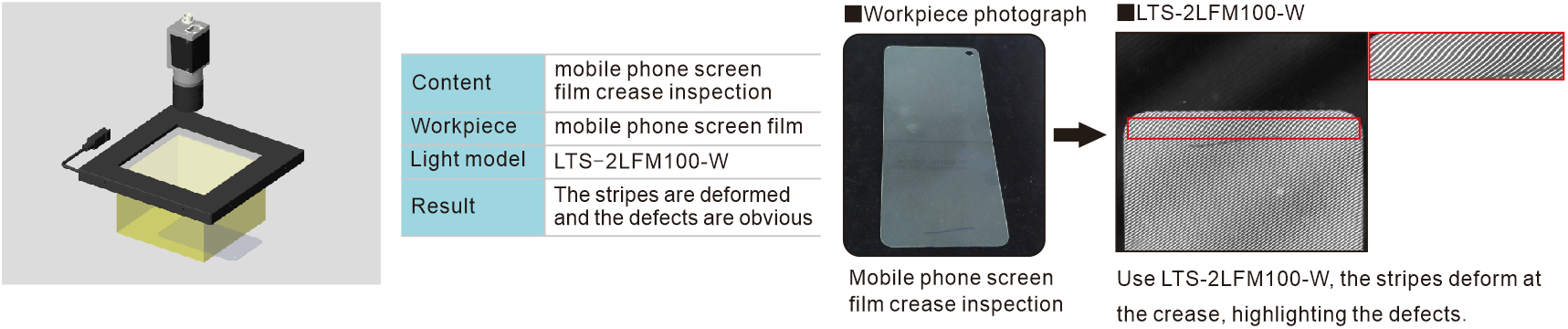

Imaging instance: mobile phone screen film crease inspection

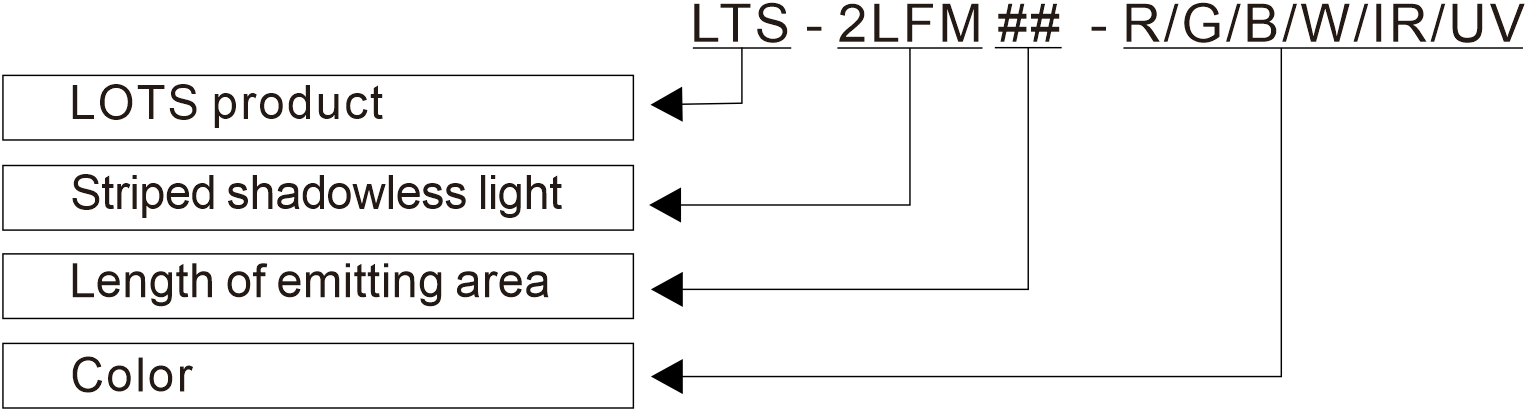

Coding rule
|
|
|
|
|
LTS-LFM100-R/BGW | ![]() ![]() ![]() ![]() |
L145xW145xH10(mm) | 24V | 15.4W/19.2W |
LTS-LFM150-R/BGW | ![]() ![]() ![]() ![]() |
L195xW195xH10(mm) | 24V | 23.1W/34.6W |
* UV & IR light can be customized as required. |
