Example: Distance (D) between 2 points with measuring accuracy (d) of 0.05 mm. Object size X = 48 mm (monochrome sensor, because color is not relevant here)

In the task, the distance (D) between the centers of both holes is determined with the measurement accuracy (d). Using these values, we then determine the parameter for selecting the right image sensor and camera.

The machine vision and industrial camera market is offering thousands of models with different resolutions, sizes, speeds, colors, interfaces, prices, etc. So, how do you choose? Let’s go through 5 simple steps which will ensure easy selection of the right camera for your application.

Note: Monochrome or color?Color sensors use a Bayer color filter, which allows only one basic color to reach each pixel. The missing colors are determined using interpolation of the neighboring pixels. Monochrome sensors are twice as light sensitive as color sensors and lead to a sharper image by acquiring more details within the same number of pixels. For this reason, monochrome sensors are recommended if no color information is needed.

Contrast refers to the difference in color or light intensity between an object and its background, enhancing visibility. A well-functioning microscope requires ...

We looked at the available image sensors and the closest is a model with resolution 3092 x 2080 => 6.4 megapixel image sensor.

For a correct calculation, it is necessary to check the resolution, not only in the horizontal but also in the vertical axis.

Note: The newest rolling shutter sensors have a feature called global reset mode, which starts the exposure of all rows simultaneously and the reset of each row is released simultaneously, also. However, the readout of the lines is equal to the readout of the rolling shutter: line by line.

The original and functional accent to the bathroom. Rotating shoe storage with mirror. Vintage medicine cabinet from Dotcomgiftshop | Bathroom cabinets |.

Single component, UV curing adhesive used for temporary bonding of lenses to metal polishing mounts or where bonded components need to be easily separated in ...

In order to add a free sample product to the cart we will need to remove all the normal products from the cart. Are you sure you want to continue

Object size (O) can be describe horizontally as well as vertically. Some of sensors are square and this problem is eliminated 😊

Vision code readers provide fast read rates, detect codes from multiple directions, read multiple codes simultaneously, and store extensive information

The main function of led light diffuser film is to reduce light transmission by scattering the light, thereby producing an even light distribution. These films ...

30mm lengthin cm

Small, handy and cost-effective, USB 2.0 industrial cameras have become integral parts in the area of medicine and microscopy. You can get a wide range of different variants, including with or without housings, as board-level or single-board, or with or without digital I/Os.

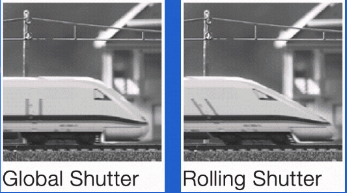

Rolling shutter: Exposes the motive line-by-line. This procedure results in a time delay for each acquired line. Thus, moving objects are displayed blurrily in the resulting motive through the generated “object time offset” (compare to the image).
