As an alternative to buying and assembling separate optical fiber, connectors, and furcation tubing, Thorlabs also offers pre-built patch cables from stock using the connectors sold on this page. See the table to the right and the Patch Cables tab for a listing of patch cables available that incorporate connectors sold on this page.

Thorlabs offers strain relief boots and dust caps that can be purchased separately from our fiber connectors. The black strain relief boots sold here include a crimp sleeve and are compatible with FC/PC and FC/APC connectors and Ø2 mm furcation tubing (our stock connectors do not include a boot compatible with Ø2 mm tubing).

Effiluxprojector

These connectors also feature a low 0.25 dB connector-to-connector typical loss. However, significant insertion loss can result when mating to different styles, and because of this, we recommend that FC/APC connectors be mated only with other FC/APC connectors. If your application requires that you switch connector types, we recommend using a hybrid patch cable.

Effiluxlighting

As an alternative to buying and assembling separate optical fiber, connectors, and furcation tubing, Thorlabs offers pre-built patch cables from stock using the connectors sold on this page. Stocked patch cables are available with single mode or polarization-maintaining single mode optical fiber, as indicated by the table to the right. Additionally, Thorlabs offers Custom Patch Cables with same-day shipping, which can be constructed using the connectors sold on this page.

The CAPF Clear Plastic Dust Caps are for use with all Ø2.5 mm fiber connector ferrules and FC connectors, and the CAPFM Threaded Nickel-Plated Brass Dust Caps are for use with narrow-key FC connectors. Dirt on the fiber tip can result in permanent damage to the fiber connector, which can increase coupling losses or create undesirable mode structures in the output light. To prevent damaging the connectorized fiber, clean before each use with an appropriate fiber and connector cleaning product and use a fiber connector cap to protect the end face of the connectorized fiber when it is not in use.

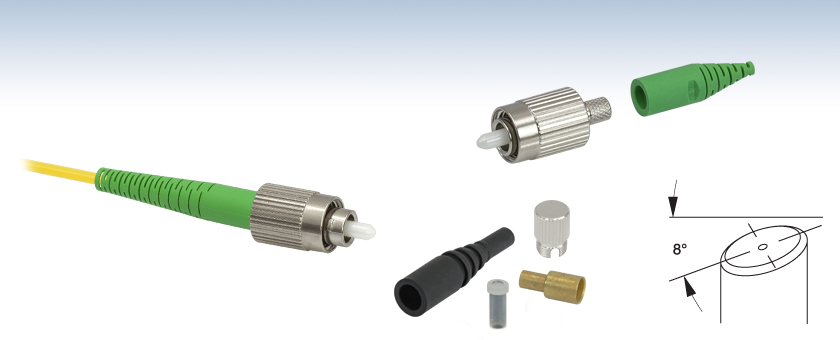

Threaded FC/APC connectors are designed for high-vibration environments and minimal back reflections. The "APC" stands for "angled physical contact" because these connectors allow the surfaces of two connected fibers to be in direct contact with each other and because the fiber end is polished at an angle to prevent reflected light from traveling back up the fiber. These FC/APC connectors have an 8° pre-angled ceramic ferrule, which when properly polished, results in a typical return loss of 60 dB. Each connector package includes a fiber connector cap and plastic boot.
