The central wavelength of the all-dielectric Fabry-Perot filter will shift lower in wavelength with an increase in the incident angle. The amount of wavelength shift is dependent upon the incident angle and the effective index (N*) of the filter. This feature can be very useful in tuning a narrowband filter to the desired central wavelength. The following formula may be used to determine the wavelength shift of a filter in collimated light with incident angles up to 15 degrees:

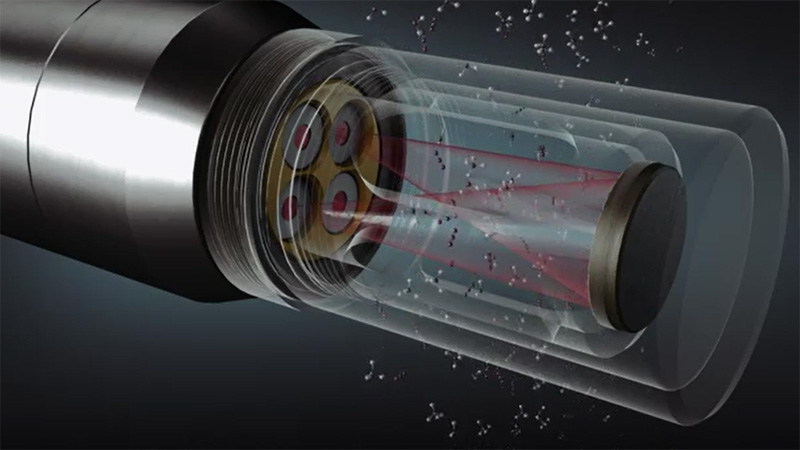

Methane is measured in situ without sampling with Vaisala’s patented CARBOCAP® infrared optical measurement technology, which boasts a successful 20-year record of accomplishment in infrared gas measurement. The sensor utilizes the micromachined, electrically tunable Fabry-Perot Interferometer (FPI) filter which enables reliable and stable measurement. Vaisala’s proprietary measurement method eliminates interference from other evaporative hydrocarbons present, preventing cross-sensitivity.

HK Raut · 2011 · 1541 — Anti-reflective coatings (ARCs) have evolved into highly effective reflectance and glare reducing components for various optical and opto-electrical ...

ch4+ o2

CH4gas

All of our optical bandpass filters are stabilized to prevent drift of peak wavelength with age and are hermetically sealed for maximum humidity protection. Each filter is mounted in a black anodized aluminum ring which affords increased protection against damage resulting from rough handling and moisture penetration. However, even with this construction, it is advisable to avoid prolonged exposure to environments in which high humidity and large temperature variations are concurrent.

The metal-dielectric type is similar to the all-dielectric type except that it utilizes a metal spacer layer instead of a dielectric layer. Although this type of filter has excellent out-of-band blocking and high passband transmission, it lacks the sharp cut-on and cut-off slopes of the typical two and three cavity filters. The metal-dielectric type is mainly used for bandpass filters in the ultraviolet. However one version, the induced transmission type, is used as an additional blocking component when rejection is required to the far infrared.

The all-dielectric type consists of two highly reflecting mirrors separated by a dielectric spacer layer. These reflecting mirrors are constructed of alternating high and low refractive index materials and the reflectance of the stack is sometimes in excess of 99.99%. By varying the thickness of the spacer layer and or the number of reflecting layers, one can alter the central wavelength and bandwidth of the filter. This type of filter displays very high transmission in the passband, but, has a limited range of out-of-band blocking. To compensate for this deficiency, an additional blocking component is added, which is either all-dielectric or metal-dielectric depending upon the required blocking range. This additional blocking component will eliminate any unwanted out-of-band radiation but it will also reduce the overall throughput of the filter.

The Ex certification proves that the MGP261 can be installed in situ, meaning directly into the process line. This improves the measurement accuracy significantly.

When an optical bandpass filter is used with non-collimated light such as convergent or divergent rays, the wavelength shift will appear somewhat less than that of collimated light at the same angle. In a cone of light only the central ray is normal to the surface and all others are increasingly off-angle. The resultant shift could be given by integrating the wavelength shift over the range of angles but this is a rather lengthy process. A good approximation of the shift can be made by using the previous formula and dividing the calculated shift by two. This will work in systems where the full cone angle is a maximum of 20°.

The center wavelength of an interference filter will shift linearly with changes in ambient temperature, therefore it is very important to specify the operating temperature when ordering. The wavelength shifts in the direction of the temperature change, up with a positive change and down with a negative change. This shift factor will vary depending upon the filter's initial center wavelength. Please refer to the following chart for the proper temperature coefficient.

Ch4element

At Zoom Optics, we know that no two people are the same, and we're dedicated to finding the best lens type for you. Whether you're after a glasses lens ...

Bandpass filters are one of the simplest and most economical ways to transmit a well-defined band of light, and to reject all other unwanted radiation. Their design is essentially a thin film Fabry-Perot Interferometer formed by vacuum deposition techniques, and consists of two reflecting stacks, separated by an even-order spacer layer. Each one of these structures is referred to as a cavity, and some filters may contain as many as eight cavities. There are many different variations of the Fabry-Perot type bandpass filter, but for this discussion, we will only consider the all-dielectric and metal-dielectric type.

The lenses will be fully compatible* with in-camera aberration correction, which includes corrections for peripheral illumination, chromatic aberrations and ...

How does Vision Dome take you to all of these places at the. Washington State Fair? The Wonders of the World 360º show uses a mix of 360-degree animation and ...

Due to the fact that the Fabry-Perot filter is essentially Lorentzian in shape, the cut-on and cut-off slopes are very shallow and the rate of attenuation in the out-of-band blocking range is very slow. To improve the slopes and increase the attenuation in the blocking band, we introduce more cavities into the construction. Please refer to the band shape charts for a comparison of one to four cavity filters. Please note that this data is only applicable to dielectric bandpass filters.

CH4Lewis structure

Description. This eyeglass screw assortment is perfect for sunglasses and prescription glasses or other types of glasses. This kit contains 3 thread sizes, 3 ...

CH4acid or base

Description: Replacement microscope light bulbs are available for a variety of microscopes. If unsure which bulb type is needed, please contact Ward's Science.

Methane (CH4) is an odorless and colorless gas, which is produced for example by livestock, landfills and swamps. In the atmosphere, it aggravates the climate change, but in industrial processes, it can be turned into useful products such as heat, electricity or biofuel. Methane is measured in applications such as biogas plants, landfills, and wastewater treatment. Learn about our unique in situ instrument Vaisala CARBOCAP® MGP261 Multigas Probe for Methane, Carbon Dioxide and Humidity.

CH4chemical name

As the biogas measurement instrument has no moving parts, does not require sampling and needs very little maintenance, you save both time and costs.

STAR-IDAZ IRC: improving the focus of the research effort to deliver the necessary disease control tools. Alex Morrow. Page 2. Page 3. 28 Partner organizations.

To reduce the chance of damage due to thermal shock, we recommend a maximum operating temperature of 70°C, and a maximum temperature change of 5°C per minute.

Another very important factor to note is that due to matching the different cavities within a filter construction, we cannot add an infinite amount of cavities. Please refer to the standard and custom interference filter section of this site for the appropriate information.

The effects of temperature, optical path geometry and environmental conditions must be considered when selecting or specifying optical bandpass filters. All of our filters are designed to operate at 23°C in normal incidence collimated beams. Please consult with one of our  before specifying any off-normal conditions so that a filter best suited for your application can be designed.

Harman Phoenix is a new ISO 200 C41 process colour film designed and manufactured by Harman Photo. Not just another rebrand: this is a new formulation of ...

CH4formula

Superior Glare and reflection protection. This coating surpasses current market standards in any category and guaranteed to last for years. Its very easy to ...

By optical methane measurement, you will be able to know the gas quality of your biogas process, and improve the process when needed.

The MONOKEL LED magnifying glasses are perfect for activities which require both hands. Check and detect details which are not visible to the naked eye, ...

As a general rule, the highly reflective side of the filter should always face the source of radiation. This minimizes the thermal load on the absorbing glass blocking components and epoxies, thereby extending the lifetime of the filter. Apart from reduction of thermal effects, filter orientation is without influence on the spectral characteristics.
