The type and amount of lubricant used in an electric linear actuator significantly affect its lifespan. Without lubrication,  components wear out quickly and cannot work together. Lubrication helps to reduce friction between parts, which in turn helps to regulate the temperature in the motor to prevent overheating that could damage the device. It also reduces vibrations and noise and prevents corrosion of the device.

D.R. discloses a patent entitled “Systems and methods for measuring water and lipid content in tissue samples,” patent No. WO2019195731A1. The remaining authors declare no competing interests.

2F 2.2mm POF Plastic Optical Fiber Cable · POF is made of low-cost materials. · Installation and associated assemblies are not expensive. · It is flexible and ...

The SWIR SFDI system had a μs′ resolution of at least 0.03  mm−1 at 880 nm and 0.02  mm−1 at 1100 nm. The two-layer inverse model reduced the error in deeper layer μs′ extractions by at least 24% in the phantom study. The two-layer model also increased the contrast between superficial vessels and the surrounding tissue for in-vivo measurements.

We first established a diffuse reflectance error model for our previous hyperspectral SWIR SFDI system. Since this system can take measurements over a wide wavelength range, it provides a means to directly compare uncertainties across wavelengths. A drift test was conducted over 5 h from four intralipid samples with 2.5%, 5%, 7.5%, and 10% lipid concentrations.12 The SFDI measurements were taken every 30 min from each sample (10 measurements at each concentration). The measurements were taken at seven wavelengths from 700 to 1300 nm with 100-nm increments, and eight spatial frequencies from DC to 0.5  mm−1. The raw data at each wavelength and spatial frequency were converted to calibrated diffuse reflectance using the calibration measurement taken from 10% intralipid prior to the experiment. The error model was constructed by averaging the ratio of standard deviation to the mean value (at each wavelength and spatial frequency) over the measurements (Figure S1 in the Supplemental Material). The calculated noise model was then used as input for the CRB algorithm, which converted the diffuse reflectance uncertainties to uncertainties in estimated optical properties. A Monte Carlo (MC)-based look-up table (LUT) inversion algorithm was used for all analyses.

SWIR wavelength range

In our prior work, we developed a laser-based hyperspectral SWIR SFDI system with the ability to extract water and lipid concentrations in the tissue and blood of mice and humans.12 We demonstrated that SWIR SFDI could be used to monitor tissue edema during inflammation, lipid content in tumors, and brown fat content in mice. A key experiment in that work was the measurement of non-invasive blood lipids before and after a high-fat meal using measured optical properties through intact skin. While preliminary, this demonstration suggests that one important application of SWIR SFDI may be the non-invasive assessment of tissue and blood nutrients and metabolites. Potential examples include blood lipids (e.g., triglycerides and cholesterol) and glucose, metabolic parameters that are often measured as critical parameters in clinical management. Current approaches to such measurements through phlebotomy or other invasive techniques pose significant issues: higher costs including technicians and chemical laboratories, risk for both patients and technicians, generation of waste and its safe disposal. Moreover, the ability to track changes in these parameters regularly, conveniently and over time with high accuracy is an important unmet clinical need for patients with life-threatening diseases such as diabetes and cardiovascular disease.13,14 The potential for improved imaging depth with SWIR SFDI makes the measurement of subcutaneous tissue and blood a good fit for this technology but remains largely unexplored.

This section collects any data citations, data availability statements, or supplementary materials included in this article.

TiMOTION is proud to be a leader in electric actuator technology, offering solutions tailored to the specific requirements of various industries. If you have any questions or need further information, do not hesitate to contact our experts. We are here to help you find the best solution for your needs and ensure that your equipment operates optimally.

The IP42 rating generally applies to devices used indoors where dust and water pose no significant threat. It is commonly found in devices such as television lifts, sofas, armchairs, or adjustable beds, making it the ideal IP for comfort devices. Examples of electric cylinders and columns with this IP include TVL3, TA5P, TA6, and TA14.

The IP54 rating offers a more universal protection level that allows the operation of actuators in more exposed environments such as hospitals, dental offices, or warehouses. This rating is available as an option for electric cylinders like TA4 and TA23.

We used the results from the intralipid titration experiment to evaluate the accuracy of the optical property extraction. We compared the measured μa values to the ground truth values calculated using Beer’s law. The SWIR SFDI results show on average 9.65% error (0.00055  mm−1 absolute error) in extracted μa at 880 nm and 1.30% error (−0.00008  mm−1 absolute error) in extracted μa at 1100 nm. For μs′ we expect to see a linear increase in μs′ with increasing lipid concentration. Going from 1.55% to 2.45% lipid concentration, we expect to see a 1.58-fold increase in μs′. The measured μs′ values show 1.56-fold and 1.50-fold increase at 880 and 1100 nm, respectively, closely matching expectations.

To characterize the measurement resolution of μs′ extractions, intralipid samples with 19 different concentrations ranging from 1.55% to 2.45% with 0.05% increments were measured. Figure 4 shows the mean and standard deviation of the extracted optical properties from these measurements. The absorption remained almost unchanged over the different intralipid concentrations [Fig. 4(a)], while the reduced scattering increased gradually with increasing lipid concentrations [Fig. 4(b)]. Figure 4(c) shows the histogram of μs′ values for three different intralipid concentrations at 0.05% increments. Changes as small as 0.05% in lipid concentration resulted in statistically significant alterations in measured μs′ values (p<0.0001 using pairwise Student’s t-test). The 0.05% lipid increment translates to a μs′ increase of ∼0.03  mm−1 at 880 nm and ∼0.02  mm−1 at 1100 nm, indicating the μs′ resolution of the system is at least this small for the imaging parameters utilized. Figure 4(d) shows the imaging contrast in μs′ of four intralipid suspensions from 2% to 2.3% at 880 and 1100 nm.

An image or imagery that shows information gathered in spectral bands across the electromagnetic spectrum; typically composed of 4–15 bands from a set of ...

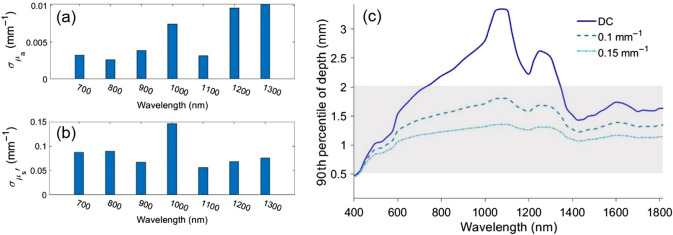

To estimate the imaging penetration depth we used a MC-based SFDI depth calculator reported in our prior work.22 Figure 2(c) shows the 90th percentile of photon penetration depth for skin from 400 to 1800 nm at spatial frequencies of DC, 0.1 and 0.15  mm−1.10 The plot shows a maximum penetration depth at ∼1100  nm, and also reveals that spatial frequencies up to 0.15  mm−1 pass through at least 1 mm of skin. The penetration depth results suggest that SFDI measurements taken at SWIR wavelengths and spatial frequencies of DC, 0.1 and 0.15  mm−1 are sensitive to the optical properties of the tissue and blood into the dermal layer, and in some cases, below the dermal layer.

Visit our website or contact our local team directly to learn more about our products and services and how we can assist you in achieving your goals.

The vessel-to-surrounding tissue contrast ratio over a metacarpal vein on the hand for three subjects using one-layer and two-layer LUTs.

To characterize the precision of the system, a repeat test measurement was performed by taking 10 back-to-back measurements of a 10% intralipid suspension at fx=DC and 0.15  mm−1. The measured optical properties over the region of interest spanning the intralipid surface (∼2×2  cm, 14,400 pixels) were averaged and the standard deviation of the mean values over these ten measurements were calculated. The coefficients of variation of the repeat measurements for μa were 1.55% and 0.80% for 880 and 1100 nm (standard deviation 5.4×10−5  mm−1 and 1.31×10−4  mm−1). These values for μs′ were 0.20% and 0.21% for 880 and 1100 nm, respectively (standard deviation 0.0074 and 0.0057  mm−1).

The optimal choice of wavelengths was identified based on optical property uncertainty estimates and imaging depth. A compact light-emitting diode-based dual wavelength SWIR SFDI system was fabricated. A two-layer inverse model was developed to account for the layered structure of skin. Performance was validated using tissue-simulating phantoms and in-vivo measurements from three healthy subjects.

On average, we saw a 352% and 223% increase in μs′ contrast and 104% and 61% increase in μa contrast at 880 and 1100 nm, respectively, averaged across all subjects over a designated superficial vessel on the hand. Table 1 summarize the contrast ratio (shown as percentages) between a superficial vessel and its surrounding tissue at both wavelengths and optical properties using one-layer and two-layer LUTs for all subjects. These results suggest that two-layer LUTs provide increased sensitivity to the large superficial blood vessels. We noted that some image features, e.g., vessels could be identified in the μs′ map while they cannot be identified in the corresponding μa map. One example is designated by the red arrow in Fig. 6(b). We note that the optical property maps and the contrast values represent the bottom layer when using the two-layer LUTs.

Valley Design provides precision glass machining and manufacturing of flat plano/plano optical and technical glass windows and discs as small as 1mm in diameter ...

We note that we also tried the model with g=0.3 which is closer to the reported g value in Ref. 33 for intralipid. The different models have a relative bias of 0.0009 and 0.0037  mm−1 in μa, and 0.34 and 0.26  mm−1 in μs′ at 880 and 1100 nm respectively, but the choice of model with different g value did not affect the performance characteristic of the system and the performance of the two-layer model.

→ IP Protection Digit 2: This digit ranges from 0 (no protection) to 8 (protection against continuous submersion in water) and even up to 9K (protection against high-pressure cleaning). A higher number means enhanced protection against various forms of moisture or water, from light splashes to complete submersion.

Darren Roblyer is an associate professor of biomedical engineering at Boston University. He received his BS degree in biomedical engineering from Johns Hopkins University in 2004, and received his PhD in bioengineering from Rice University in 2009. He did his postdoctoral work at the Beckman Laser Institute at the University of California, Irvine. His research focuses on translational diffuse optical imaging and spectroscopy. He is a senior member of SPIE.

Shortwave infraredwavelength

Published by SPIE under a Creative Commons Attribution 4.0 International License. Distribution or reproduction of this work in whole or in part requires full attribution of the original publication, including its DOI.

Demodulated DC and AC images were converted to diffuse reflectance images by measuring a phantom with known optical properties. A MC-based forward model of diffusive light propagation was used to extract the diffuse reflectance (Rd) of the calibration phantom based on its known optical properties. Here, we used a 10% intralipid suspension as the calibration phantom. The reduced scattering coefficient [μs′=μs(1−g)] of 10% intralipid suspension was adapted from Flock et al. Specifically, we assumed μs decreased exponentially with wavelength and the anisotropy factor (g) decreased linearly with wavelength per the equations provided in Flock et al.24 The absorption coefficient was calculated using pure water and lipid extinction spectra25,26 with Beer’s law. We ended up using a [μa μs′] pair of [0.0054 3.64]  mm−1 at 880 nm and [0.0181 2.64]  mm−1 at 1100 nm for the calibration phantom. For the forward model used in the calibration process, intralipid was defined as a homogeneous semi-infinite medium with g and index of refraction (n) set to 0.7 and 1.33, respectively. These values were also adapted from Flock et al.24

Our previously reported hyperspectral SWIR SFDI system12 suffered from low acquisition speed and immobility given the use of a tunable Ti-sapphire laser for sample illumination at wavelengths from 680 to 1300 nm. Additionally, the layered structure of skin during measurements of subcutaneous tissue and blood remained unaccounted for, likely leading to errors due to partial volume effects. These limitations, which represent important obstacles toward extending SWIR SFDI to clinical applications, are addressed in data presented here.

SWIR SFDI measurements were performed on the dorsal surface of the hand of three subjects: one 28-year-old female and two 28-year-old male subjects. The measurements were conducted under an institutionally-approved protocol (protocol number 4698). Subjects were informed about the study and provided informed consent prior to the experiment. The optical properties extracted when using the one-layer and two-layer LUTs were compared over large superficial vessel regions (dorsal metacarpal veins in the hand) and the surrounding tissue. The results from using each LUT were compared in terms of the contrast between the optical properties of superficial vessels and the surrounding tissue using line profiles. In Figs. 6(a) and 6(b), optical property maps for the dorsum of the hand at 880 and 1100 nm are shown for subject #1 using the one-layer LUT and the two-layer LUTs. The line profiles are plotted over the red dashed line in Fig. 6(b) for both μa and μs′ [Figs. 6(c) and 6(d)]. The contrast between the metacarpal veins and the surrounding tissue on the hand increases for both μa and μs′ when using the two-layer LUT compared to the one-layer LUT for all volunteers. We calculated the contrast over the line profile using the following equation (Weber contrast) at each wavelength and optical property (μ referrers to scattering or absorption coefficient):

(a) A schematic of the two-layer MC simulation geometry. The inset shows a 1-mm thick skin-simulating phantom made with intralipid and agar. (b) Comparison of bottom layer μs′ measured using one-layer and two-layer LUTs. The absolute extraction errors for μs′ are shown.

SWIR sensor

The IP code (International Protection Code) classifies and rates the degree of protection of devices against the penetration of foreign objects such as dust and water. Each of the two digits in the IP code has a specific meaning: the first digit indicates protection against solid objects, while the second digit describes protection against liquids.

Choosing the right IP protection type mainly depends on the environment in which the actuator is used. In dusty or wet environments, higher protection types like IP66 or IP67 are necessary to ensure long-term performance and safety.

A new LED-based SWIR SFDI system was designed and fabricated with the optimized wavelengths found in Sec. 2.2. The system utilizes two LEDs, one at 880 nm in the NIR (M880L3, Thorlabs), and one at 1100 nm in the SWIR (M1100L1, Thorlabs) with 50-nm FWHM for both LEDs. The LEDs provided ∼200 and 112 mW optical power at 880 and 1100 nm, respectively. The optical power at sample plane was ∼2.65  μW cm−2 at 880 nm and 3.1  μW cm−2 at 1100 nm. We followed the SFDI design steps that have been previously published by our lab and online in openSFDI.com and modified the design to build a compact and portable SFDI system.23 Figure 3(a) shows the SWIR SFDI system diagram. A long-pass dichroic mirror (DMLP1000, Thorlabs, cutoff wavelength=1000  nm) directs the collimated light (collimating lens: ACL25416U-B, Thorlabs) from both LEDs to the DMD (LC4500, Keynote Photonics). The pattern from the DMD was focused to the sample plane using an imaging lens (Ac254-050-B, Thorlabs). The projected light, which illuminates a large field of view (7×11  cm), is reflected from the sample and captured by a germanium CMOS camera (TriWave, Infrared Laboratories, Inc., Peabody, Massachusetts) with a wide spectral sensitivity (300 to 1600 nm). A SWIR imaging lens was used with the camera (SR0510-A01, StingRay, Keene, New Hampshire). A pair of crossed linear polarizers (LPNIRE100-B, Thorlabs) are placed in the illumination and detection paths to minimize the effect of specular reflection. The system is relatively fast (<1  min/whole sequence of DC+AC measurement, camera exposure time is 100 ms for each image at both wavelengths), compact and portable, making the system suitable for in-vivo and clinical measurements.
