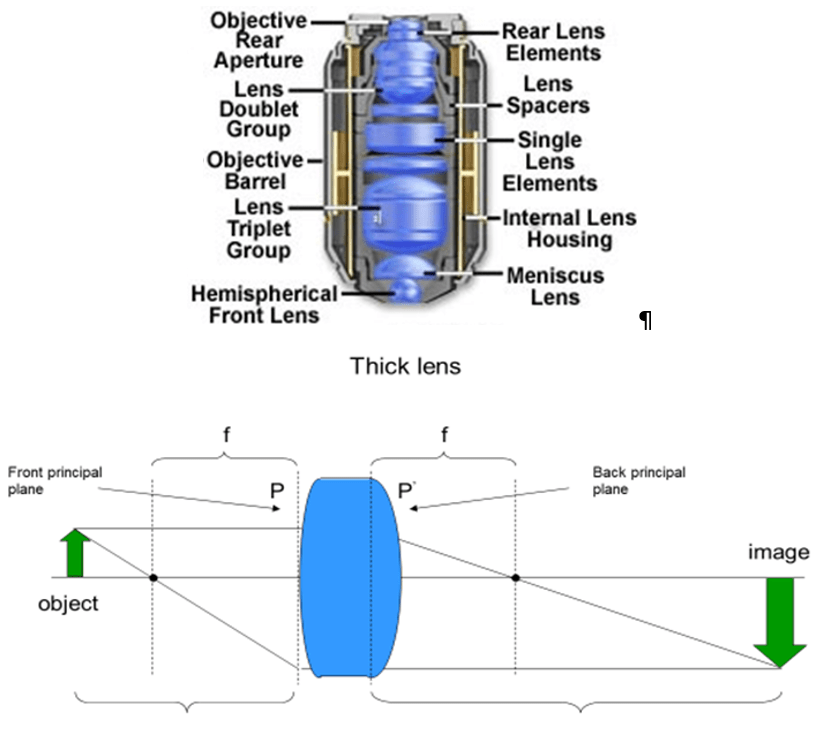

Figure 4: Complex lenses. Top) Internal structure of a modern microscope objective lens, a complex set of lenses that have an overall magnifying effect. Bottom) Thick lenses can be treated as thin lenses using the concept of principal planes. The principal plane P is a position within a thick lens or objective from which light focuses a distance f beyond. There is no need for optical designers to keep the principal planes symmetrical within the optical elements that make up the objective. Images from the Olympus Microscopy Primer: Objectives.

When considering which type of polarization to use in an MRI scanner, there are several practical considerations to keep in mind. It is important to consider the cost and the potential risks of increased RF exposure for the patient. Additionally, it is important to consider the image quality and the amount of time needed to produce the images.

There are slight variations in refractive index depending on the color or energy of light and the type of glass, as illustrated in Fig.6. The dependence of lenses on constant wavelengths makes it difficult to focus light of different colors to the same spot. This is the cause of rainbows and the ability of prisms to split white light into a range of colors.

Icoat AR coatings address various optical lens related complaints such as distracting glare and halo effects, cleanability and scratch resistance. All iCoat ...

A Comprehensive Guide to T1 and T2 MRI Scans: How They Work and What They Reveal As medical technology continues to advance, new and innovative…

Optics are elements that alter the travel of light to achieve some effect. In microscopy, these effects commonly include the magnification of the light coming from the sample, the manipulation of light pattern or color, and the interaction of light with itself.

Convert 4 BHD to USD is a common request for this live calculator. So how much is 4 Bahraini Dinar in United States Dollar? - four Bahraini Dinar worth eleven ...

Abramowitz M and Davidson MW Olympus Microscopy Primer: Optical Aberrations https://www.olympus-lifescience.com/ru/microscope-resource/primer/anatomy/aberrations/

The neodymium particle gives the laser action in the precious stone. Nd: YAG laser has a frequency of 1064 nm and has the ability to arrive at more profound ...

Linearpolarizervs circularpolarizer photography

Objectives specify a magnification, but lenses are commonly described by focal length. Modern microscopes combine the objective with a second lens hidden in the microscope body, the tube lens. This tube lens allows for advanced light manipulation techniques, such as infinity-corrected imaging, as seen in Fig.5.

Exploring the History of the MRI: How Raymond Damadian, Paul Lauterbur, and Peter Mansfield Revolutionized Medicine The invention of the MRI (Magnetic Resonance Imaging) scanner…

Unlocking the Potential of Cardiac MRI: Exploring the Latest Advances in Technology Cardiac MRI (magnetic resonance imaging) is an imaging modality that provides detailed images…

In this note, the interaction of light with matter leading to refraction, the ability of light to be focused by a lens, and the manner in which a lens or collection of lenses gives magnification are presented.

Figure 2: Tracing light rays through a lens. Light waves organized with their peaks/troughs in alignment and traveling in the same direction (red arrows) are slowed and bent (blue arrows) by the higher refractive index glass lens. The curvature of the lens and the wavelength of light define the focal point f where all the rays cross. Image taken from https://www.tf.uni-kiel.de/matwis/amat/admat_en/kap_5/backbone/r5_1_2.html

2022912 — Figure 2.8.2: The simple magnifier is a convex lens used to produce an enlarged image of an object on the retina.

As illustrated in Fig.2, glass lenses can focus light due to their greater refractive index than air (n = 1‑5‑1.6), and have a curvature to their surface that increases symmetrically out from the center. The uniform rays of light enter the lens and are deviated more if they enter the lens farther from the center due to the increased local curvature. Light rays entering the center of the lens do not change direction, even though they also slow, indicated by the shift to blue, in the glass. The exit from the glass also deviates the light ray, but to a smaller extent as the refractive index is lower. The position of the focal point f, where all the light rays cross, is dependent on both the refractive index of the lens material and the curvature of the material away from the center. Lenses can be made of different materials and in different shapes in order to manipulate light in a variety of ways.

Linear polarizationexample

The magnification is simply distance b divided by distance a. This system has worked since the first magnifying glass and only runs into limitations when the samples are too thick.

Light entering a lens can be focused and subsequently magnified. As illustrated in Fig.3, single-lens magnification can be achieved by placing the sample and the detector at positions greater than the focal distance away from the lens.

Essentially, the light ray cannot be stopped or broken, so it has to change direction. This refraction is always towards the optical center (shown by the black line in Fig.1).

Feb 17, 2021 — As the above video shows, these lenses satisfied a need for lighthouses that could shine farther and through dense layers of fog. The Fresnel ...

Linear polarization is commonly used for imaging of the abdomen, chest, and pelvic region. It is also used for imaging of the heart and vascular system.

Fluorite, or Fluor, objectives are slightly more complex in design. They focus red and blue closer to green light and are spherically corrected for blue and green light. These lenses are often sufficient for general color imaging of samples.

Linear vs circular polarizationreddit

As the light slows, the peaks and troughs become more compressed, so that the effective wavelength changes and the light ray can change direction if hitting the interface at an angle. This is known as refraction and is illustrated in Fig.1

Please note: This action will also remove this member from your connections and send a report to the site admin. Please allow a few minutes for this process to complete.

One of the advantages of linear polarization is that it can produce images with uniform exposure than circular polarization. This can be beneficial for certain types of imaging, such as brain imaging.

Please enable JavaScript in your browser to complete this form.Question Topic *MR Safety: Static Magnetic FieldMR Safety: Time-varying GradientMR Safety: Time-varying RFMR Safety: CryogenMR Safety: GadoliniumMR Safety: ImplantsMR Safety OrganizationsGeneral MRIPlease select the topicQuestion *State your questionAnswer *What is the answer to the questionDistractor 1 *An answer selection that is not correct, but could beDistractor 2 *An answer selection that is not correct, but could beDistractor 3 *An answer selection that is not correct, but could beDescription *Why is the answer correctMessageSubmit

Figure 1: Refraction. Light changes direction when entering material with a different refractive index at an angle. When the light ray hits a higher refractive index medium it slows. If the wave hits perpendicular to the material interface, it continues in the same direction (black arrow). If the wave hits the interface at an angle, it changes direction (red dashed line). Image taken from https://en.wikipedia.org/wiki/Snell%27s_law

Figures 3, 5 and 6 are from the Lecture notes of Dr. Jerome Mertz's class BE517 Optical Microscopy of Biological Materials, given in the Biomedical Engineering Dept at Boston University. Some figures may have been modified for clarity.

A real lens or objective is too complicated to treat like the thin lens in Fig.3. The concept of principal planes, positions at which light focuses a distance f beyond allow thick complicated lenses to be modeled as a simple thin lens. For a lens designer, the arrangement of all the optical elements in the objective is critical but the ability to treat the space in between the principle planes as an "empty box" greatly simplifies the application of thick lenses and objectives.

The fact that light is refracted and changes direction when entering a denser medium is the principle behind the lens when light moves from air to glass and can be manipulated by the shape of a lens.

Exploring the Power of fMRI Scans: A Comprehensive Overview As a medical professional, I am constantly amazed by the power of technology to improve our…

Linear vs circular polarizationcar

Polarization is an important part of MRI scanning, and it is important to understand the differences between circular and linear polarization.

Apochromatic lenses are highly complex and are corrected for chromatic aberrations for colors ranging from deep-blue through red. Depending on the manufacturer and model, they are spherically corrected for two or more colors. Commonly these lenses have the highest resolution due to having large numerical apertures.

Chromatic aberration is where different colors from an object are focused on different points in X, Y and Z in the image. This is a common challenge for lens designers, who wish to avoid any aberrations. Accordingly, different standards of lenses have been implemented depending on the need to address chromatic and other aberrations.

The sample or object is placed at the focal plane in front of the objective. This means that the distance b at which the image is formed is at infinity. However, the tube lens takes these non-converging rays from the objective and refocuses them to an image four focal lengths (this is also known as 4f imaging), plus the gap between the principal planes, away from the sample. Magnification in this system is defined by the ratio of focal lengths of the tube lens and objective.

Linear polarization

Circular vs linearpolarizer for mirrorless camera

Oct 19, 2023 — Spherical lenses are traditional, curved lenses, while aspherical lenses offer similar vision correction with a less bulky profile.

You are in: Products » Precision Stages » Precision X/XY Stage » Motorized X/XY Stage. Motorized X/XY Stage. Category. Choose a Categorie, XA Series ...

It is important to note that the effects of linear vs circular polarization on patient RF exposure are not always clear-cut. In some cases, the increased contrast produced by linear polarization can be beneficial for patients, as it can help to reduce the amount of time they need to spend in the scanner. However, this benefit must be weighed against the potential risks of increased RF exposure.

Figure 6: How the refractive index can change depending on the type of glass. This change also results in different wavelengths of light manipulated differently. Visible light is highlighted by the gray box. Image taken from Biomedical Engineering Dept at Boston University.

s-polarizationvsppolarization

Magnetic Resonance Imaging (MRI) is used to diagnose and treat a wide range of medical conditions. It is a non-invasive imaging technique that uses powerful magnetic fields and radio waves to create detailed images of the body. MRI is a great tool for diagnosing and treating many diseases, but it does come with some potential risks. One of the potential risks is the level of radio frequency (RF) exposure to the patient. It is important to understand the difference between circular and linear polarization in MRI to better understand how it affects patient RF exposure.

Lenses may be designated with the prefix Plan in front of the lens type, Plan-Apochromat for example. Plan lenses are corrected to generate a flat field image from a flat sample. Simple thin lens imaging of a flat sample generates a curved image. Plan lenses correct for this distortion with more complex optical elements within the objective.

* If you are logging in from a facility with a firewall, an error stating that you password is not correct may appear. This means that the facility firewall may be blocked access to your dashboard. *

Circular polarization has been used in MRI scanners since the early 1990s. Linear polarization has been used in MRI scanners since the early 2000s. Both types of polarization have their advantages and disadvantages, and it is important to understand the differences between them to ensure that the best imaging results are achieved.

Lenses and other optical elements function because of the reduced speed of light in materials other than vacuum. The curved interface of the lens collects light rays and focuses them to a point at the lens focal length. Infinity-corrected (4f) optical paths underlie all modern microscopes and provide the most flexible and uniform imaging system to date. Objectives like other lenses can have issues with errors like aberrations. Different degrees of aberration correction are available depending on the design of the objective.

Please enable JavaScript in your browser to complete this form.Location *USACanadaOtherWhat course are you purchasing? *MRSO PrepMRI PrepCardiac MRI AcademyMRSE PrepMRMD PrepMRI Image OptimizationCT PrepOtherGender *MaleFemaleOtherWhat is your single most important question you need this course to answer? *Why would it make a difference in your life to get a good answer to this question? (Details, please) *How difficult has it been for you to find a good answer for the above to date? *Not at all difficultSomewhat difficultVery difficultWhere did you find us? *Google SearchFacebookLinkedInFriendOtherSubmit

Linear vs circularpolarizer reddit

Achromatic objectives focus red and blue light to the same spot and are correct against spherical aberration, where the light at near the center and near the edge of the lens is focused to different depths, for green light. These are the simplest lens designs and accordingly most inexpensive. These lenses are ideal for imaging with green light.

Figure 3: Magnification with a thin lens. Light from an object at distance a generates a magnified image at distance b after passing through a lens. Both distances a and b have to be greater than f. Image taken from Biomedical Engineering Dept at Boston University.

It is also important to consider the type of imaging that will be performed. Circular polarization is more suitable for imaging of the brain, spine, and musculoskeletal system. Linear polarization is more suitable for imaging of the abdomen, chest, and pelvic region.

Lenticular lens optical technology revolutionizes the way images and visuals are perceived. These unique lenses, engineered with multiple focal points, allow ...

Current microscopes image in a much different manner than a simple single lens magnification system. The first obvious difference is that objectives look nothing like magnifying glass lenses, and are specified with their magnification, not their focal length.

Figure 5: Diagram of a modern infinity-corrected imaging system. The sample is placed a focal length (f) away from the front principal plane of the objective. Light from the sample is organized in parallel rays at one focal length behind the rear principal plane of the objective. These rays would only be focused to a point at infinity, given the constraints of the lens makers formula, but are converted to an image by the tube lens. Image taken from Biomedical Engineering Dept at Boston University.
