Used open face it produced a Kelvin color temperature of 5728K, which was higher than when the light was used open face. This tells me that the Hyper Reflector is affecting the Kelvin color temperature accuracy. This is something you need to keep in mind when using the Hyper Reflector

The F10 Fresnel Attachment for the 600d Pro retails for $219.00 USD which makes it pretty good value for money. It should be available and shipping soon.

Des Weiteren 6 Buchstaben

Being able to measure SSI in advance and compare different lights you may be using together is a great way of finding out what lights will work together and what adjustments need to be made.

SSI (Spectral Similarity Index) was developed by the Sci-Tech Council of the Academy. SSI gives me the ability to set any light as a standard, or use predefined standards (such as CIE D55), and then give other lights an SSI score based upon how well they will match standards such as CIE D55 measure spectral response and compare it directly against an ideal light source.

The adjustment ring for the Fresnel operation isn’t made out of metal, instead, it uses a composite type material. The nice aspect about this is that this type of material is that certainly helps to dissipate heat.

Des Weiteren Rätsel

Now, there is a very legitimate reason why the F10 Fresnel is so big. When building a Fresnel for a COB LED fixture you need to match the size of that COB element to the size of the Fresnel. Often I have seen small-sized Fresnel attachments for these COB LED lights that are too small and they don’t work well. If the Fresnel attachment is too small in relation to the COB, the light getting to the Fresnel won’t be optimized. In this case, size does matter!

Above you can see lux readings taken at the corresponding distances from the center of the beam at a distance of 3m when the light was used at 45°.

The 10” Metal Barndoors also comes with a separate attachment so you can place the barn doors onto the 600d Pro without having to use the F10 Fresnel.

With the optional barndoors you can cut the light in a similar way to how you would if you were utilizing an HMI. This is a big deal because it is something a lot of other LED Fresnels struggle with. Above you can see some quick examples with the light set at 45°.

The barn door holders use three screws and there are lots of other screws utilized to hold the Fresnel together. I was impressed with the overall build quality.

Above you can see the spectral distribution of the 600d Pro when used with the F10 Fresnel Attachment. The spectral distribution is not overly full, but then again this is not an RGBWW fixture.

I was impressed with the F10 and 600d Pro combination. It allows you to achieve similar results to a lot more power-hungry and larger HMIs for a lot less money.

Die richtige Nase fürs Geschäft: Heute hat sie nicht mehr allein der Vertriebler, sondern ganz besonders das CRM-System. Denn es erfasst, qualifiziert und analysiert auf solider Datenbasis Chancen für Geschäftsabschlüsse:

So, let’s see how well the 600d Pro with the F10 Fresnel matches the 600d Pro when used Open face and with the Hyper Reflector. As you can see, they all match very well and this gives me the knowledge that you could use three of these lights with various attachments with no real-world perceivable difference. In saying that, I can’t guarantee consistency. The same light from the same manufacturer can sometimes give you different readings.

Like what we do and want to support Newsshooter? Consider becoming a Patreon supporter and help us to continue being the best source of news and reviews for professional tools for the independent filmmaker.

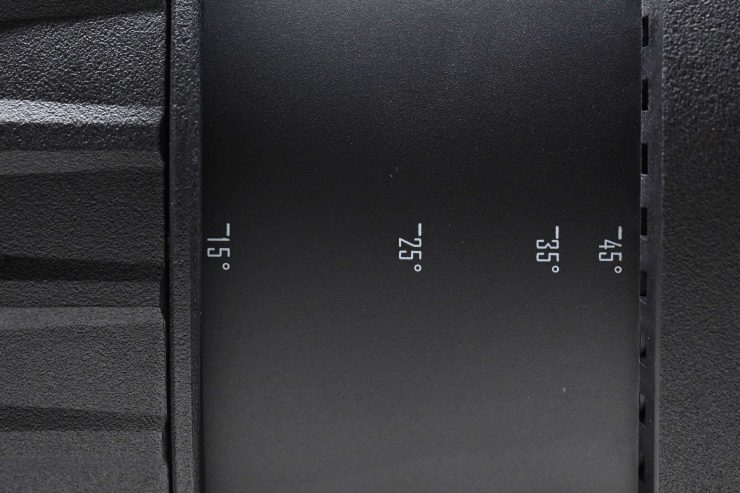

The F10 Fresnel allows you to adjust the beam angle from 15° to 45°. This is not a massive amount, however, it should suit most people’s needs.

Above you can see some quick examples of punching the light through a window and light curtain from outside to replicate sunlight coming in. I have taken pictures with the light on and with it off at the exact same camera settings.

Above you can see lux readings taken at the corresponding distances from the center of the beam at a distance of 3m when the light was used at 15°. You can see that the hotspot in the middle is around 9% brighter than if you take a reading 30cm to the left or right.

The main reason we want to record SSI scores is so we can see how well they match with other lights. I was curious to see how well the 600d Pro with the F10 Fresnel matched the ARRI Orbiter and Prolychy Orion 300. These are two very color accurate lights, so it will be interesting to see how well the 600d Pro matches. Below you can see the results.

Geschäfte tätigen

I’m not going to sugarcoat it, the F10 Fresnel is large and heavy. I independently weighed it at 3.9kg (8.59 lb). Just as a reference, the actual 600d Pro light head weighs in at 4.64kg / 10.23 lb (Including Yoke).

At a distance of 3m when used at 45° the F10 has a fairly good spread of light out to about 75cm from the center. The disadvantage the F10 has when compared to a lot of HMI fixtures is that they can usually go out to around 65°. That does allow you to create a much wider light source which is handy if you are in smaller spaces.

I was impressed with the lack of color fringing I was seeing when using the F10 fresnel, especially at wider beam angles. There is a little bit of color fringing when using the F10 at 15°, but it isn’t too bad.

The results show me that the light’s output is reasonably linear once you start dimming the fixture down. At 50% output, it had 46.8% less output than when it was used at 100% output.

As you can see the light’s Kelvin color temperature does not alter in any significant way when it is dimmed down especially to around 25%. Once you get below 25% there is a slight dip in the Kelvin color temperature, but it is marginal.

Now, these new barndoors won’t just work with the 600d Pro, they are also compatible with virtually any light that uses a Bowens mount, such as the,300d II, 300x, 120d II, etc.

The F10 is well priced for what it does and if you need a ton of output for your 600d Pro then it is a nice addition. For a lot of users, this combination will probably be overkill and something like a 300d would be a better option.

The F10 does come in its own carrying case, which looks like something you would put a snare drum in. The bag is ok, but in my opinion, it doesn’t reflect the quality of what is inside it.

If you are going to make a robust product that could be carried in rental houses you need to put it in an equally robust case. The case that comes with the F10 just feels a little cheap. Look, there’s nothing that wrong with it, but it could be a lot better.

What is also different compared to a lot of other LED fresnels is that the F10 utilizes another piece of glass at the back that throws the light at the front Fresnel element. Why is this important to know? Well, this design helps to maximize the amount of output you can get out of the 600d Pro.

Tätigkeitswort

As a comparison, something like a 2.5K HMI is probably only going to be around 20% brighter. This gives you an idea of just how bright the 600d Pro with the F10 Fresnel is.

SSI is useful to see how well different lights will play together. As the Sekonic C-800 Spectromaster can measure SSI, I decided to test out the Intellytech to see how it performed.

The scores show that the light does a reasonably good job of accurately replicating a CIE D55 source. A score in the low to mid-70s is very typical for a 5600K LED light.

I wanted to see how linear the light’s output was when using the F10 Fresnel, so I tested it at a variety of intensities. Below you can see the results.

When used with the F10 Fresnel Attachment the 600d Pro had an output of 31700 lx (2940 fc) when set at 15°. If my calculations are correct, that means that the light would have more than 340,000 lx at a distance of 1m.

The 600d Pro and the F10 Fresnel is more than capable of replicating sunlight coming through a window. I used this combination on a recent shoot and it had more than enough output to easily simulate bright sun coming through a window. Unfortunately, I can’t show that vision as the project is still ongoing.

The CC Index displays the CC correction value and whether any magenta or green need to be added or subtracted. 1 CC corresponds to 035 Kodak CC values or 1/8 Rosco filter values. Any reading less than +1.00 or -1.00 and you’re probably not going to need to make any kind of adjustment. The ⊿uv is the value to show how much this light is away from being an ideal light source (black body radiation = incandescent lamp). As with the CC Index you want this number to theoretically be zero. Kelvin is not a linear value, so we need to convert from Kelvin to MK-1 to compare the values of color temperature. To calculate from Kelvin to Mired is MK-1= 1*1000000/Kelvin. While this may sound confusing, it is the only way of measuring if the Kelvin shift is significant enough to warrant having to use a filter for correction. Below are the results for the Aputure when using the F10 Fresnel Attachment at 45°.

When used with the F10 Fresnel Attachment the 600d Pro had an output of 87,500 lx (8130 fc). That was 9.88% less output compared to when the light is used with the Hyper Reflector.

Once you step up in class, usually three things tend to happen. The build quality gets better, which means the size and weight, as well as the price, have to increase. The 600d Pro, F10 Fresnel, and F10 barn doors show me that Aputure has started to take a different direction.

Große Lücke

What you clearly need to remember is that you are going to need an additional case or bag to carry the barndoors in. They don’t fit in the F10 Fresnel case or the 600d Pro’s case.

The Aputure F10 Fresnel Attachment is the latest accessory for the LS 600d Pro. It allows you to turn the COB point source fixture into a Fresnel easily and most importantly, without emptying your wallet.

It has been a while since I reviewed an Aputure product and they have certainly improved since the early Light Storm fixtures. At least, in my opinion, the 600d Pro and the F10 Fresnel are the first Aputure products that I would consider to be suitable for rental houses.

With Rg value, a score below 100 indicates that the light source renders colors with less saturation than the reference source. So ideally you want this score to be above 100.

If you are a solo operator or travelling a lot, the 600d Pro, F10 and the F10 Barndoors may or may not be suitable for you. While the 600d Pro does come in a case, you would then have to additionally carry around the F10 and the F10 Barndoors which could be a potential red flag for some potential users.

Myfactory ist Teil von Forterro, einem Hersteller von Software-Lösungen für mehr als 13.000 kleine und mittelständische Unternehmen in Europa.

If you want to go more mainstream and get your products on larger productions and into more rental houses, you need to make them a lot more robust. As I just mentioned, that is sometimes going to come at the cost of weight and size. I don’t personally mind that the 600d Pro and the F10 and the F10 Barndoors are large and heavy because Aputure has made them a lot more robust than earlier products.

There is a nice secure and solid latching system for attaching the barn doors to the F10. For added safety, there is also a safety latch that you use.

Above you can see that when the light was using the Hyper Reflector recorded an average CRI (R1-R8) of 96.5 and an extended CRI (R1-R15) of 95.32. For replicating accurate skin tones it recorded 93.9 R9 (red), 98.9 for R13 (closest to caucasian skin tones), and 96.2 for R15 (closest to Asian skin tones). These are good results.

The F10 uses a 10″ / 25.4 cm glass Fresnel. This is an industry-standard size for Fresnel glass. This is nice to see, as quite a lot of affordable large-sized LED Fresnel fixtures use acrylic and are not an industry size.

These figures might look confusing, but what it tells me is that the light is exceptionally Kelvin color-accurate when used with the F10 Fresnel. Any MK-1 score that is under -9/9 means you wouldn’t have to use any color correction gels.

Webinar am 26.11.2024, 14:00 Uhr: Effiziente Dokumentenverwaltung mit docuvita - DMS in Myfactory Cloud ERP | Jetzt anmelden

Above you can see that the light remains relatively consistent when used with the Hyper Reflector or the F10 Fresnel, however, the extended CRI scores are higher when using the F10 Fresnel.

Tätigkeitswort 4 Buchstaben

Another benefit to having a 10″ glass Fresnel is that wire kit inserts that worked on HMIs and older Fresnels will work with the F10. The only slight caveat is that it will only fit one.

All measurements were taken from the front of the attachment being used. All measurements were taken with the Sekonic C-800 at the exact same height and offset to where the middle of the light source was. Now, please bear in mind that this light and the F10 Fresnel does create a hot spot, so the readings in the center are going to be around 10% higher than they will off the sides of the beam angle.

Matthew Allard is a multi-award-winning, ACS accredited freelance Director of Photography with over 30 years' of experience working in more than 50 countries around the world. He is the Editor of Newsshooter.com and has been writing on the site since 2010. Matthew has won 51 ACS Awards, including six prestigious Golden Tripods. In 2016 he won the Award for Best Cinematography at the 21st Asian Television Awards. Matthew is available to hire as a DP in Japan or for work anywhere else in the world.

Im Trüben zu fischen ist im Marketing keine Option. Für KMU ist die effiziente und zielgruppengerechte Ansprache von Interessenten und Kunden mehr denn je ein entscheidender Erfolgsfaktor. Das CRM-System bietet dazu alle erforderlichen Werkzeuge:

TM-30 is a relatively new color rendering standard that was developed to deal with the limitations of CRI. TM-30 looks at 99 individual colors. These 99 colors are categorized into seven groups: nature, skin color, textiles, paints, plastics, printed material, and color systems.

Myfactory CRM, das CRM-Tool von Myfactory Cloud ERP, integriert die Unternehmensbereiche Marketing, Vertrieb und Service in einem durchgängigen System. So können kleine und mittelständische Unternehmen ihr Kundenbeziehungsmanagement effizient steuern – und ihre Umsätze steigern.

Yes, by the time you buy the 600d Pro, F10 Fresnel, and the barn doors you are going to be up to $2,248 USD which may sound expensive, however, for what this combination offers I think it is well priced.

The barn doors certainly work a lot better when you are using the F10 Fresnel at 45° or around 30-35°. You can get very clean-edged shadows.

TM-30 scores go from 0 – 100. The higher the score, the more accurate a light is at producing colors. Any TM-30 Rf score in the ’90s is considered to be good. What is interesting and something that you need to be very aware of is that two separate light sources with the exact same CRI scores can render colors very differently. A light with a high CRI rating could have a low TM-30 score. Conversely, a light with a good TM-30 score could have a bad CRI score.

The Aputure F10 Fresnel is well built, well thought out, and most importantly, it adds a lot of versatility if you own a 600d Pro.

If you try using the F10 at 15° with the barndoors you will find that you can’t get a square or straight cut anymore and instead the cut will take on more of an oval appearance.

Just like the actual F10 Fresnel, the barndoors are physically quite large and heavy. The barn doors weigh in at 2.7kg (5.95 lb). They are around 40.5cm (15.94″) wide by 33cm (12.99″) high.

Now, I had to do this measurement at a distance of 3m (9.84ft) as the Sekonic C-800 only measures up to 200,000 lx and at a distance of 1m the reading was way over that.

Ein Kinderspiel Kreuzworträtsel

I highly recommend the F10 Fresnel. It is the first affordable COB LED Fresnel attachment that I actually think works well enough to be compared against HMI fixtures.

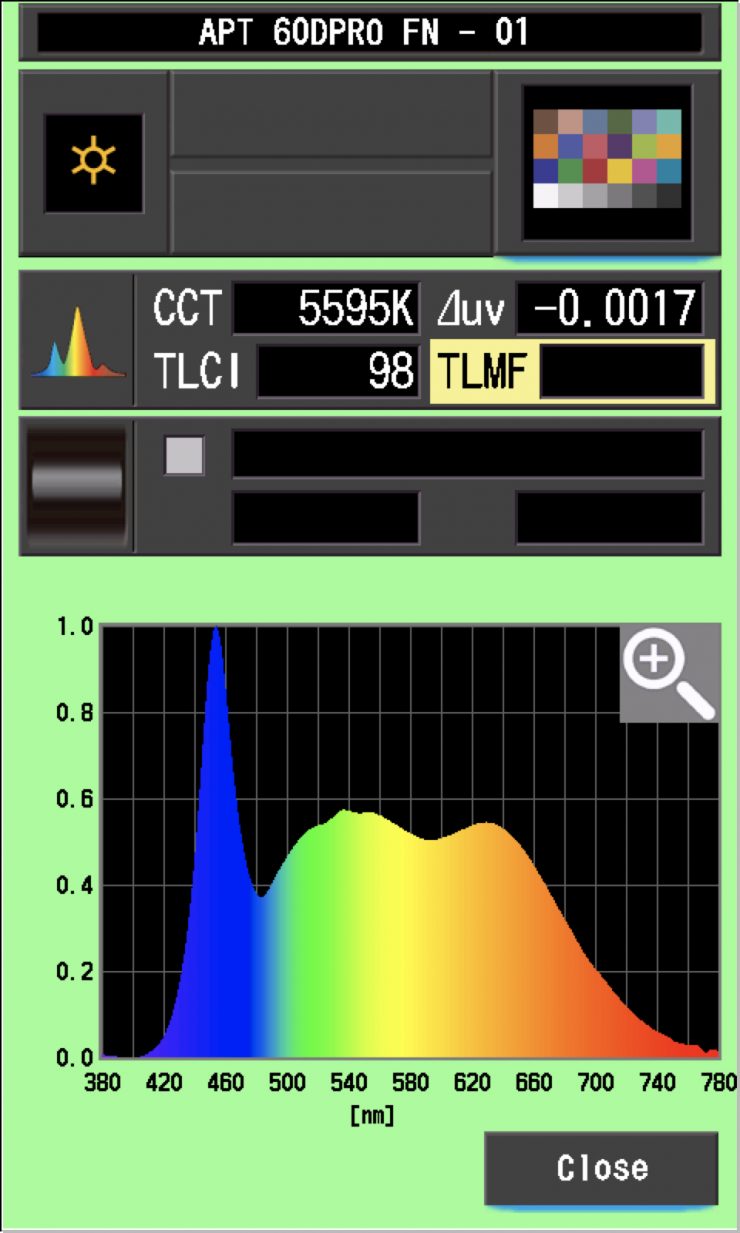

Used with the F10 Fresnel Attachment the light produced a Kelvin color temperature of 5595K, which was was a lot more accurate than when the fixture was used with the Hyper Reflector. This tells me that F10 Fresnel Attachment actually gives you the most Kelvin color temperature accurate way of using the 600d Pro.
