Bulk poly(S-r-BTT) copolymers were readily prepared into windows with a diameter of 25 mm and a thickness of about 1 mm by hot-pressing at 185 °C and 20 MPa (see Supplementary information for details). Despite the highly cross-linked structure of the poly(S-r-BTT) copolymers with high thermal properties, the presence of large quantities of dynamic S–S bonds allowed their easy and fast processing.

Materials transparent to infraredlight

Sang, P. et al. Polyphenyl polysulfide: a new polymer cathode material for Li–S batteries. Chem. Commun. 55, 4857–4860 (2019).

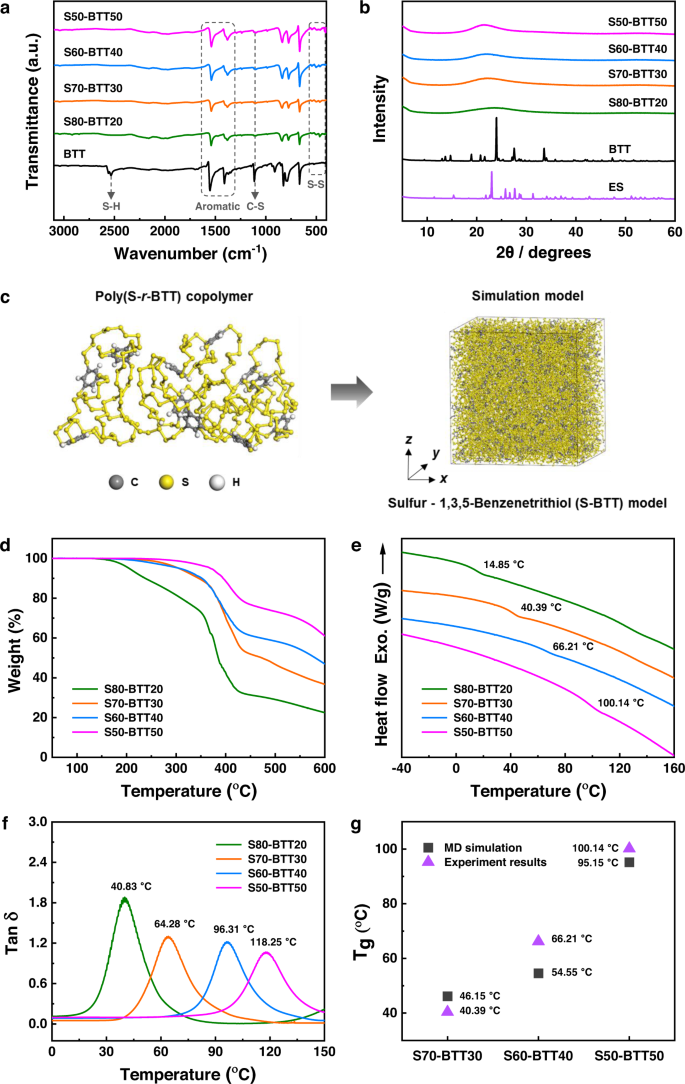

a ATR-FT-IR spectra of 1,3,5-benzenetrithiol (BTT) and poly(S-r-BTT) copolymers. b XRD spectra of elemental sulfur (ES), BTT and poly(S-r-BTT) copolymers. c The poly(S-r-BTT) copolymer and the Sulfur-BTT simulation model. d TGA curves. e DSC curves indicating the glass transition temperatures (Tg). f Plot of tan δ indicating the Tg. g Comparison of the MD simulation and experimental results (determined by DSC curves) of the Tg.

We have explained that the structure of the poly(S-r-BTT) copolymers consisted only of an aromatic ring and S–S bonds. These structural features of the poly(S-r-BTT) copolymers were positive for IR transmittance as well as RI values. Elemental analyses of the sulfur copolymers were then carried out. The results showed the poly(S-r-BTT) copolymers had relatively high sulfur (S) content and low carbon (C) and hydrogen (H) content. Furthermore, the S50-BTT50 with the highest BTT feed ratio showed lower carbon content and higher sulfur content than S70-DIB30 and S70-DVB30 (Supplementary Fig. 43 and Supplementary Table 10). These results further indicate the structural features of the poly(S-r-BTT) copolymers are composed of numerous S–S chains centered on an aromatic ring.

Prediction of IR spectra and refractive indices by DFT calculation. We used two established kinds of model compounds, M1 and M2, which are linear and cross-linked structures, and their optimized structures at ground states by calculating at the B3LYP level with a 6–31G basis set using the software package Gaussian 09D33. With the optimized structures, frequency calculations were carried out at the same level, and the obtained molar absorption coefficient using the frequency in the IR area was converted to the IR absorption spectra with peak half-width at half height 4 cm−1. Then, it was possible to calculate the target IR spectra by converting them to transmittance. In addition, the refractive indices were calculated based on the following Lorentz–Lorenz’s equation28.

Liu, J. et al. High refractive index polymers: fundamental research and practical applications. J. Mater. Chem. 19, 8907–8919 (2009).

Infrared (IR) thermal imaging is used to detect and visualize the energy (heat) naturally radiated from an object, and is widely employed in important systems to identify and analyze targets when visible light is nearly or completely absent1. The detectable IR wavelength band is determined by the temperature range of the target object. The mid−wave infrared (MWIR) region, which is a high temperature range (>500 K), is mainly observed for military purposes, and the long−wave infrared (LWIR) region, with infrared light corresponding to 300 K (≈10 μm), is maximally emitted and closely related to applications in normal life2. There has recently been growing demand for high-performance optics elements in general industry, medical care, security, and firefighting, among other fields. LWIR transparent polymers have emerged as promising candidate materials for advanced IR optical technology3.
