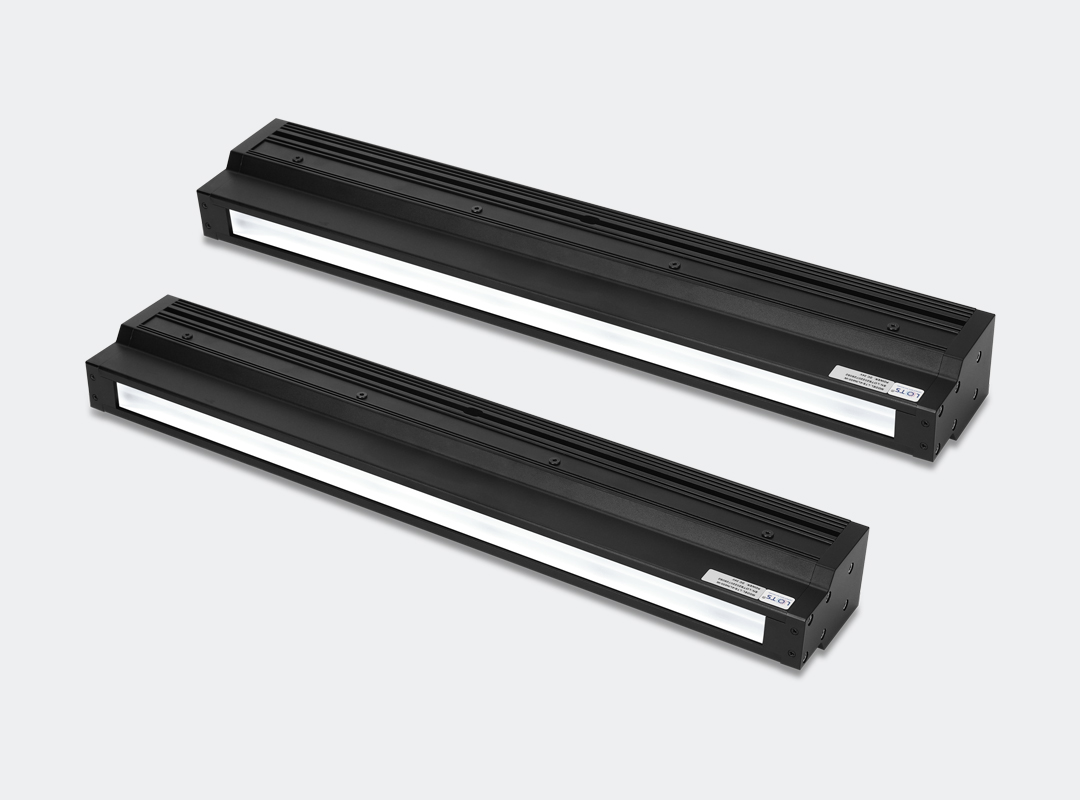

Oblique optical design, the light is emitted at a 20° angle. The oblique line scan light is suitable for line scan system to detect wrinkles and scratches.

Application:
1.Textile fabric inspection for wrinkles
2.Carton inspection for loose threads
3.Film inspection for vertical wrinkles

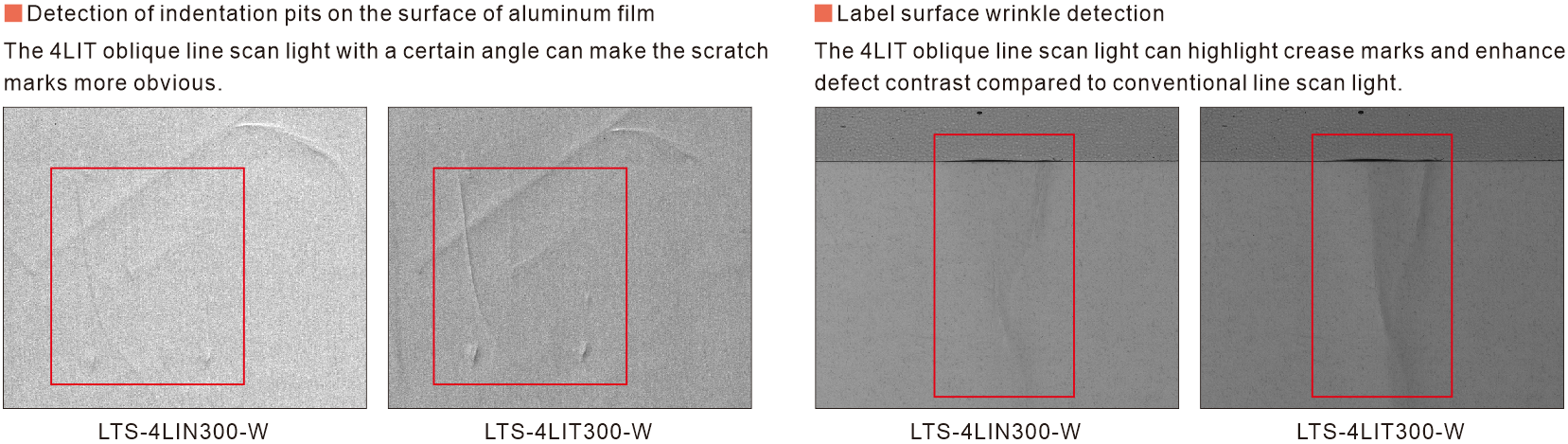

Effect comparison chart

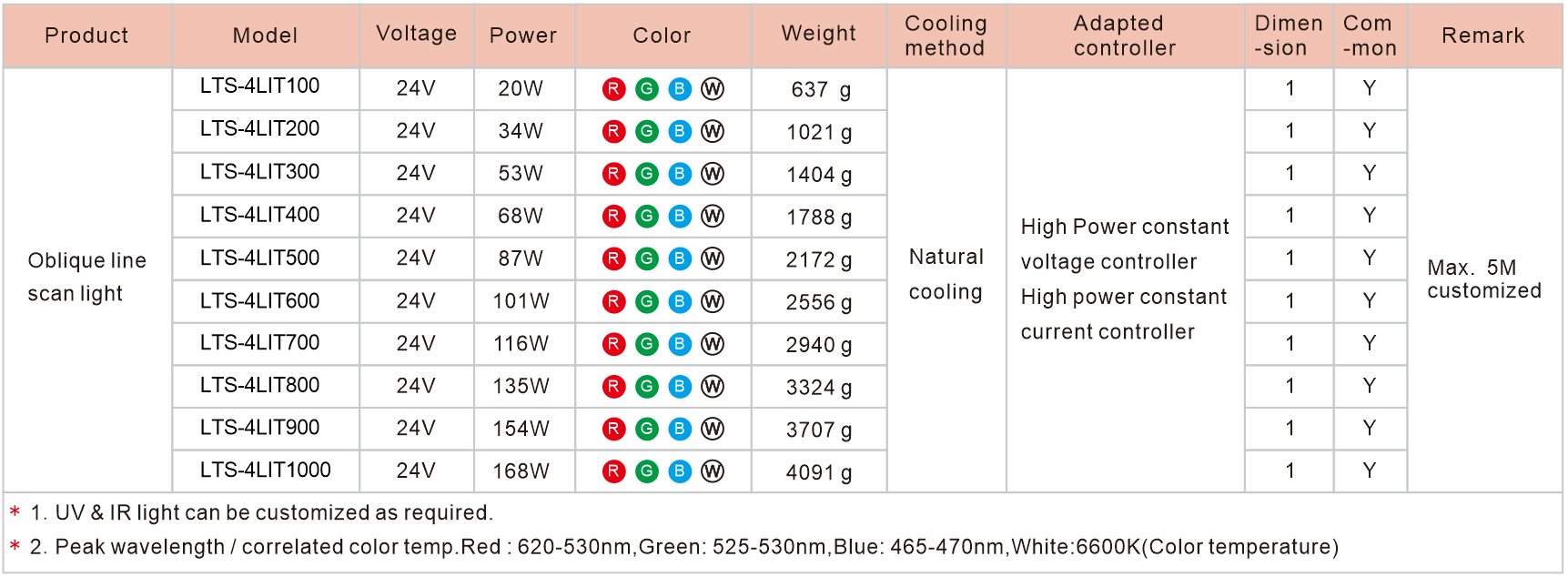

Light Parameters

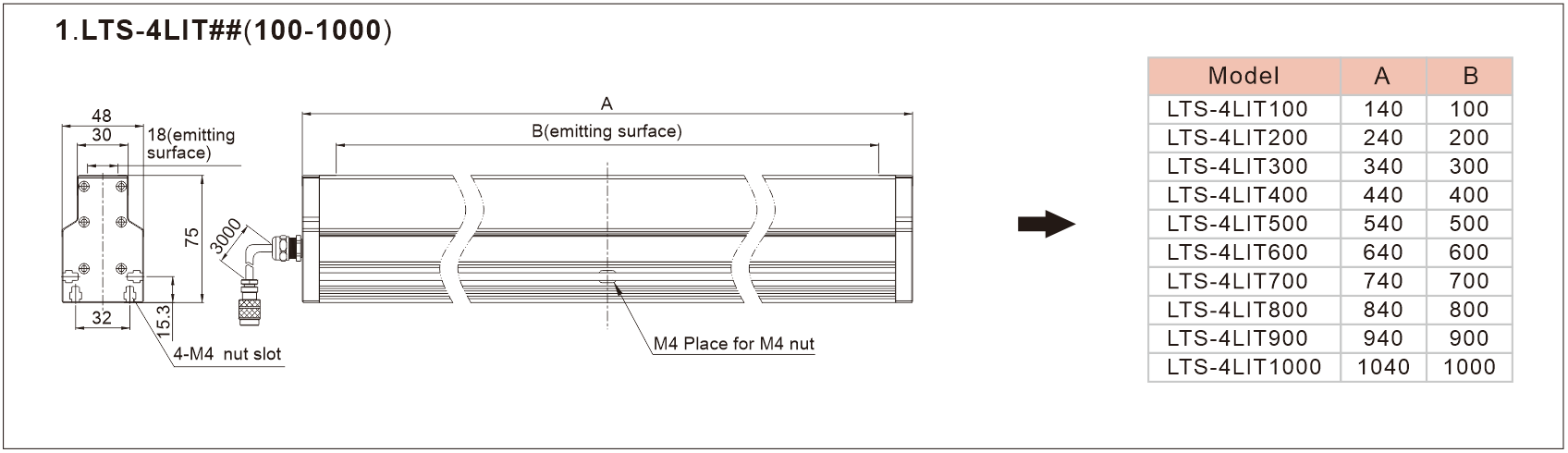

Boundary dimension (mm)
