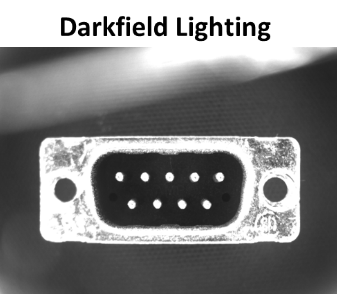

The images below, (Image 8A) and (Image 8B), were used for an application that requires counting the pins of a connector. As you can see, the bright field lighting on the left does not produce a clear image, but the dark field lighting on the right does.

SmartVisionLights distributor

Lumencor's light engines are unique, solid state illuminators, ideally suited for use with fluorescence microscopes and bioanalytical instruments.

18 Inch LED Ringlight Kit with 73 inch Tripod Stand with Phone Holder Adjustable 3200-6000k Color Temperature Circle MUA Lighting for Camera

Machine vision lightingcontroller

Analytics and diagnostics are crucial for predictive maintenance, enhancing equipment effectiveness, and monitoring machine condition

The key to deploying a robust machine vision application in a factory automation setting is ensuring you create the environment for a stable image. The three areas you must focus on to ensure image stability are lighting, lensing, and material handling. For this blog, I will focus on the seven main lighting techniques used in machine vision applications.

In order to add a free sample product to the cart we will need to remove all the normal products from the cart. Are you sure you want to continue

F Vatansever · 2012 · 405 — Far infrared (FIR) radiation (λ = 3–100 μm) is a subdivision of the electromagnetic spectrum that has been investigated for biological effects.

SmartvisionLights

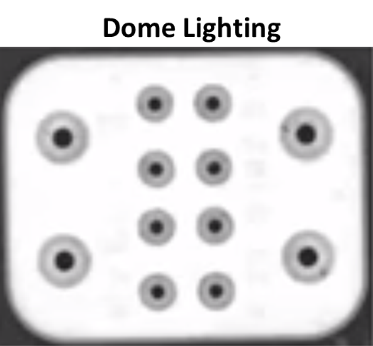

This example (Image 10A), (Image 10B), and (Image 10C) highlight different lighting techniques on the same object. In the (Image 10A) image, backlighting is used to measure the smaller hole diameter. In the image (Image 10B), dome lighting is used to inspect the upper hole's taper in reference to the lower hole. In (Image 10C) dark field lighting is used for optical character recognition “OCR” on the object. Each of these could be viewed as positive or negative, depending on your goal.

This next example (Image 9A) and (Image 9B) was for an application requiring a bar code read through a cellophane wrapper. The unclear image (Image 9A) was acquired using an on-axis ring light, while dome lighting (Image 9B) resulted in a clear, easy-to-read image of the bar code.

Machine vision lightingled

Diffused on-axis lighting, or DOAL, works by having a LED light source pointed at a beam splitter. The reflected light is then parallel with the direction in which the camera is mounted (Image 6A). DOAL lighting should only be used on flat surfaces where you are trying to diminish very shiny parts of the surface to create a uniform image. Applications like DVD, CD, or silicon wafer inspection are some of the most common uses for this type of lighting.

Prism is a homogeneous transparent refracting medium bounded by at least two non-parallel surfaces inclined at some angle. Dispersion of white light by a Glass ...

Machine visionBacklight

Machine vision lightingapp

Structured laser line lighting works by projecting a laser line onto a three-dimensional object (Image 7A), resulting in an image that gives information on the object's height. Depending on the mounting angle of the camera and laser line transmitter, the resulting laser line shift will be larger or smaller as you change the angle of the devices (Image 7B). When there is no object, the laser line will be flat (Image 7C).

Diffused dome lighting, aka the salad bowl light, works by having a hole at the top of the salad bowl where the camera is mounted and the LEDs are mounted down at the rim of the salad bowl, pointing straight up, which causes the light to reflect off of the curved surface of the salad bowl. It creates a very uniform reflection (Image 5A).  Diffused dome lighting is used when the object you are inspecting is curved or non-uniform (Image 5B). After applying this lighting technique to an uneven surface or texture, hotspots, and other sharp details are deemphasized, creating a matte finish to the image (Image 5C).

Trinova® Pet Urine Detector UV Light is the fastest way to find those invisible pet stains that stink up your house! This UV light is ...

Fiber optic lighting uses optical fiber as a light pipe, transmitting light from a source through the fiber to a remote location.

All content on this website, including dictionary, thesaurus, literature, geography, and other reference data is for informational purposes only. This information should not be considered complete, up to date, and is not intended to be used in place of a visit, consultation, or advice of a legal, medical, or any other professional.

Vision code readers provide fast read rates, detect codes from multiple directions, read multiple codes simultaneously, and store extensive information

RITE-LOKTM UV curing adhesives are high performance, single component products which polymerise when exposed to ultraviolet light.

Machine vision lightingwebsite

59% OFF. New Arrival. 0.75MM 8858ft(2700m)/roll Diameter 0.03in(0.75mm) PMMA Plastic End Glow Optical Fiber Light Cable for LED Fiber Optic Star Ceiling Light ...

Bestmachine vision lighting

On-axis ring lighting is the most common type of lighting because, in many cases, it is integrated on the camera and available as one part number. When using this type of lighting, you almost always want to be a few degrees off perpendicular (Image 1A).  If you are perpendicular to the object, you will get hot spots in the image (Image 1B), which is undesirable. When the camera with its ring light is tilted slightly off perpendicular you achieve the desired image (Image 1C).

UV STERILIZER · Product · How It Works · ➤ · ➤ · The ultraviolet light sanitizer emits a germicidal ray which alters or disrupts the DNA or RNA of single celled ...

Off-axis bright field lighting works by having a separate LED source mounted at about 15 degrees off perpendicular and having the camera mounted perpendicular to the surface (Image 2A). This lighting technique works best on mostly flat surfaces. The main surface or field will be bright, and the holes or indentations will be dark (Image 2B).

Get powerful ultraviolet lighting with the UV Flood 36 Black Light. Featuring 12 x 3W UV LEDs, DMX control, and wide 57-degree beam angle.

Smart cameras and industrial cameras and the two distinct approaches in machine vision that vary in solutions and price ranges

Backlighting works by having the camera pointed directly at the backlight in a perpendicular mount. The object you are inspecting is positioned between the camera and the backlight (Image 4A). This lighting technique is the most robust because it creates a black target on a white background (Image 4B).

Dark field lighting is required to be very close to the part, usually within an inch. The mounting angle of the dark field LEDs needs to be at least 45 degrees or more to create the desired effect (Image 3A).  In short, it has the opposite effect of Bright Field lighting, meaning the surface or field is dark, and the indentations or bumps will be much brighter (Image 3B).
