This path light's throw appears in the drawing as a circle depicting a path light projecting light symmetrically, 360 degrees around itself, onto the ground.

Although we offer the ability to call out lighting features individually, many designers prefer using the Lighting Schedule to show the various lights used in a plan.

When editing a transformer or electric panel you've already wired to other components, note that the dialog box will show which output taps (for transformers) or branch breakers (for panels) are already connected.

7. The maximum amps this panel can supply, or the main breaker rating. Note that the output voltage you see here is not the panel's maximum voltage. It’s the input voltage multiplied by the fluctuation slider value.

9. Thumbnail image for the photo currently assigned to the generic component. Click here to browse to and select a new photo. You'll be able to place the photo in your drawing using our Photo Callout tool.

Our updated landscape lighting functionality took home first prize in the New Product Contest, Landscape Lighting category, at Irrigation Show 2019, put on by the Irrigation Association (IA).

Our software tailors AutoCAD® to the needs of landscape architects, irrigation designers, and other professionals. We automate your most tedious tasks and ensure accuracy, giving you more time to design.

You can now make changes to the component you selected. You'll see a slightly different dialog box when editing each type of lighting equipment (examples pictured below).

You can also use our Photo Callout tool to label lights with their respective photos. For more information, see our Photo Callout page.

Issue: Outside Limits error message in the Command line / you are unable to place lighting equipment / can't see lighting equipment in Model Space

The following steps also apply to importing equipment from regular Land F/X projects. However, we recommend setting up and importing from a template – mainly because templates are set up to be read-only. This means you can rest assured that the data in your templates hasn't changed when you import your equipment into a project.

6. The maximum amps and watts that will apply to the transformer. The maximum amperage value here refers to the low-voltage (output) side of the transformer.

When you click Place with a wire selected in the Lighting Manager, the cursor will turn into a pickbox, and you can begin wiring your fixtures.

5. Click this link to visit the selected manufacturer's website, browse the manufacturer's catalog, and learn more about the manufacturer.

Our lighting module is now compatible with IES files. These files, available from fixture manufacturers, contain a digital profile of a light’s photometrics – a mapping of light distribution.

If you've added a manufacturer's transformer, you won't be able to add to, edit, or delete the tap voltages set by the manufacturer.

When placing wire, you'll simply connect the dots between your power source and all your fixtures and other equipment – just like how you would pipe between irrigation equipment when using our irrigation tools.

Fergusonlighting

You can place a schedule of lighting equipment you've used in your project within either Model Space or a Paper Space Layout Tab by opening the Lighting Manager and clicking Schedule.

Only some of the light fixtures in our collection have manufacture-provided IES files, so not all fixtures will show up with a throw.

Top 5 Must-Have Spa Accessories for the Perfect Relaxation. Are you looking to take your spa experience to the next level? Loo …

If you click one of the thumbnail images for a component, you'll see a dialog box specifically for that component, where you can configure a number of options including materials, lamp options, finishes, and more.

Our 3D Connection makes it possible to send your designs from CAD to 3D (SketchUp, Rhino, and Revit) and back again. And now it's compatible with lighting equipment. For more information on sending your lighting plans between CAD and SketchUp, Revit, or Rhino, see our 3D Connection documentation.

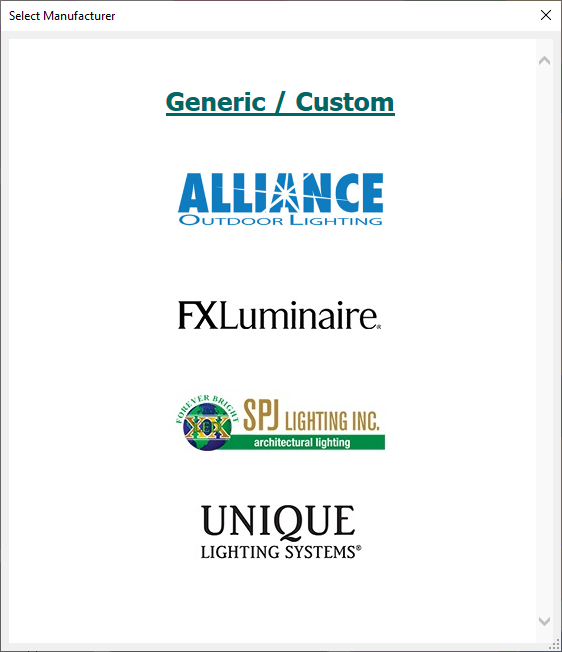

Select an auxiliary equipment manufacturer, or click Generic/Custom to add your own custom equipment, or equipment not offered by a Land F/X partner manufacturer.

8. Each of these fields represents one of the branch breakers you'll assign to the panel, with each field listing the amperage of the corresponding breaker. These fields default to the numbers you see here, but they're also completely customizable. You can:

9. To locate a placed lighting component in your drawing, select it from the menu and click Highlight. You’ll be taken right to that component in your drawing.

If you clicked Generic/Custom when adding new auxiliary eqipment, you'll see a dialog box where you can select a symbol for the equipment you're adding. Click OK after selecting the symbol.

1. The wire will be assigned to our default layer for wire automatically. Click this button to move drawn wire to the layer of your choice.

With manufacturer IES data and 3D support, you can take your lighting fixtures into SketchUp and, through a light-rendering add-on, see how the light can interact with the surrounding site after installation.

Dialog box for editing a light fixture – note the Reconfigure button, which allows you to select different configuration options.

If a light fixture has a manufacturer-provided IES file associated with it, a preview of its light throw will appear on the plan along with the symbol.

9. Thumbnail image for the photo currently assigned to the selected component. Click here to browse to and select a new photo. You'll be able to place the photo in your drawing using our Photo Callout tool.

Lightingstores

We offer a dedicated tool for adding and placing lighting equipment in CAD. Use our Lighting Manager to specify and place specific types and brands of lights, then create a lighting schedule to show costs, wattage, and other details.

When selecting fixtures and lamps, you may encounter a specification called color temperature. Wondering what color temperature is all about? Check out the Power Tip video linked to the right, where we go over the meaning of color temperature in the context of landscape lighting design, explain the color temperature scale, show how to factor color temperature into your design effectively, and discuss the role (or lack thereof) played by color temperature in wildlife-safe lighting.

Want to customize the lighting symbols? You can edit our default symbols or add your own custom symbols to our library. More information

If it’s what I think it is, try duplicating your layer (if you only have one) OR adding an adjustment layer to the top (if you have multiple layers).

Sign up for the Creative COW Newsletter! Get weekly updates on industry news, forum highlights, jobs, inspirational tutorials, tips, burning questions, and more! Receive bulletins from the largest, longest-running community dedicated to supporting professionals working in film, video, and audio.

When wiring to a panel or transformer, you'll see a dialog box showing all the branch breakers (for panels) or output taps (for transformers). Select a connection and click OK.

Lighting FXAssetto Corsa

You can use our Reference Note Callout tool to label your lighting fixtures, wires, and equipment. For more information and instructions, see our article on labeling your lighting plan.

4. The photo assigned to a selected component will appear here. You'll be able to place the photo in your drawing using our Photo Callout tool.

Note that when you've already wired to a panel or transformer, the branch breaker or voltage tap that's already wired will show up as dark, as pictured t to the right. Select any of the other connections for wiring the new circuit.

3. This list shows all equipment types available from the manufacturer in our database. Click an equipment type to select it.

20" RGB-W light bar features with driving beam pattern and 12160 lumens. Select from 7 different backlight colors (white, blue, green, red, purple, cyan, ...

If you find yourself adding the same equipment to multiple projects, we recommend setting up a project template and then adding your commonly used equipment to that template. You can then import those items into a new project from that template. This practice can save you immeasurable amounts of time, considering all the data you need to fill out for each component you add to a project. With templates, you only need to add and configure your equipment once, then simply import them and attached data into the present project.

If you've already wired to any of the connections on that panel or transformer, you'll see which connection(s) are already wired.

Issue: Error Message when placing lighting equipment: Lighting – Non-photometric lights: Non-photometric lights are not supported by the current render engine

Lightingefx

If necessary, you can edit any panel or generic/custom transformer to add or make changes to these connections. Manufacturers' transformers will have their number of voltage taps, and the voltages for each of those taps, already set from the factory.

The New Light Fixture dialog box will open. Here, you can access the lighting equipment available from the selected manufacturer in our database.
